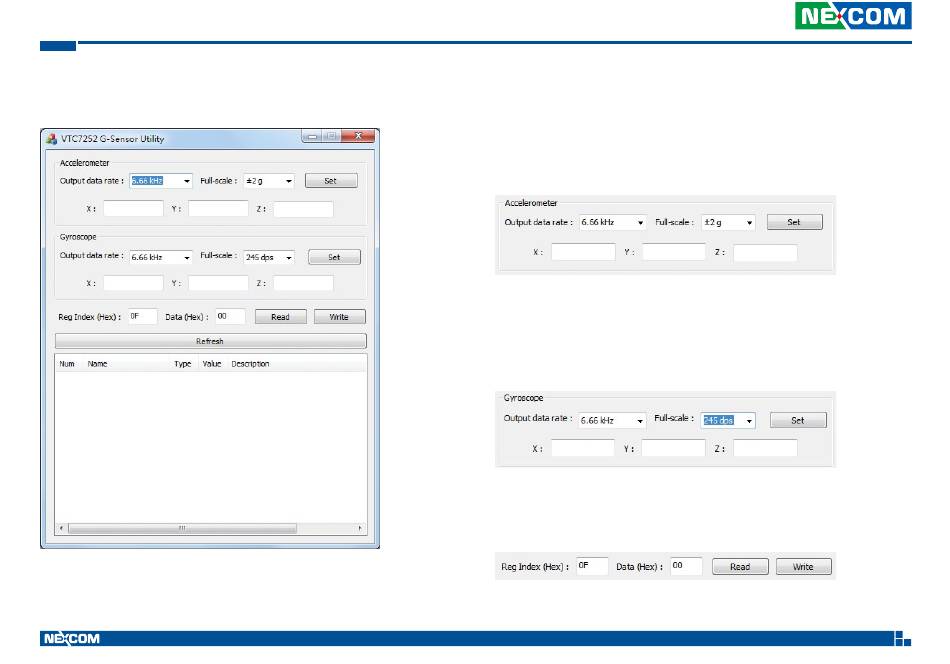

8. G-Sensor

8.1 Accelerometer

Acceleration range and linear acceleration output data rate can be selected

by pressing the Set button.

X-Axis data, Y-Axis data and Z-Axis data can be retrieved by pressing the

Set button.

8.2 Gyroscope

Acceleration range and angular rate range can be selected by pressing the

Set button.

X-Axis data, Y-Axis data and Z-Axis data can be get by pressing the Set button.

8.3 Sensor Register Index

Selects the registers inside the sensor to read or write the data.
