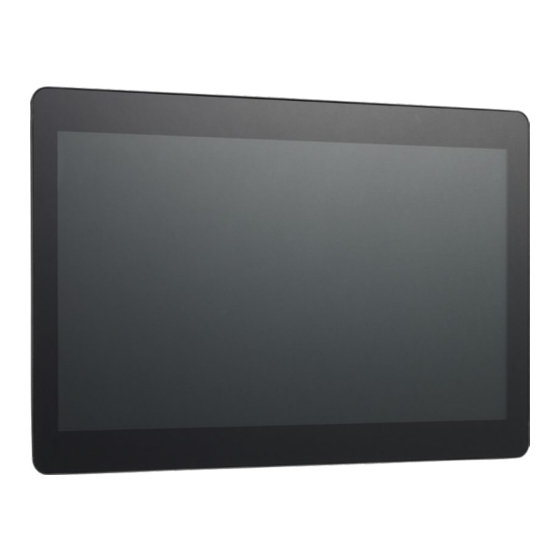

Wide screen touch computer

Advertisement

Quick Links

NEXCOM International Co., Ltd.
Intelligent Platform & Services Business Unit
Wide Screen Touch Computer
XPPC 16-101
User Manual
NEXCOM International Co., Ltd.
Published April 2022
www.nexcom.com

Advertisement

Table of Contents
loading

Summary of Contents for Nexcom XPPC 16-101

  • Page 1 NEXCOM International Co., Ltd. Intelligent Platform & Services Business Unit Wide Screen Touch Computer XPPC 16-101 User Manual NEXCOM International Co., Ltd. www.nexcom.com Published April 2022...
  • Page 2: Table Of Contents

    Disclaimer ....................iv Precautions ....................6 Acknowledgements ................iv Jumper Settings ..................7 Regulatory Compliance Statements ............iv Locations of the Jumpers and Connectors for XPPC 16-101 ....8 Declaration of Conformity ..............iv Top View .....................8 RoHS Compliance ................... v Bottom View ..................9 Warranty and RMA ................
  • Page 3 Default Configuration ................27 Entering Setup ..................27 Legends ....................27 BIOS Setup Utility ..................29 Main ....................29 Advanced ..................30 Chipset ....................39 Security .....................42 Boot ....................43 Save & Exit ..................44 Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 4: Preface

    No describes how to keep the system CE compliant. part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM Declaration of Conformity International Co., Ltd.
  • Page 5: Rohs Compliance

    (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm. In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products.
  • Page 6: Warranty And Rma

    “NEXCOM RMA Service Form” for the RMA number apply process. ▪ If RMA goods can not be repaired, NEXCOM will return it to the customer without any charge. ▪ Customers can send back the faulty products with or without accessories (manuals, cable, etc.) and any components from the card, such as CPU...
  • Page 7 ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 8: Safety Information

    There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. viii Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 9: Safety Precautions

    CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. 10. All cautions and warnings on the equipment should be noted. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 10: Technical Support And Assistance

    Preface Technical Support and Assistance Conventions Used in this Manual 1. For the most updated information of NEXCOM products, visit NEXCOM’s Warning: website at www.nexcom.com. Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself 2.
  • Page 11: Global Service Contact Information

    Tel: +886-2-8226-7786 Tel: +886-2-8976-3077 Beitun District, Fax: +886-2-8226-7782 Email: sales@diviotec.com Taichung City, 406, Taiwan, R.O.C. Email: services@tmrtek.com www.diviotec.com Tel: +886-4-2249-1179 www.tmrtek.com Fax: +886-4-2249-1172 Email: jacobhuang@nexaiot.com www.nexaiot.com Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 12 9F, Tamachi Hara Bldg., LongGang District, 4-11-5, Shiba Minato-ku, ShenZhen, 518112, China Tokyo, 108-0014, Japan Tel: +86-755-8364-7768 Tel: +81-3-5419-7830 Fax: +86-755-8364-7738 Fax: +81-3-5419-7832 Email: steveyang@nexcom.com.tw Email: sales@nexcom-jp.com www.nexcom.cn www.nexcom-jp.com Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 13: Package Contents

    Preface Package Contents Before continuing, verify that the XPPC 16-101 package that you received is complete. Your package should have all the items listed in the following table. Item Part Number Name 10W30XPPC23X0 XPPC 16-101 System 15.6”FHD Panel PC, P-CAP...
  • Page 14: Ordering Information

    Preface Ordering Information The following below provides ordering information for XPPC 16-101. XPPC 16-101 (P/N: 10W30XPPC23X0) 15.6” FHD LED P-Cap panel PC, Intel Celeron J3455 ® ® Panel Mount Kit (P/N: 88W30XPPC04X0) Open Frame Kit (P/N: 88W30XPPC05X0) Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
  • Page 15: Xppc 16-101

    Celeron processor J3455, 2.30 GHz ® ® ▪ 1 x DDR3L up to 8GB, M.2 M-Key 2242 for storage device ▪ Support power input 19 VDC Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 16: Hardware Specifications

    – 2Grms @ sine, 5~500Hz, 1hr/axis Expansion – 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating) ▪ 1 x mini-PCIe full-size connector with SIM slot (nano size) onboard, supports Wi-Fi/LTE module Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 17 Certification ▪ CE (EN55035 + EN55032) ▪ FCC Class A (EMI part 15B) ▪ LVD (EN62368-1) Operating System Support ▪ Windows 10 64-bit ▪ Linux 4.1 Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 18: Knowing Your Xppc 16-101

    USB 3.0 Line-out DC Input Used to connect an HDMI interface monitor. COM1 Power LAN1 & LAN2 HDMI Line-out Used to connect a headphone or a speaker. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 19: Mechanical Dimensions

    Chapter 1: Product Introduction Mechanical Dimensions 368.9 (MOUNTING LINE) 237.85 51.79 382.2 345.43 (V/A) 18.2 VESA MOUNT_M4-NUT 370.5 CUT OUT SIZE T=9.5mm ( MAX) Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 20: Chapter 2: Jumpers And Connectors

    Static electricity can damage many of the electronic ▪ Use correct screws and do not over tighten screws. components. Humid environments tend to have less static electricity than Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 21: Jumper Settings

    (on) and open (off). Two-Pin Jumpers: Open (Left) and Short (Right) Three-Pin Jumpers: Pins 1 and 2 are Short Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 22: Locations Of The Jumpers And Connectors For Xppc 16-101

    Chapter 2: Jumpers and Connectors Locations of the Jumpers and Connectors for XPPC 16-101 The figure below is the top and bottom view of the mainboard used in XPPC 16-101. It shows the locations of the jumpers and connectors. Top View LVDS_PWR...
  • Page 23: Bottom View

    Chapter 2: Jumpers and Connectors Bottom View DIMM Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 24: Jumpers & Dip Switches

    Connector location: CLRTC Settings Settings 1-2 On ATX Mode 1-2 On Normal 2-3 On AT Mode 2-3 On Clear CMOS 1-2 On: default 1-2 On: default Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 25: Lvds Panel Voltage Select

    Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: LVDS_PWR Connector location: LVDS_DIS Settings Settings 1-2 On 3.3V 1-2 On Enable 2-3 On 2-3 On Disable 1-2 On: default 1-2 On: default Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 26: Lvds Resolution Select

    1680 x 1050 8-bit Dual Port 1101 1600 x 1200 8-bit Dual Port 1110 1920 x 1080 8-bit Dual Port 1111 1920 x 1200 8-bit Dual Port Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 27: Connector Pin Definitions

    COM2 DB9 Male Connector Connector type: DB-9 port, 9-pin D-Sub Connector type: DB-9 port, 9-pin D-Sub Connector location: COM1 Connector location: COM2 Definition Definition Definition Definition Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 28: Connector Pin Definitions

    Connector type: 1x2 2-pin header, 2.54mm pitch Connector type: 2x3 6-pin header JST, 2.54mm pitch Connector location: RESET Connector location: INV Definition Definition Definition RESET# INV_ENABKL BKLTCTRL_V Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 29: Power Led Connector

    Connector type: 1x3 3-pin header, 2.0mm pitch Connector type: 2x4 8-pin header, 1.27mm pitch Connector location: LED_CON Connector location: SPI Definition Definition Definition POWER_LED +1.8V_SPI SPI_CS0#_F STBY_LED_8 SPI_HOLD# SPI_SO_F SPI_CLK_F SPI_D2_WP# SPI_SI_F Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 30: Usb2.0 Connector

    Connector type: 2x3 6-pin header, 2.0mm pitch Connector location: USB2_2 Connector location: SIM1 Definition Definition Definition Definition S_USB2DN5 UIM_DATA_R UIM_CLK_R S_USB2DP5 S_USB2DN4 UIM_VPP_R UIM_RESET_R S_USB2DP4 +5V_USB2_P45 UIM_PWR_R Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 31: Gpio Connector

    Connector type: 1x9 9-pin header, 1.0mm pitch Connector location: GPIO Connector location: MIC_LOUT Definition Definition Definition Definition GPIO_PWR GPO_GND A_LOUT_R LINEOUT_JD GPO0_OUT GPI0_IN A_LOUT_L GPO1_OUT GPI1_IN A_MIC1_R MIC_JD A_MIC1_L Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 32: Speaker Connector

    Connector type: 1x4 4-pin header, 1.25mm pitch Connector type: 1x4 4-pin header Connector location: SPK Connector location: FAN Definition Definition Definition Definition LOUTP_40 LOUTN_40 ROUTP_40 ROUTN_40 FANIN FANOUT Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 33: Debug Port/Lpc Bus Connector

    Connector type: 2x3 6-pin, 2.00mm pitch Connector location: NXM_DEBUG Connector location: COM2_RI Definition Definition Definition Definition SERIRQ RI_COMPORT LAD0 LAD1 RI_COMPORT LAD2 LAD3 RI_COMPORT LFRAME# 25MHZ PLTRST# Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 34: Battery Connector

    DC Power Input Connector type: 1x2 2-pin header, 1.25mm pitch Connector type: 1x2 2-pin header, 3.96mm pitch Connector location: BATTERY1 Connector location: CON1 Definition Definition +DC_IN Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 35: Lvds Panel Connector

    +V_PANEL (3.3V or 5V) +V_PANEL (3.3V or 5V) +V_PANEL (3.3V or 5V) +V_PANEL (3.3V or 5V) LVDS0_CLK+ LVDS0_CLK- Backlight Enable Backlight Control LVDS1_CLK+ LVDS1_CLK- +12V +12V +12V +12V Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 36: Edp Panel Connector

    Back Light Enable EDP_1N EDP_1P Back Light PWM EDP_0N +12V EDP_0P +12V +12V +12V +V_PANEL (3.3V or 5V) +V_PANEL (3.3V or 5V) +V_PANEL (3.3V or 5V) EDP_AUXP Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 37: Mini-Pcie Connector

    WAKE# +3VSB +1.5V SMB_CLK +1.5V PETn0 SMB_DATA SIM_PWR PETp0 SIM_DATA USB_D- REFCLK- SIM_CLK USB_D+ REFCLK+ SIM_RESET +3VSB SIM_VPP +3VSB WLAN_DISABLE# RESET# +1.5V PERn0 +3VSB PERp0 +3VSB Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 38: Connector (M-Key)

    M.2 Connector (M-Key) Connector location: M2M Definition Definition Definition Definition +3VSB +3VSB SATA_RXP SATA_RXN M2M_LED# SATA_TXN +3VSB SATA_TXP RESET# +3VSB +3VSB +3VSB +3VSB +3VSB +3VSB DEVSLP Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 39: Block Diagram

    Port 4/5 16MB Debug conn Super I/O NCT6793D External Connector DC Jack COM2 WatchDog Internal Connector GPIO F81439 HW Monitor screw type (RS232) Timer (+12V) COM1 (RS232/422/485) Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 40: Chapter 3: Bios Setup

    This chapter describes how to use the BIOS setup program for XPPC 16-101. The settings made in the setup program affect how the computer performs. The BIOS screens provided in this chapter are for reference only and may It is important, therefore, first to try to understand all the setup options, and change if the BIOS is updated in the future.
  • Page 41: Default Configuration

    Powering on the computer and immediately pressing <Del> allows you to enter Setup. Load optimized default values. Press the key to enter Setup: Saves and exits the Setup program. Press <Enter> to enter the highlighted sub-menu Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 42 When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 43: Bios Setup Utility

    F2: Previous Values System Date [Thu 06/10/2021] F3: Optimized Defaults System Time [01:12:00] F4: Save & Exit ESC: Exit Version 2.18.1263. Copyright (C) 2021 American Megatrends, Inc. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 44: Advanced

    ESC: Exit Version 2.18.1263. Copyright (C) 2021 American Megatrends, Inc. Restore AC Power Loss Configures the power state when power is re-applied after a power failure. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 45 Select the highest ACPI sleep state the system will enter when the suspend button is pressed. The options are Suspend Disabled and S3 (Suspend to RAM). Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 46 Displays the IO address and IRQ of the serial COM port. Onboard Serial Port Mode Select this to change the serial port mode to RS232, RS422, RS485 No Terminator or RS485 With Terminator. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 47 Detects and displays the current system temperature. CPU Fan Speed Detects and displays the current CPU fan speed. VCORE to 1.35VDUAL Detects and displays the output voltages. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 48 When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. VT-d Enables or disables VT-d function on MCH. P-State Coordination Change P-STATE Coordination type (HW_ALL, SW_ALL, SW_ANY) Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 49 F4: Save & Exit ESC: Exit Version 2.18.1263. Copyright (C) 2021 American Megatrends, Inc. Version 2.18.1263. Copyright (C) 2021 American Megatrends, Inc. EIST Enables or disables Intel ® SpeedStep. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 50 Ipv4 PXE Support Enables or disables IPv4 PXE support. If disabled, the IPv4 boot option will not be created. Ipv4 HTTP Support Enables or disables IPv4 HTTP support. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 51 XHCI ownership change should be claimed by the XHCI driver. USB Mass Storage Driver Support Enables or disables USB mass storage driver support. USB transfer time-out The time-out value for control, bulk, and Interrupt transfers. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 52 Maximum time the value will take before it properly reports itself to the Host Controller. “Auto” uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 53: Chipset

    Version 2.18.1263. Copyright (C) 2021 American Megatrends, Inc. SMBus Support Version 2.18.1263. Copyright (C) 2021 American Megatrends, Inc. Enables or disables SMBus support. Setting incorrect field values may cause the system to malfunction. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 54 ESC: Exit Version 2.18.1263. Copyright (C) 2021 American Megatrends, Inc. Version 2.18.1263. Copyright (C) 2021 American Megatrends, Inc. HD-Audio Support Enables or disables HD Audio support. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 55 OS. Please do not disable it unless for debugging purposes. SATA Test Mode Enables or disables SATA test mode. Port 0 Enables or disables SATA port 0. Port 1 Enables or disables SATA port 1. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 56: Security

    Select this to reconfigure the administrator’s password. USB Power State in S5 User Password Configures the USB power state in S5. Select this to reconfigure the user’s password. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 57: Boot

    When set to Off, the function of the numeric keypad is the arrow keys Quiet Boot Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
  • Page 58: Save & Exit

    Restore Defaults To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved. XPPC 16-101 User Manual...
