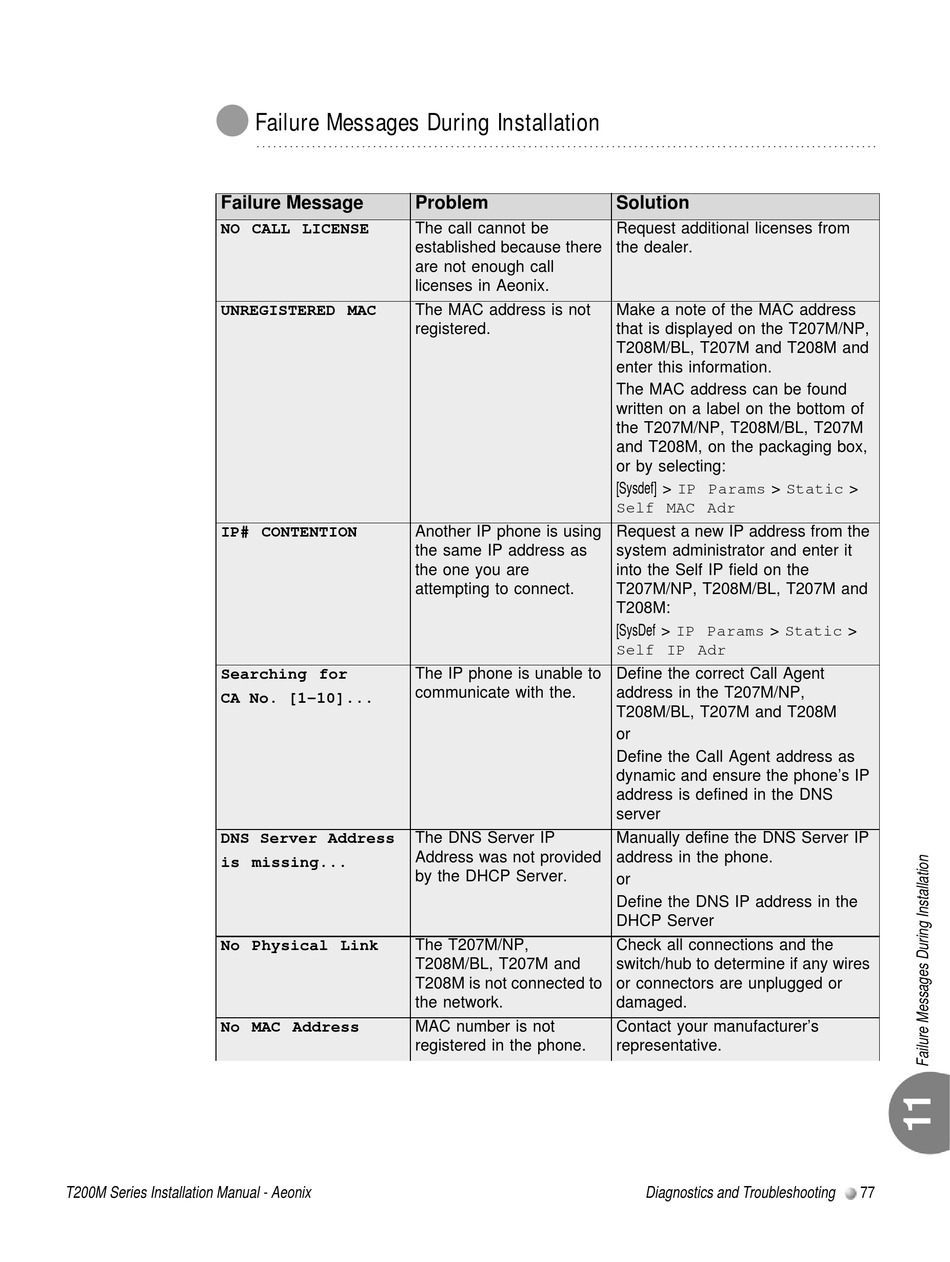

Failure Messages During Installation - Tadiran Telecom Aeonix T200M Series Installation Manual


Failure Message
NO CALL LICENSE
UNREGISTERED MAC
IP# CONTENTION
Searching for
CA No. [1-10]...
DNS Server Address
is missing...
No Physical Link
No MAC Address
T200M Series Installation Manual - Aeonix

Failure Messages During Installation

................................................................................................................
Problem
The call cannot be
established because there
are not enough call
licenses in Aeonix.
The MAC address is not
registered.
Another IP phone is using
the same IP address as
the one you are
attempting to connect.
The IP phone is unable to
communicate with the.
The DNS Server IP
Address was not provided
by the DHCP Server.
The T207M/NP,
T208M/BL, T207M and
T208M is not connected to
the network.
MAC number is not
registered in the phone.
Solution
Request additional licenses from
the dealer.
Make a note of the MAC address
that is displayed on the T207M/NP,
T208M/BL, T207M and T208M and
enter this information.
The MAC address can be found
written on a label on the bottom of
the T207M/NP, T208M/BL, T207M
and T208M, on the packaging box,
or by selecting:
[Sysdef] > IP Params > Static >
Self MAC Adr
Request a new IP address from the
system administrator and enter it
into the Self IP field on the
T207M/NP, T208M/BL, T207M and
T208M:
[SysDef > IP Params > Static >
Self IP Adr
Define the correct Call Agent
address in the T207M/NP,
T208M/BL, T207M and T208M
or
Define the Call Agent address as
dynamic and ensure the phone's IP
address is defined in the DNS
server
Manually define the DNS Server IP
address in the phone.
or
Define the DNS IP address in the
DHCP Server
Check all connections and the
switch/hub to determine if any wires
or connectors are unplugged or
damaged.
Contact your manufacturer's
representative.
Diagnostics and Troubleshooting 77
