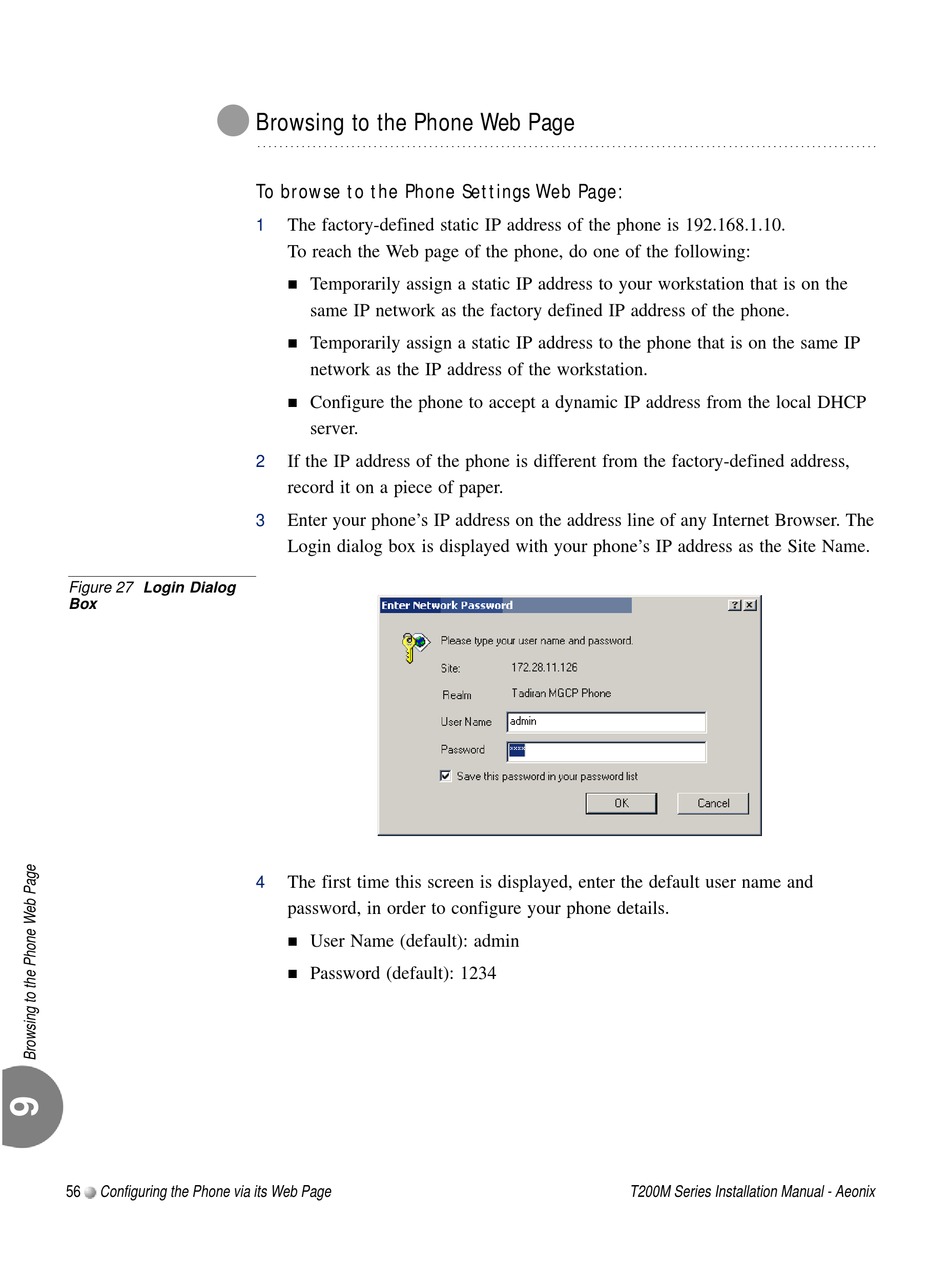

Browsing To The Phone Web Page - Tadiran Telecom Aeonix T200M Series Installation Manual


Figure 27 Login Dialog
Box
56 Configuring the Phone via its Web Page

Browsing to the Phone Web Page

................................................................................................................
To browse to the Phone Settings Web Page:
1
The factory-defined static IP address of the phone is 192.168.1.10.
To reach the Web page of the phone, do one of the following:
 Temporarily assign a static IP address to your workstation that is on the
same IP network as the factory defined IP address of the phone.
 Temporarily assign a static IP address to the phone that is on the same IP
network as the IP address of the workstation.
 Configure the phone to accept a dynamic IP address from the local DHCP
server.
2
If the IP address of the phone is different from the factory-defined address,
record it on a piece of paper.
3
Enter your phone's IP address on the address line of any Internet Browser. The
Login dialog box is displayed with your phone's IP address as the Site Name.
4
The first time this screen is displayed, enter the default user name and
password, in order to configure your phone details.
 User Name (default): admin
 Password (default): 1234
T200M Series Installation Manual - Aeonix
