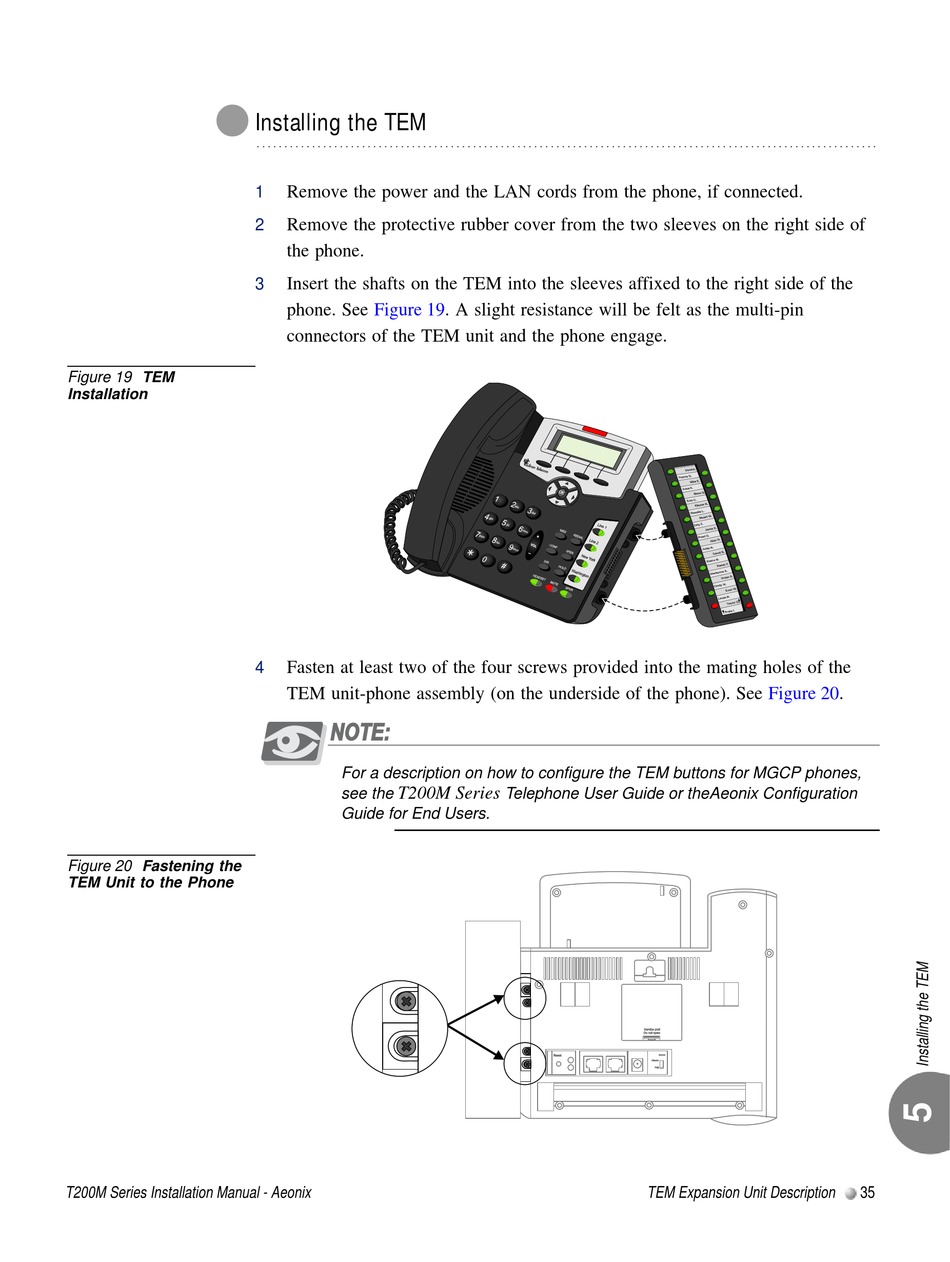

Figure 19 TEM
Installation
Figure 20 Fastening the
TEM Unit to the Phone
T200M Series Installation Manual - Aeonix

Installing the TEM

................................................................................................................
1
Remove the power and the LAN cords from the phone, if connected.
2
Remove the protective rubber cover from the two sleeves on the right side of
the phone.
3
Insert the shafts on the TEM into the sleeves affixed to the right side of the
phone. See Figure 19. A slight resistance will be felt as the multi-pin
connectors of the TEM unit and the phone engage.
4
Fasten at least two of the four screws provided into the mating holes of the
TEM unit-phone assembly (on the underside of the phone). See
For a description on how to configure the TEM buttons for MGCP phones,
T200M Series
see the
Guide for End Users.
Telephone User Guide or theAeonix Configuration
TEM Expansion Unit Description
Figure 20.
