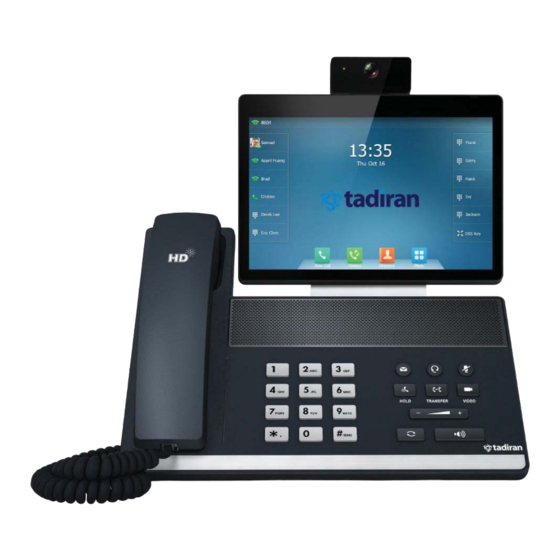

- Page 1 Ultra-elegant Gigabit IP Phone T49G Quick Start Guide www.tadirantele.com...
-
Page 2: Packaging Contents
Packaging Contents The following items are included in your package. If you find anything missing, contact your system administrator. Camera Stand Quick Start Guide Handset Cord Ethernet Cable Power Adapter IP Phone Handset USB3.0 Cable 3M Dual Lock Assembling the Phone 1. - Page 3 3. Connect the handset and optional headset, as shown below: Note: The headset should be purchased separately. 4. Connect the optional USB flash drive, as shown below: 5. Connect the external monitor and attach the camera to the external monitor, as shown below: Steps：...
- Page 4 6. Connect the AC power, as shown below: Note: The IP phone shoule be used with Tadiran original power adapter (12V/2A) only. 7. Connect to the network, as shown below: You have two options for network connection. Your can select one of them according to the current office environment.
-
Page 5: Transfer Key
Hardware Component Instructions Item Item Item TRANSFER Key Hookswitch Camera Power Indicator LED Shutter Switch Volume Key Speakerphone Key Camera Indicator LED Touch Screen MESSAGE Key Camera Lens REDIAL Key HOLD Key HEADSET Key HDMI port MUTE Key Keypad USB2.0 port VIDEO Key Speaker... - Page 6 Startup After the IP phone is connected to the network and supplied with power, it automatically begins the initialization process. After startup, the phone is Welcome ready for use. See your system administrator for nitializing... Please wait advanced configuration options. Using Your Phone Status Icons The icons on the status bar of the touch screen give information about the phone:...
-
Page 7: Basic Call Features
Entering and Updating Data To use onscreen keyboard: 1.Tap the field you want to edit, the onscreen keyboard will display on the touch screen: Tap to backspace. Tap to wrap. Tap to switch between uppercase and lowercase. Tap to hide the onscreen keyboard. Tap to switch among input modes. - Page 8 Answering a Video/Voice Call Using the handset: Pick up the handset. Using the speakerphone: Press Using the headset: Press Controlling Video During a Call To change the video view: To turn on/off video during a call: Swipe down from the top of the screen to enter the control center, tap Video to turn the video on/off. Press Adjust the shutter switch.
- Page 9 Call Transfer You can transfer a call in the following ways: Blind Transfer or tap the Transfer soft key during a call. The call is placed on hold. 1. Press 2. Enter the number you want to transfer to. 3. Press or tap the Transfer soft key.
- Page 10 Customizing Your Phone Call History 1. When the phone is idle, tap , and select the requireed call list on the left. 2. Drag up and down to scroll. 3. Tap after the required entry, and then you can do the following: Tap Send to place a call.
- Page 11 Copyright 2016 TADIRAN TELECOM (TTL), L.P .
