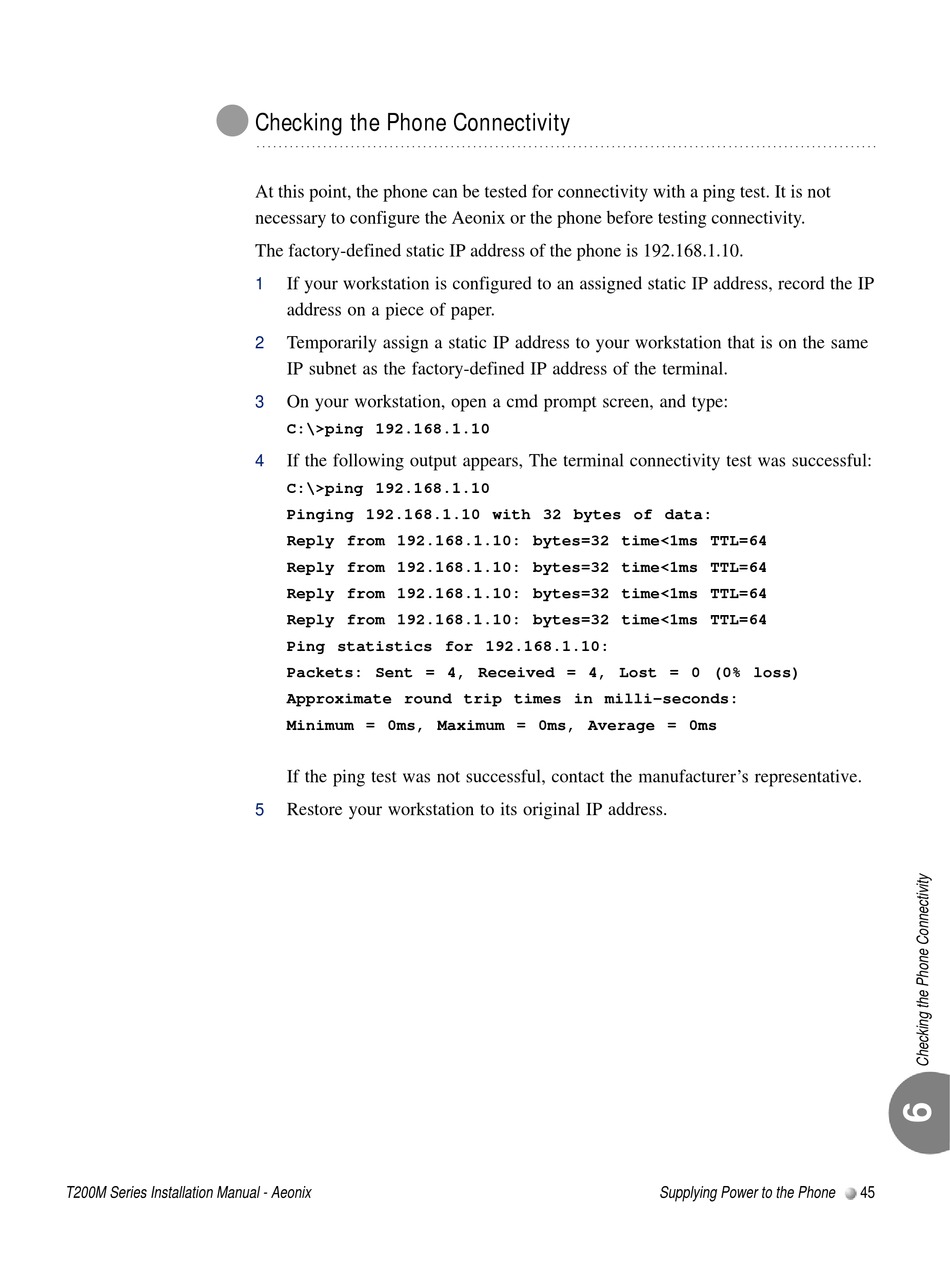

Checking the Phone Connectivity

................................................................................................................
At this point, the phone can be tested for connectivity with a ping test. It is not
necessary to configure the Aeonix or the phone before testing connectivity.
The factory-defined static IP address of the phone is 192.168.1.10.
1
If your workstation is configured to an assigned static IP address, record the IP
address on a piece of paper.
2
Temporarily assign a static IP address to your workstation that is on the same
IP subnet as the factory-defined IP address of the terminal.
3
On your workstation, open a cmd prompt screen, and type:
C:\>ping 192.168.1.10
4
If the following output appears, The terminal connectivity test was successful:
C:\>ping 192.168.1.10
Pinging 192.168.1.10 with 32 bytes of data:
Reply from 192.168.1.10: bytes=32 time<1ms TTL=64
Reply from 192.168.1.10: bytes=32 time<1ms TTL=64
Reply from 192.168.1.10: bytes=32 time<1ms TTL=64
Reply from 192.168.1.10: bytes=32 time<1ms TTL=64
Ping statistics for 192.168.1.10:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss)
Approximate round trip times in milli-seconds:
Minimum = 0ms, Maximum = 0ms, Average = 0ms
If the ping test was not successful, contact the manufacturer's representative.
5
Restore your workstation to its original IP address.
