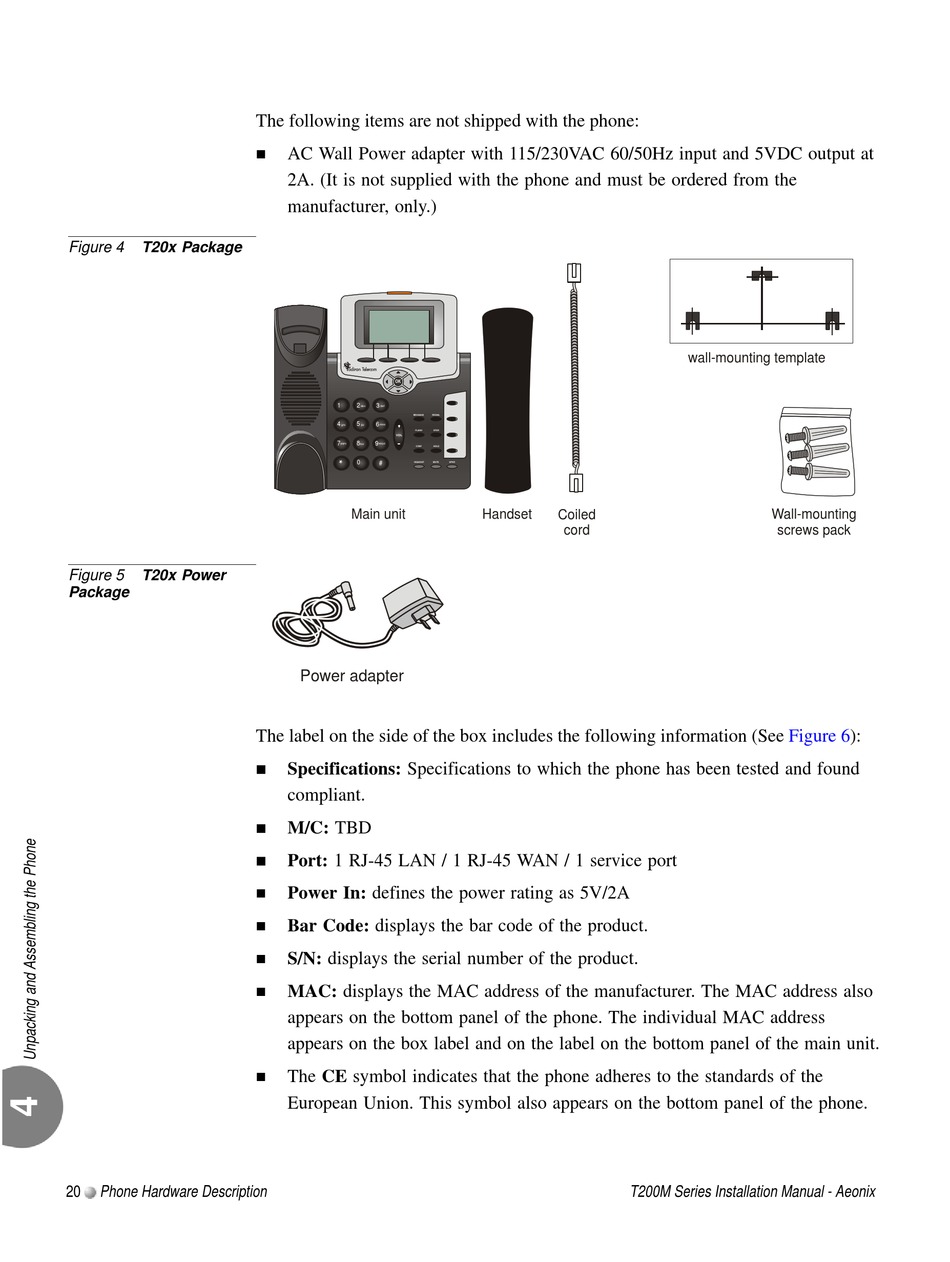

Figure 4 T20x Package
Figure 5 T20x Power
Package
20 Phone Hardware Description
The following items are not shipped with the phone:

AC Wall Power adapter with 115/230VAC 60/50Hz input and 5VDC output at
2A. (It is not supplied with the phone and must be ordered from the
manufacturer, only.)
OK
1 2
abc def
MESSAGE REDIAL
4 5 6
ghi jkl mno
FLASH XFER
VOL
7 8
pqrs wxyz
tuv
CONF HOLD
0
# HEADSET MUTE
Main unit
Power adapter
The label on the side of the box includes the following information (See
 Specifications: Specifications to which the phone has been tested and found
compliant.
 M/C: TBD
 Port: 1 RJ-45 LAN / 1 RJ-45 WAN / 1 service port

Power In: defines the power rating as 5V/2A
 Bar Code: displays the bar code of the product.
 S/N: displays the serial number of the product.

MAC: displays the MAC address of the manufacturer. The MAC address also
appears on the bottom panel of the phone. The individual MAC address
appears on the box label and on the label on the bottom panel of the main unit.
 The CE symbol indicates that the phone adheres to the standards of the
European Union. This symbol also appears on the bottom panel of the phone.
SPKR
Handset
Coiled
cord
wall-mounting template
Wall-mounting
screws pack
Figure
T200M Series Installation Manual - Aeonix
6):
