T200M Series Installation Manual - Aeonix

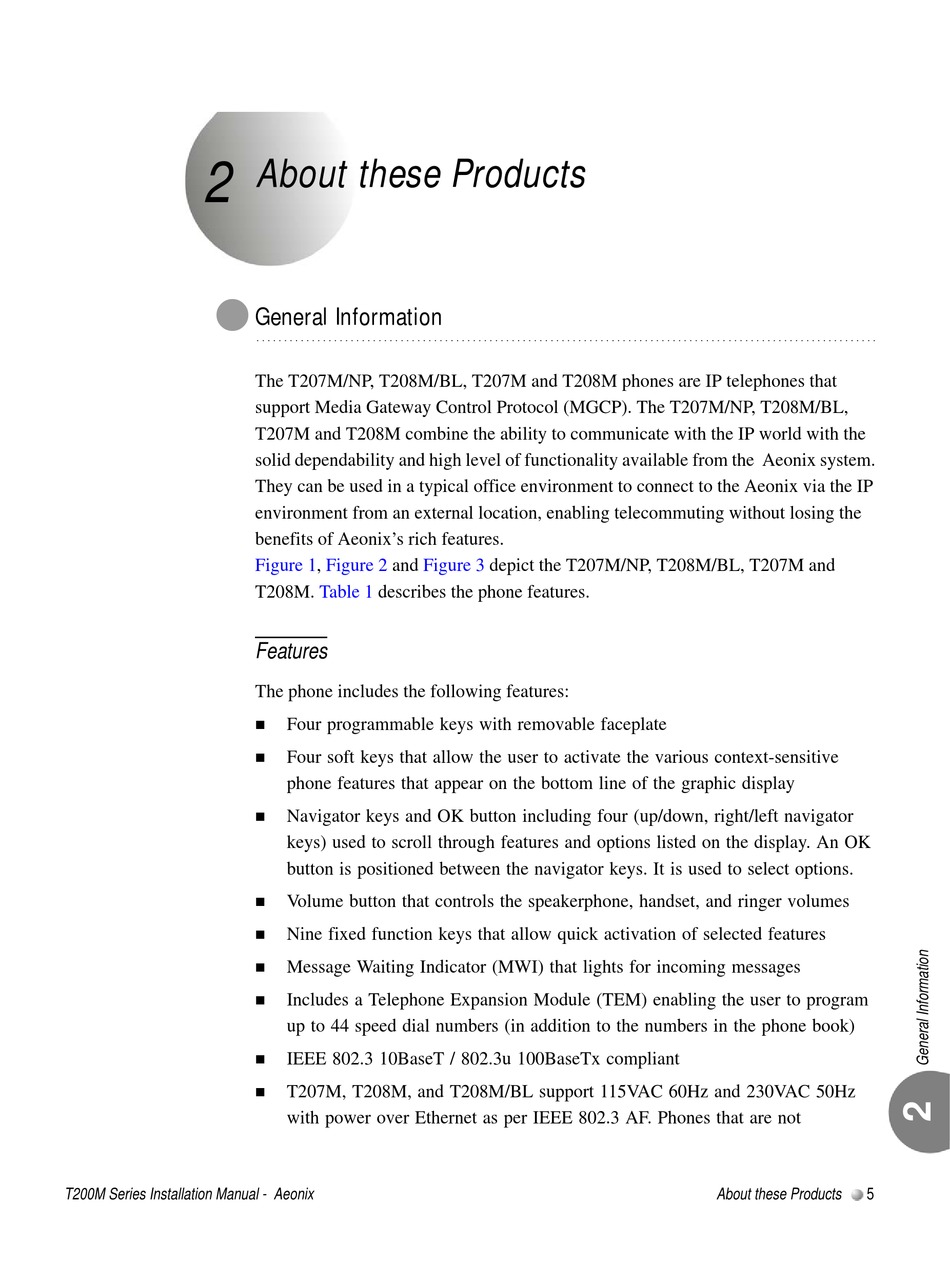

About these Products

General Information

................................................................................................................
The T207M/NP, T208M/BL, T207M and T208M phones are IP telephones that
support Media Gateway Control Protocol (MGCP). The T207M/NP, T208M/BL,
T207M and T208M combine the ability to communicate with the IP world with the
solid dependability and high level of functionality available from the Aeonix system.
They can be used in a typical office environment to connect to the Aeonix via the IP
environment from an external location, enabling telecommuting without losing the
benefits of Aeonix's rich features.
Figure 1, Figure 2 and Figure 3
T208M. Table 1 describes the phone features.
Features
The phone includes the following features:
 Four programmable keys with removable faceplate
 Four soft keys that allow the user to activate the various context-sensitive
phone features that appear on the bottom line of the graphic display
 Navigator keys and OK button including four (up/down, right/left navigator
keys) used to scroll through features and options listed on the display. An OK
button is positioned between the navigator keys. It is used to select options.
 Volume button that controls the speakerphone, handset, and ringer volumes
 Nine fixed function keys that allow quick activation of selected features

Message Waiting Indicator (MWI) that lights for incoming messages
 Includes a Telephone Expansion Module (TEM) enabling the user to program
up to 44 speed dial numbers (in addition to the numbers in the phone book)
 IEEE 802.3 10BaseT / 802.3u 100BaseTx compliant
 T207M, T208M, and T208M/BL support 115VAC 60Hz and 230VAC 50Hz
with power over Ethernet as per IEEE 802.3 AF. Phones that are not
depict the T207M/NP, T208M/BL, T207M and
About these Products 5
