Figure 15 Preparing the
Phone for Mounting onto
the Wall
30 Phone Hardware Description
Mounting the Phone onto the Wall
1
Using a flat blade screwdriver, pry latches A and B on both sides of the
desk-mounting bracket.
2
Remove latches from the desk-mounting bracket, and remove the bracket from
the phone.
3
Reinsert the latches into the desk-mounting bracket.
4
Place the wall mounting template on the wall where the phone is to be
mounted. Make sure to orient the template correctly. See
The wall-mounting template includes more than one set of holes for
telephone mounting. Do not use the second set of holes to mount two
adjacent telephones.

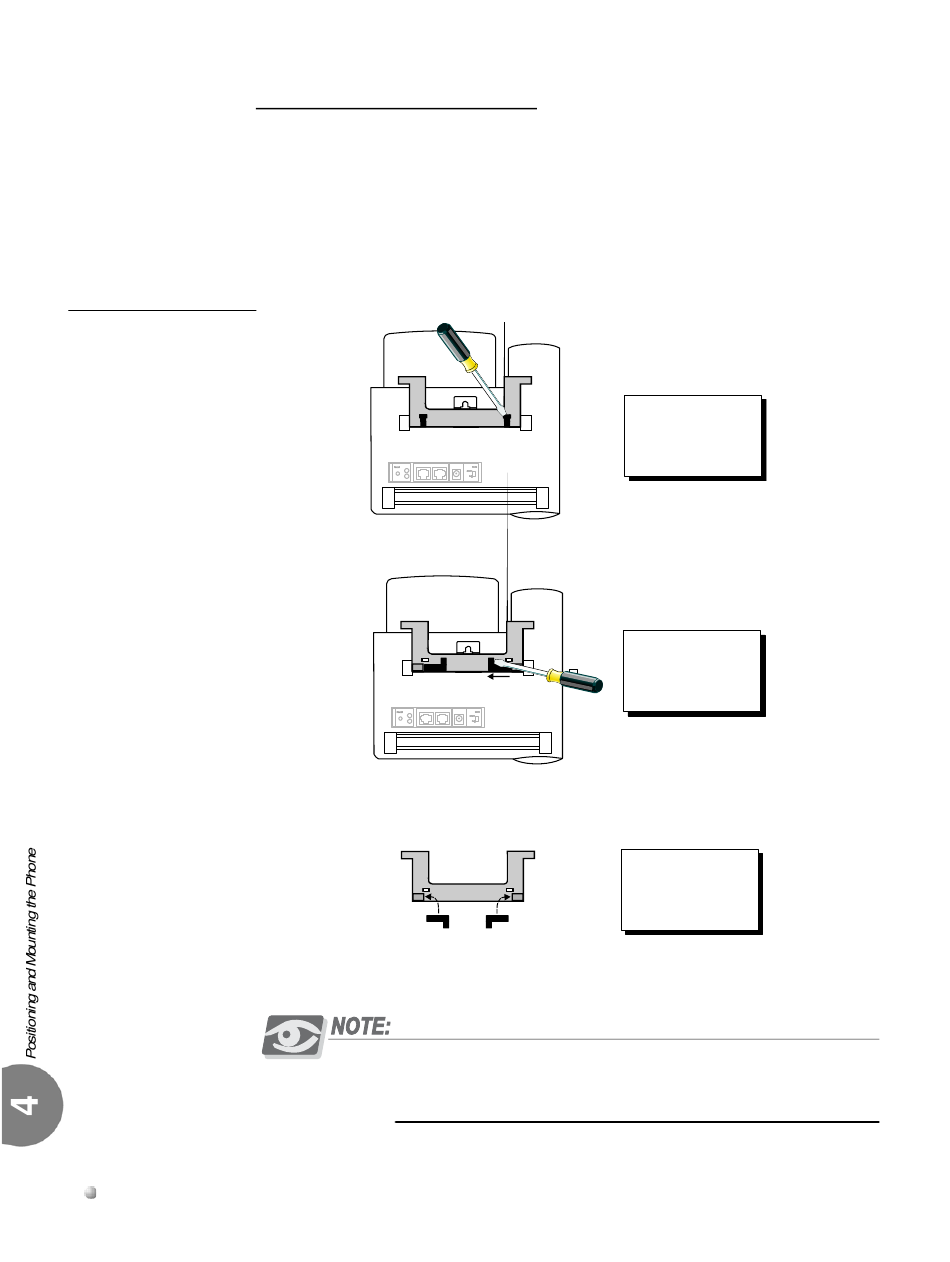

1
Using a flat blade
screwdriver, pry
up the latch on
both sides
2
Remove both
latches
3
Reinsert
latches for
future use
