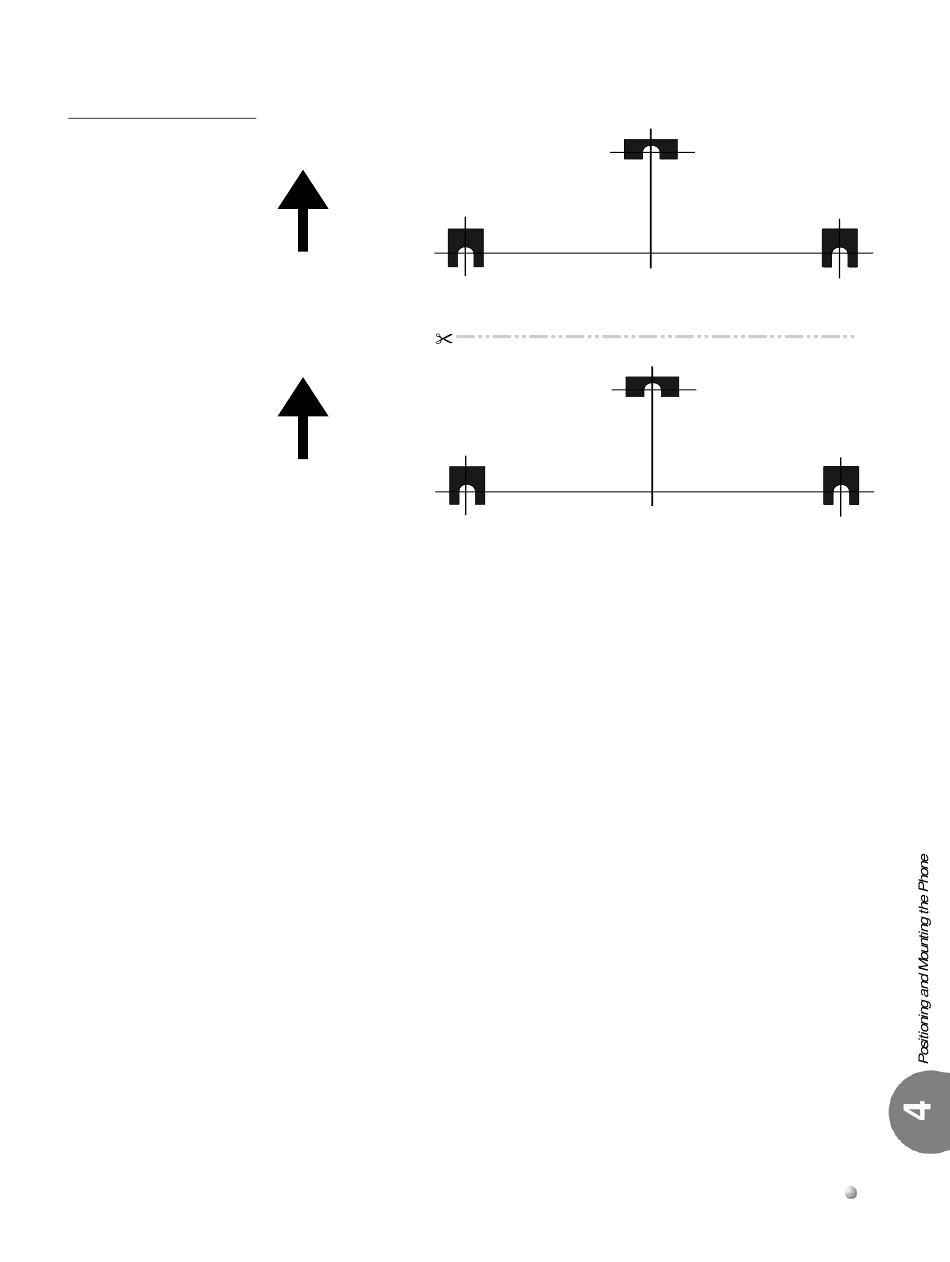

Figure 16 Wall-Mounting
Template
T200M Series Installation Manual - Aeonix
This way up
This way up
5
Make a mark on the wall in each of the template holes as indicated in
Figure 16.
6
Use a small drill bit (#7, 13/64", 5mm or smaller) to drill three holes into the
wall for the mounting screws. The hole drilled should be only wide enough to
allow the wall plugs to enter snugly, not loosely.
7
Insert the three wall plugs into the holes.
8
Tighten the three screws into the wall plugs, taking care to leave enough space
to insert the wall mounting holes on the bottom of the phone.
9
Fold the U-type frame such that it is level with the rear of the phone.
10
Connect the PC and LAN cables and the power supply cord, if applicable.
11
Align the holes on the rear panel of the U-type frame with the screws on the
wall, and mount the phone onto the wall.
12
Tighten the screws.
13
Press down the handset latch and connect and position the handset.
