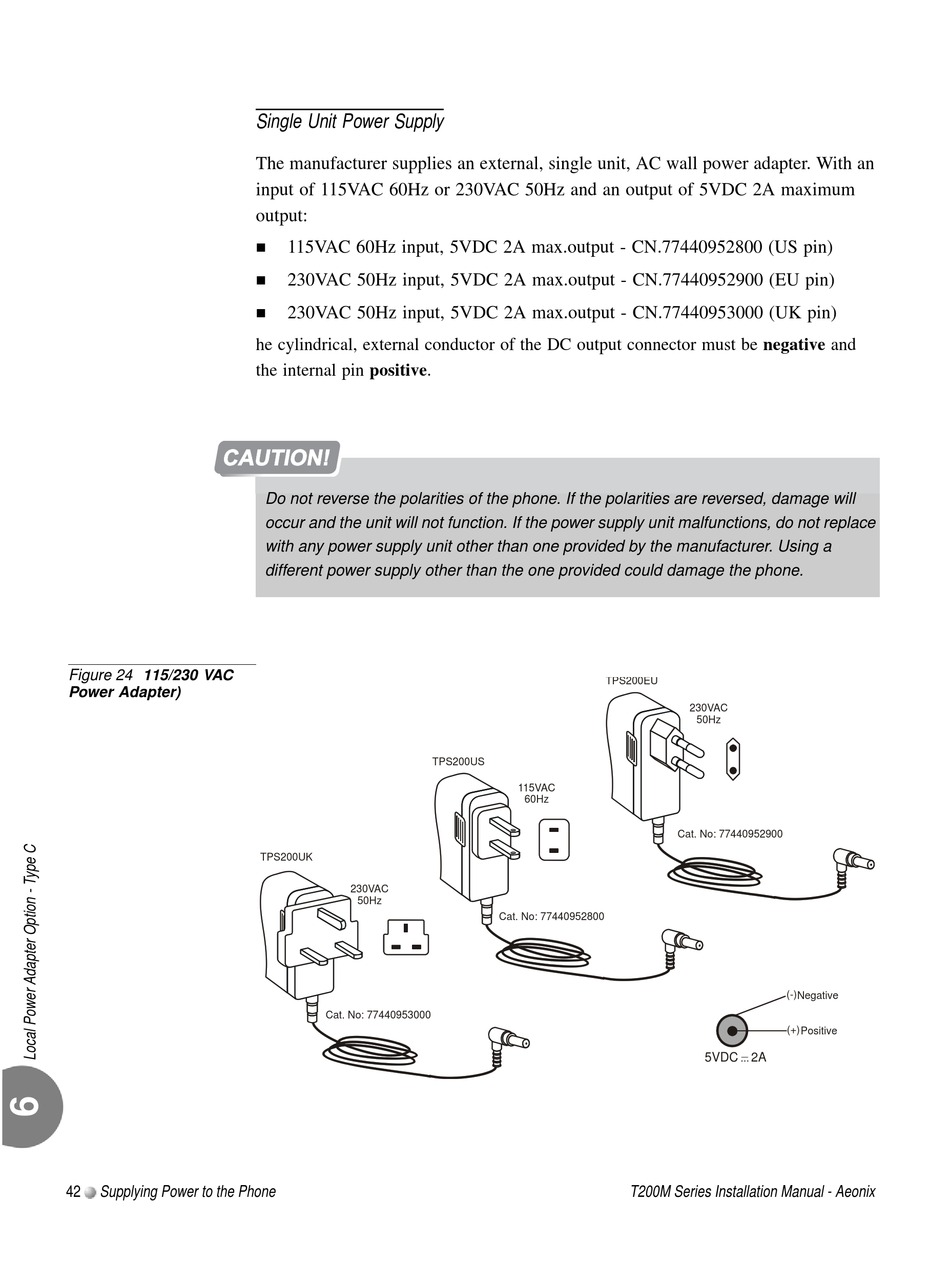

Figure 24 115/230 VAC
Power Adapter)
42 Supplying Power to the Phone
Single Unit Power Supply
The manufacturer supplies an external, single unit, AC wall power adapter. With an
input of 115VAC 60Hz or 230VAC 50Hz and an output of 5VDC 2A maximum
output:

115VAC 60Hz input, 5VDC 2A max.output - CN.77440952800 (US pin)

230VAC 50Hz input, 5VDC 2A max.output - CN.77440952900 (EU pin)
 230VAC 50Hz input, 5VDC 2A max.output - CN.77440953000 (UK pin)
he cylindrical, external conductor of the DC output connector must be negative and
the internal pin positive.
Do not reverse the polarities of the phone. If the polarities are reversed, damage will
occur and the unit will not function. If the power supply unit malfunctions, do not replace
with any power supply unit other than one provided by the manufacturer. Using a
different power supply other than the one provided could damage the phone.
TPS200US
TPS200UK
230VAC
50Hz
Cat. No: 77440953000
TPS200EU
115VAC
60Hz
Cat. No: 77440952900
Cat. No: 77440952800
T200M Series Installation Manual - Aeonix
230VAC
50Hz
(-)
Negative
(+)
Positive
5VDC 2A
...
