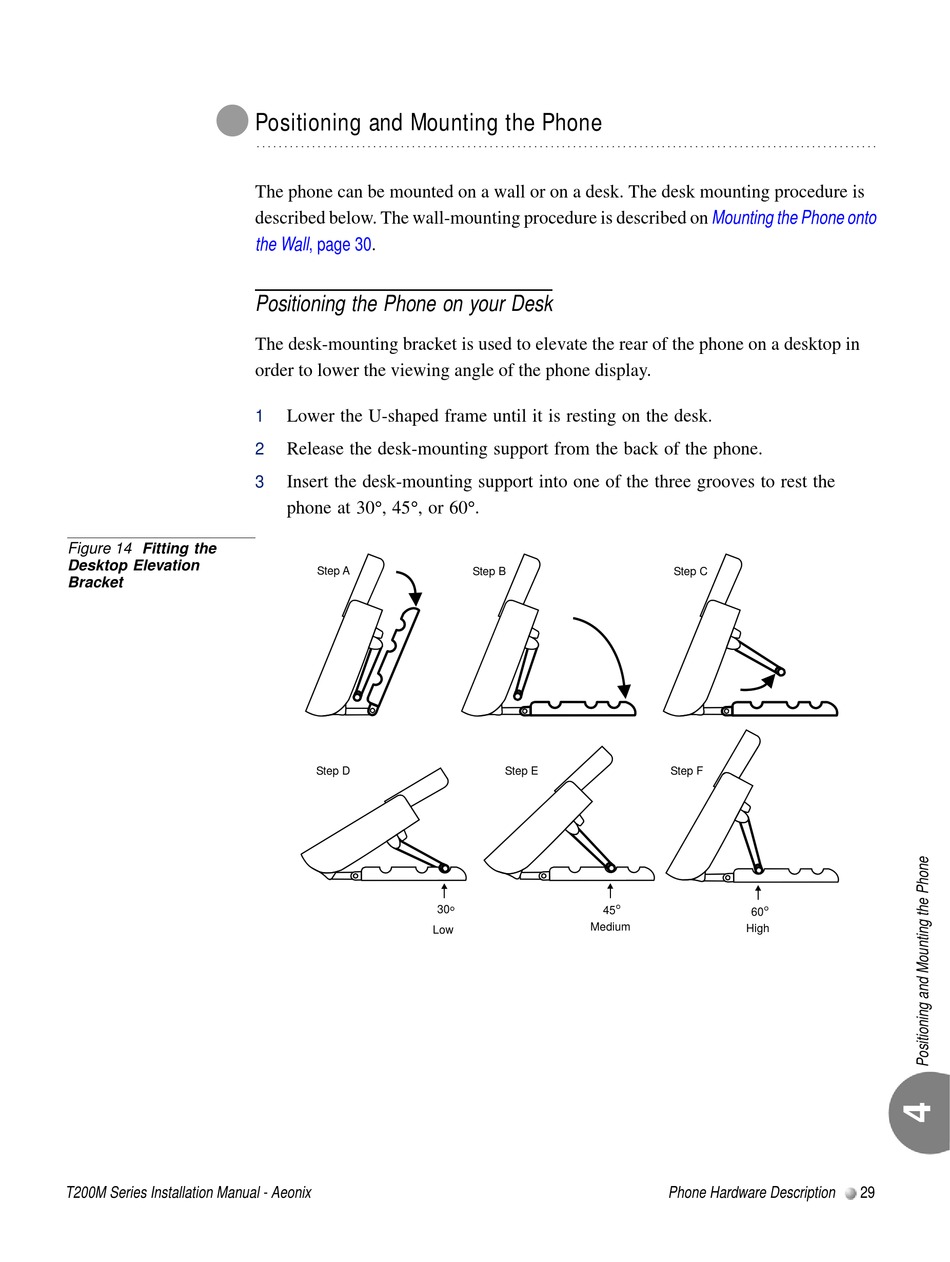

Figure 14 Fitting the
Desktop Elevation
Bracket
T200M Series Installation Manual - Aeonix

Positioning and Mounting the Phone

................................................................................................................
The phone can be mounted on a wall or on a desk. The desk mounting procedure is
described below. The wall-mounting procedure is described on
the Wall, page 30.
Positioning the Phone on your Desk
The desk-mounting bracket is used to elevate the rear of the phone on a desktop in
order to lower the viewing angle of the phone display.
1
Lower the U-shaped frame until it is resting on the desk.
2
Release the desk-mounting support from the back of the phone.
3
Insert the desk-mounting support into one of the three grooves to rest the
phone at 30, 45, or 60.
Step A
Step D
Low
Step B
Step E
30
45
Medium
Mounting the Phone onto
Step C
Step F
60
High
Phone Hardware Description 29
