Tadiran Telecom Aeonix T200M Series Installation Manual page 40

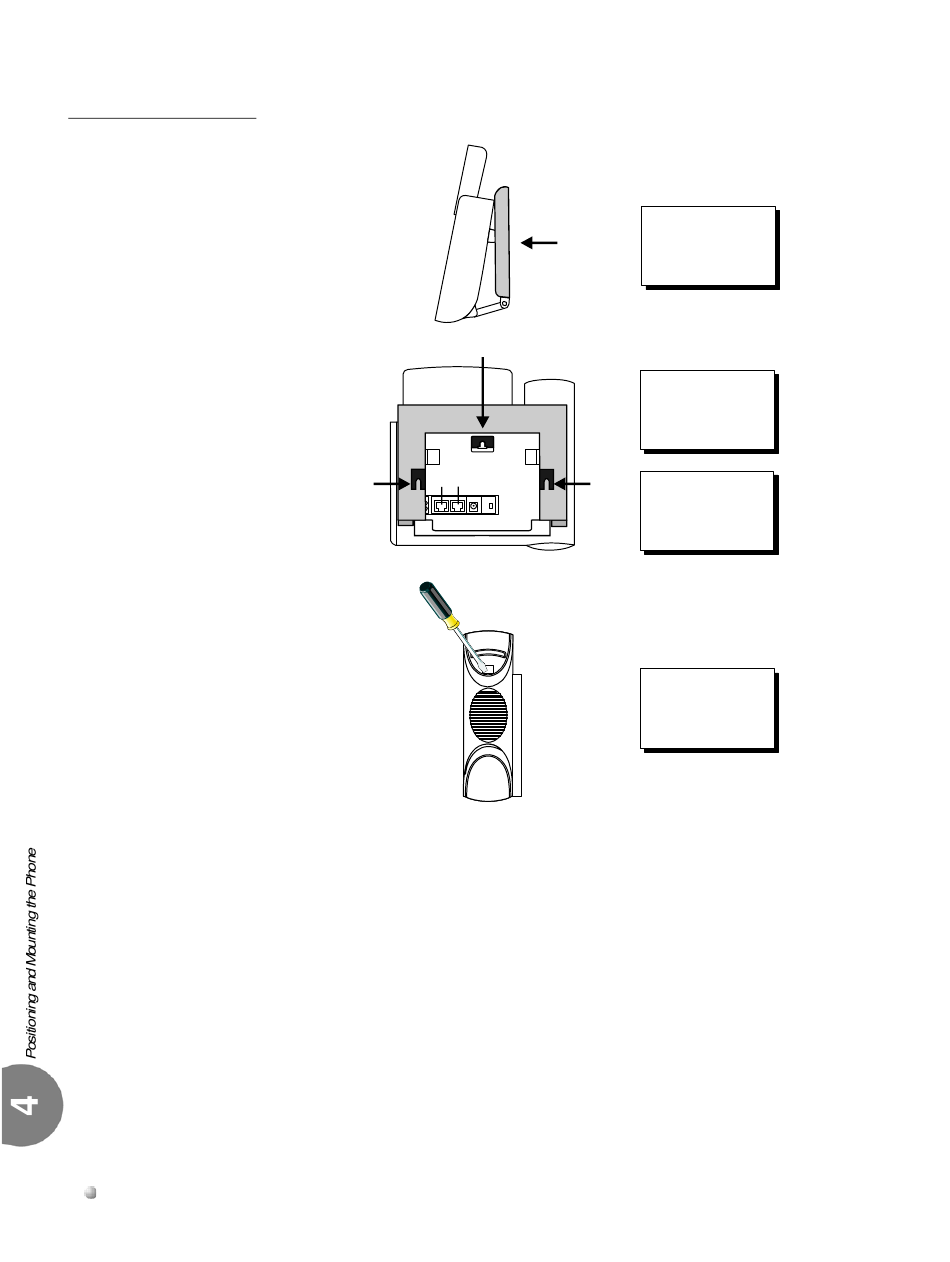

Figure 17 Mounting the
Phone onto the Wall
32 Phone Hardware Description
D
A B
E
Reset Source
Adapter
PoE
1
Fold the U-type
frame onto the
back of the
phone.
2
Connect cables
to A and B
3
Line up C, D
C
and E with
screws on the
wall and mount
the phone
4
Press down
cradle latch
hang up hand-
set and attach
cord
T200M Series Installation Manual - Aeonix
