12.4 Data Format

The SPIA data length can be selected from 2 bits to 16 bits by setting the SPInMOD.CHLN[3:0] bits. The input/
output permutation is configurable to MSB first or LSB first using the SPInMOD.LSBFST bit. Figure 12.4.1 shows
a data format example when the SPInMOD.CHLN[3:0] bits = 0x7, the SPInMOD.CPOL bit = 0 and the SPInMOD.
CPHA bit = 0.
Cycle No.
SPInMOD. SPICLKn
LSBFST bit
SDOn
0
SDIn
SDOn
1
SDIn
Writing Dw[7:0] to the SPInTXD register

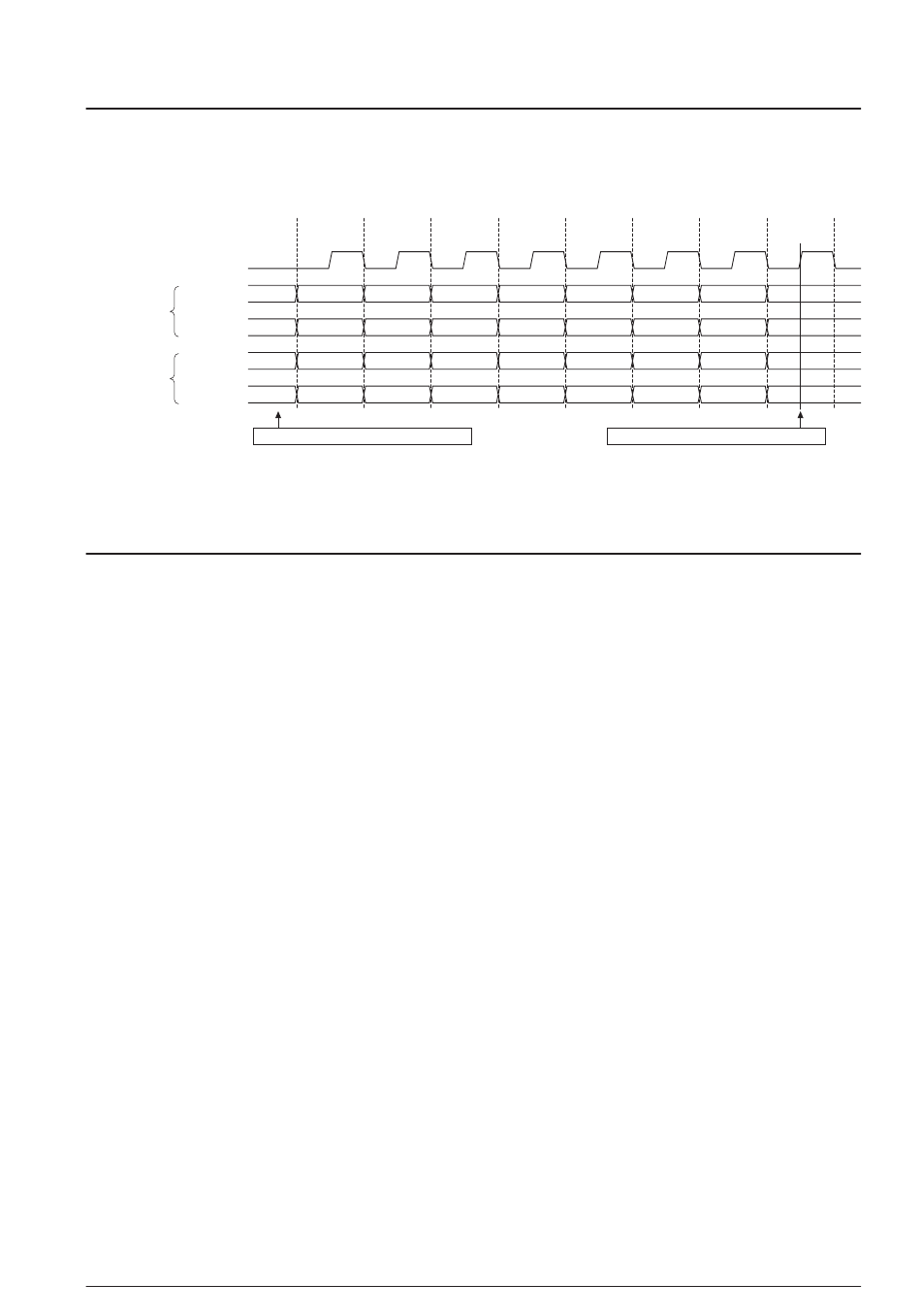

Figure 12.4.1 Data Format Selection Using the SPInMOD.LSBFST Bit
(SPInMOD.CHLN[3:0] bits = 0x7, SPInMOD.CPOL bit = 0, SPInMOD.CPHA bit = 0)

12.5 Operations

12.5.1 Initialization

SPIA Ch.n should be initialized with the procedure shown below.
1. <Master mode only> Generate a clock by controlling the 16-bit timer and supply it to SPIA Ch.n.
2. Configure the following SPInMOD register bits:
- SPInMOD.PUEN bit
- SPInMOD.NOCLKDIV bit
- SPInMOD.LSBFST bit
- SPInMOD.CPHA bit
- SPInMOD.CPOL bit
- SPInMOD.MST bit
3. Assign the SPIA Ch.n input/output function to the ports. (Refer to the "I/O Ports" chapter.)
4. Set the following SPInCTL register bits:
- Set the SPInCTL.SFTRST bit to 1.
- Set the SPInCTL.MODEN bit to 1.
5. Set the following bits when using the interrupt:
- Write 1 to the interrupt flags in the SPInINTF register.
- Set the interrupt enable bits in the SPInINTE register to 1. * (Enable interrupts)
* The initial value of the SPInINTF.TBEIF bit is 1, therefore, an interrupt will occur immediately after the
SPInINTE.TBEIE bit is set to 1.

12.5.2 Data Transmission in Master Mode

A data sending procedure and operations in master mode are shown below. Figures 12.5.2.1 and 12.5.2.2 show a
timing chart and a flowchart, respectively.
Data sending procedure
1. Assert the slave select signal by controlling the general-purpose output port (if necessary).
2. Check to see if the SPInINTF.TBEIF bit is set to 1 (transmit buffer empty).
3. Write transmit data to the SPInTXD register.
