2 POWER SUPPLY, RESET, AND CLOCKS
EXOSC has no oscillation stabilization waiting circuit included, therefore, it must be enabled when a stabilized
clock is being supplied. For the input clock characteristics, refer to "EXOSC external clock input characteris-
tics" in the "Electrical Characteristics" chapter.

2.3.4 Operations

Oscillation start time and oscillation stabilization waiting time
The oscillation start time refers to the time after the oscillator circuit is enabled until the oscillation signal is ac-
tually sent to the internal circuits. The oscillation stabilization waiting time refers to the time it takes the clock
to stabilize after the oscillation starts. To avoid malfunctions of the internal circuits due to an unstable clock
during this period, the oscillator circuit includes an oscillation stabilization waiting circuit that can disable sup-
plying the clock to the system until the designated time has elapsed. Figure 2.3.4.1 shows the relationship be-
tween the oscillation start time and the oscillation stabilization waiting time.
Digitized oscillation waveform
Oscillator circuit output clock
Oscillation stabilization waiting completion flag

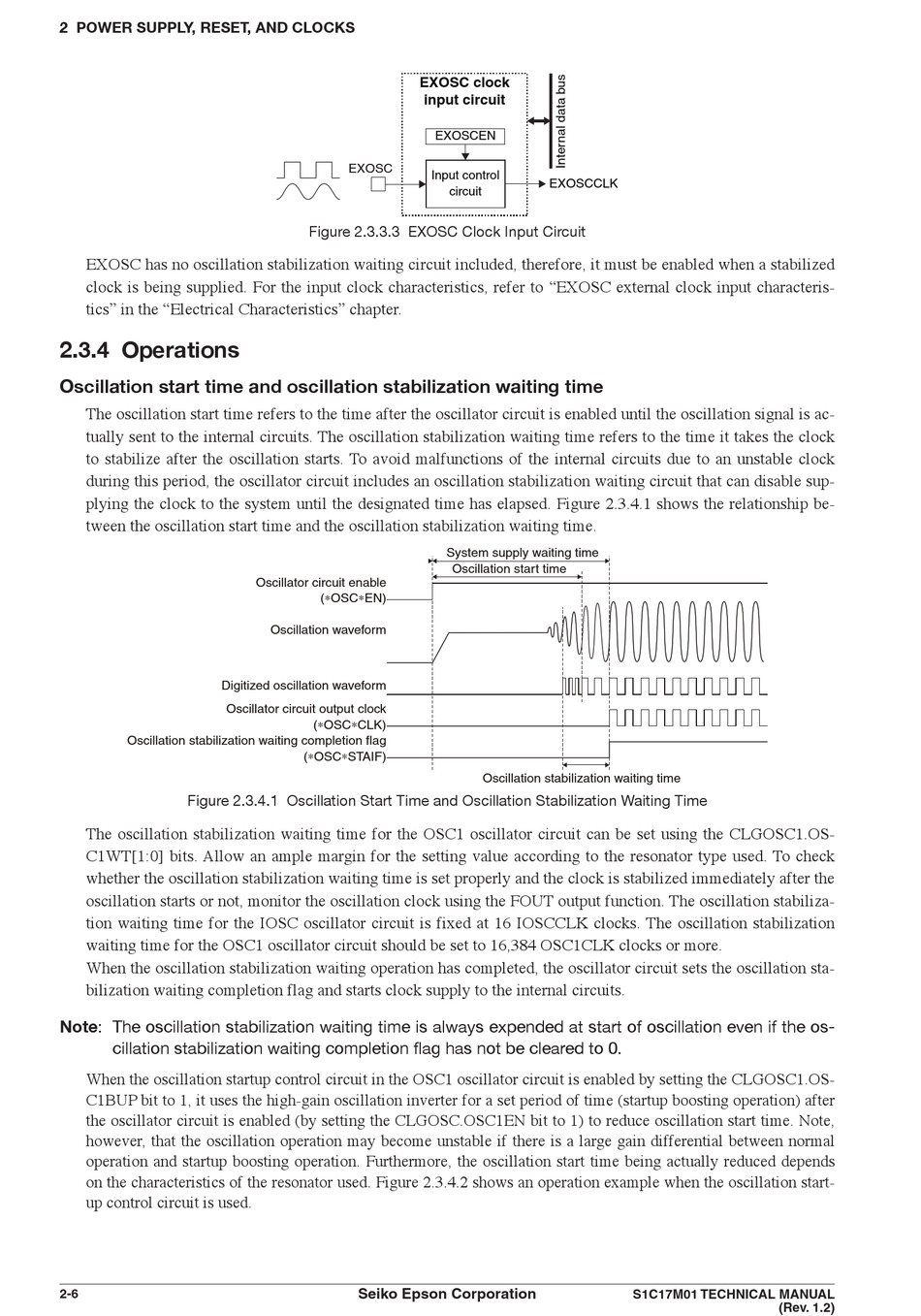

Figure 2.3.4.1 Oscillation Start Time and Oscillation Stabilization Waiting Time
The oscillation stabilization waiting time for the OSC1 oscillator circuit can be set using the CLGOSC1.OS-
C1WT[1:0] bits. Allow an ample margin for the setting value according to the resonator type used. To check
whether the oscillation stabilization waiting time is set properly and the clock is stabilized immediately after the
oscillation starts or not, monitor the oscillation clock using the FOUT output function. The oscillation stabiliza-
tion waiting time for the IOSC oscillator circuit is fixed at 16 IOSCCLK clocks. The oscillation stabilization
waiting time for the OSC1 oscillator circuit should be set to 16,384 OSC1CLK clocks or more.
When the oscillation stabilization waiting operation has completed, the oscillator circuit sets the oscillation sta-
bilization waiting completion flag and starts clock supply to the internal circuits.
Note: The oscillation stabilization waiting time is always expended at start of oscillation even if the os-
cillation stabilization waiting completion flag has not be cleared to 0.
When the oscillation startup control circuit in the OSC1 oscillator circuit is enabled by setting the CLGOSC1.OS-
C1BUP bit to 1, it uses the high-gain oscillation inverter for a set period of time (startup boosting operation) after
the oscillator circuit is enabled (by setting the CLGOSC.OSC1EN bit to 1) to reduce oscillation start time. Note,
however, that the oscillation operation may become unstable if there is a large gain differential between normal
operation and startup boosting operation. Furthermore, the oscillation start time being actually reduced depends
on the characteristics of the resonator used. Figure 2.3.4.2 shows an operation example when the oscillation start-
up control circuit is used.
2-6
EXOSC clock
input circuit
EXOSC
Figure 2.3.3.3 EXOSC Clock Input Circuit
Oscillator circuit enable
(∗OSC∗EN)
Oscillation waveform
(∗OSC∗CLK)
(∗OSC∗STAIF)
Seiko Epson Corporation
EXOSCEN
Input control
EXOSCCLK
circuit
System supply waiting time
Oscillation start time
Oscillation stabilization waiting time
S1C17M01 TECHNICAL MANUAL
(Rev. 1.2)
