8. Operation
Manual Timer Operation
To use the timer manually:
1. First make sure that the AUTO key (on the Central Module) is turned off.

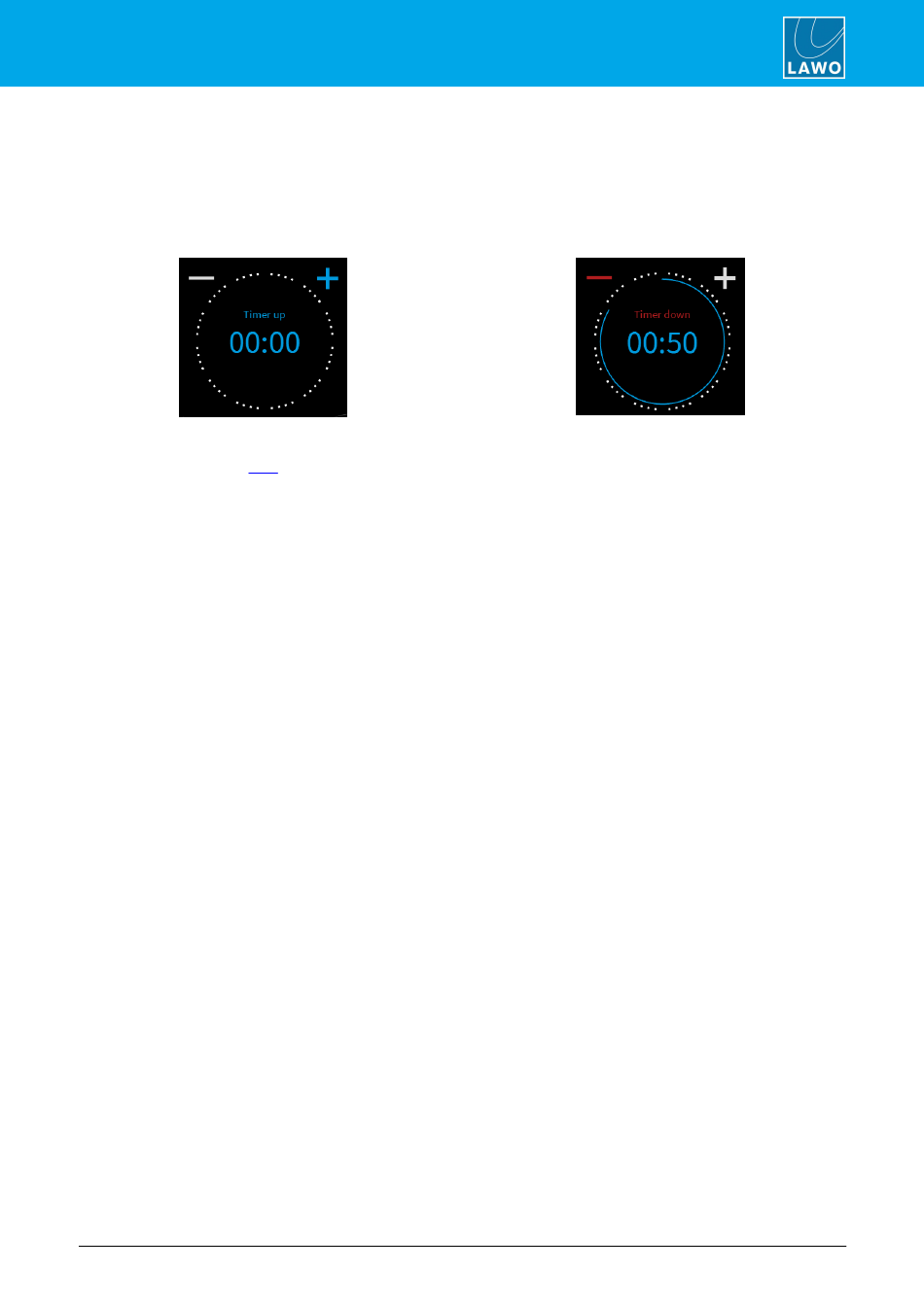

2. Then set your count-up or count-down mode using the + and - signs (on the GUI):
Count-Up Timer
In count-up mode, the timer will count up from 00:00. In count-down mode, the timer will count down from a
Preset value (described later).
3. Use the START, STOP and RESET keys (on the Central Module) to operate the timer:
·
START - starts the timer from the last stop position/time.
·
STOP - stops the timer.
·
RESET - resets the timer, either to 00:00 (count-up) or the Preset value (Count-down).
ruby standard configuration User Manual Version: 6.4.0/2
Count-Down Timer
