8. Operation
8.16.4 Loading a DisplayDock Snapshot
Ø
To load either a Full or Source snapshot:

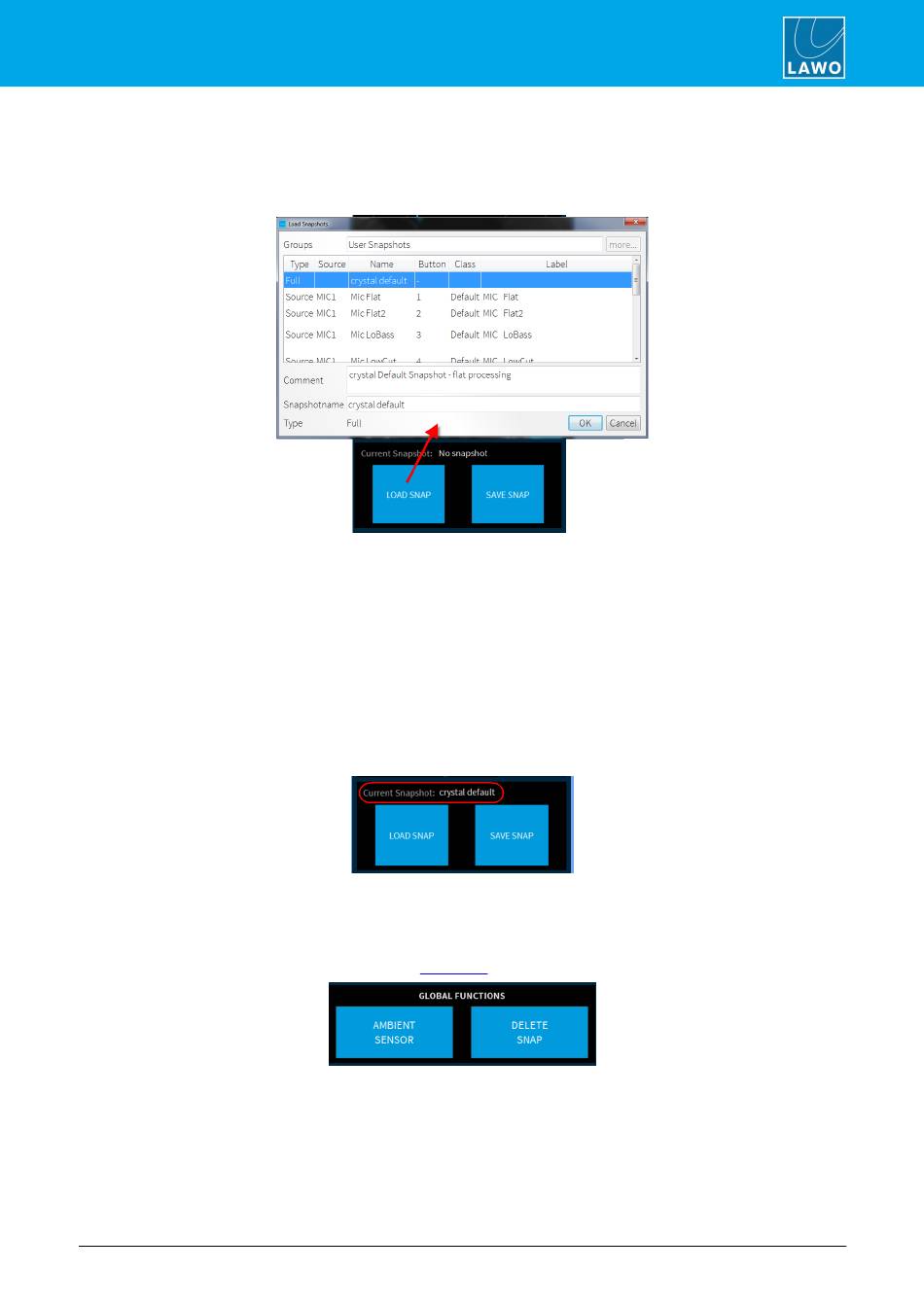

1. Select LOAD SNAP - the "Load Snapshot" window appears:
This window lists all of the snapshots stored in the current user group. In a ruby standard configuration system,
one group is available: User Snapshots.
In the Type column you can see that two types of snapshot are available:
·
Full snapshots store and recall settings globally across the console.
·
Source snapshots store settings for a specific source.
Note that Source snapshots can be loaded either to the source in access OR to their original source (if nothing
is in access). The original source is identified in the Source column.
2. Select a snapshot from the list and select OK - the window closes and the settings are loaded to the
system.
The console surface resets accordingly and "Current Snapshot" field on DisplayDock updates:
8.16.5 Deleting a DisplayDock Snapshot
You can delete a DisplayDock snapshot from the
1. Select DELETE SNAP - the "Delete Snapshot" window appears.
This window lists all of the snapshots stored in the current user group. In a ruby standard configuration system,
one group is available: User Snapshots.
2. Select a snapshot from the list and select OK - the window closes and the snapshot is deleted.
ruby standard configuration User Manual
Advanced page using the "GLOBAL FUNCTIONS":
