7.4
Configuring the System
DisplayDock Admin is the administrative program which configures the system. It is used for three main tasks:
·
To check and update the system firmware.
·
To update or change the configuration from Fader Start to Button Start.
·
To select the monitor used by DisplayDock (to launch the GUI).
You will need to run DisplayDock Admin whenever you update to a new version of software. The latest firmware
and configuration files copied onto the control PC during the software installation. When DisplayDock Admin
connects to Power Core, it compares the versions and updates the status messages accordingly. Any new files
can then be transferred.
7.4.1
Opening a Connection to Power Core
1.
DisplayDock Admin starts automatically at the end of the software installation procedure.
Alternatively, select Program Files -> DisplayDock (Ruby) -> DisplayDock (Ruby) Admin from the Windows
START menu.

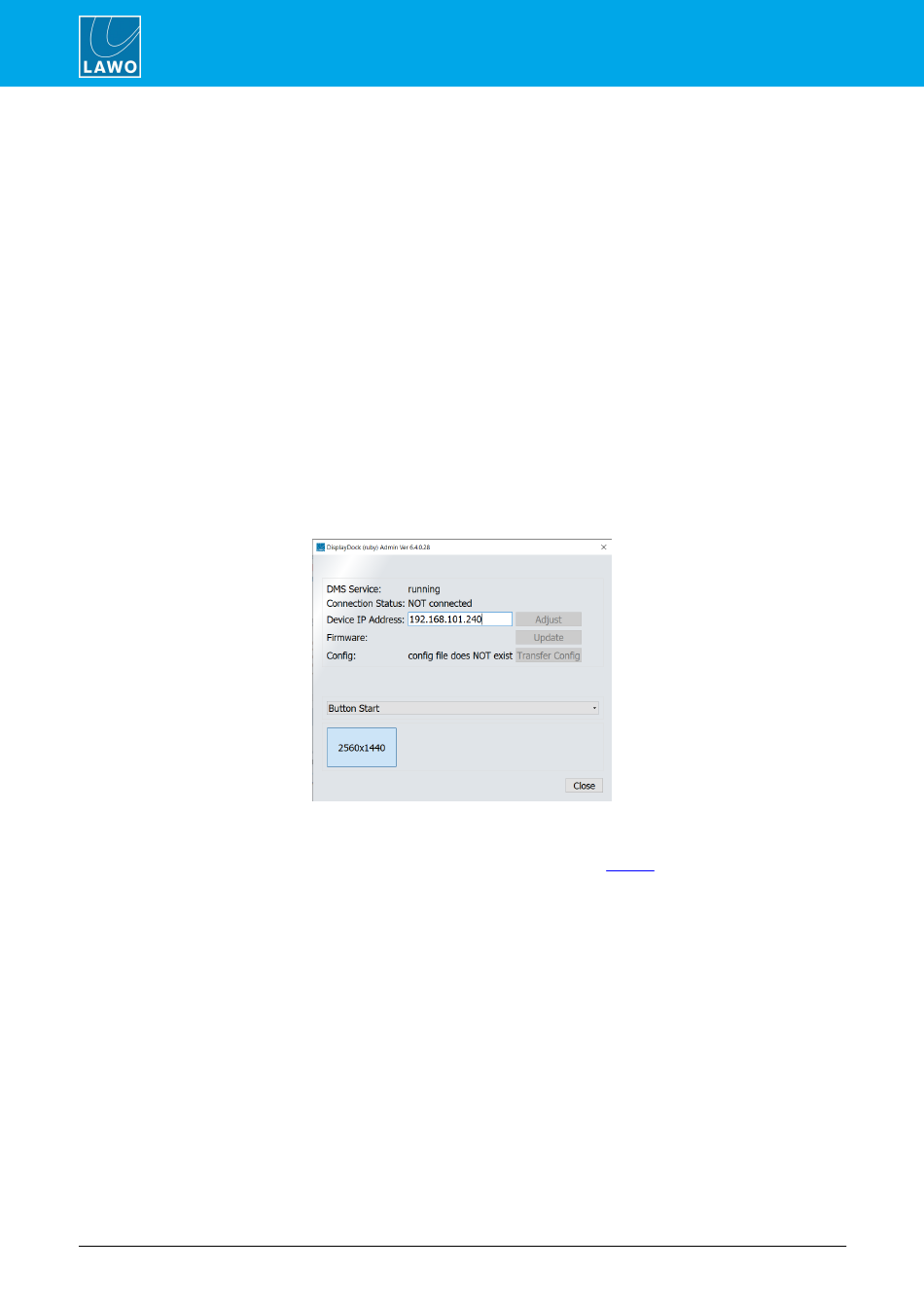

The "DMS Service" should be running and the "Connection Status" will show either connected (if there is a
valid network connection) or NOT connected (if there is no network connection):
2.
To establish a connection, enter the IP Address of your Power Core into the "Device IP Address" field,
and select Adjust.
You can check the current network settings from Power Core's front panel display. The default IP Address =
192.168.101.240
If the "Connection Status" remains as NOT connected, then there is a problem with the network
communication. Check that the "Device IP Address" has been entered correctly. Then check the physical
connections and the TCP/IP settings of your computer's Network Interface Card.
