9.6 The Sources / Sums Menu

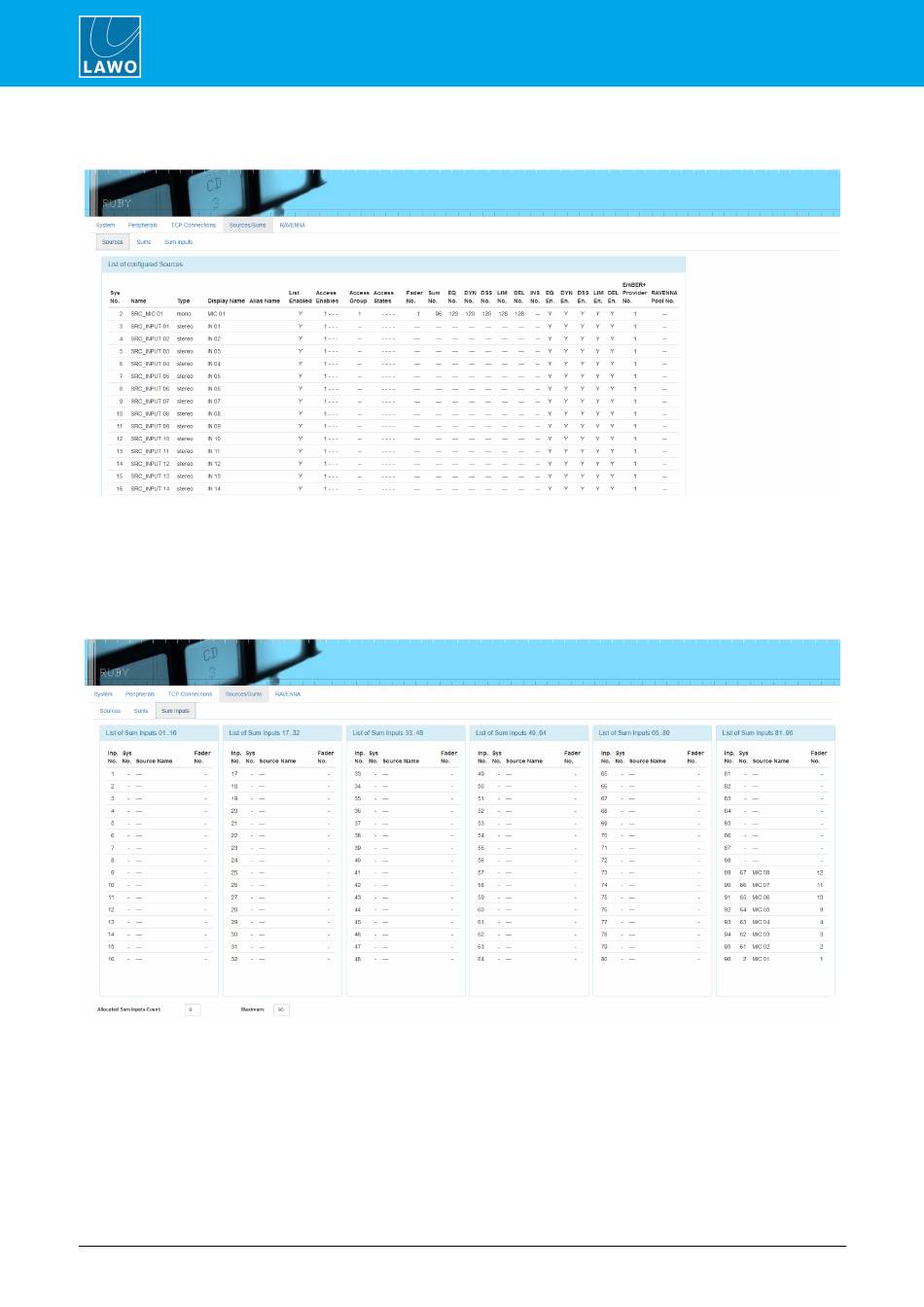

The Sources/Sums tabs provide a comprehensive listing of Power Core's input sources and summing buses:
·
Sources shows configured sources, whether they are actively assigned to a fader on the surface,
which fader they are assigned to, and whether DSP has been applied.
·
Sums lists all of the configured summing buses, each bus' name, channel configuration, whether it is
assigned to a fader on the surface, and whether DSP has been applied.
The Sum Inputs tab lists the available summing points and shows how they are utilised. The Maximum number
of parallel mix inputs is determined by your Power Core license.
