8. Operation
8.14 Editing User Labels

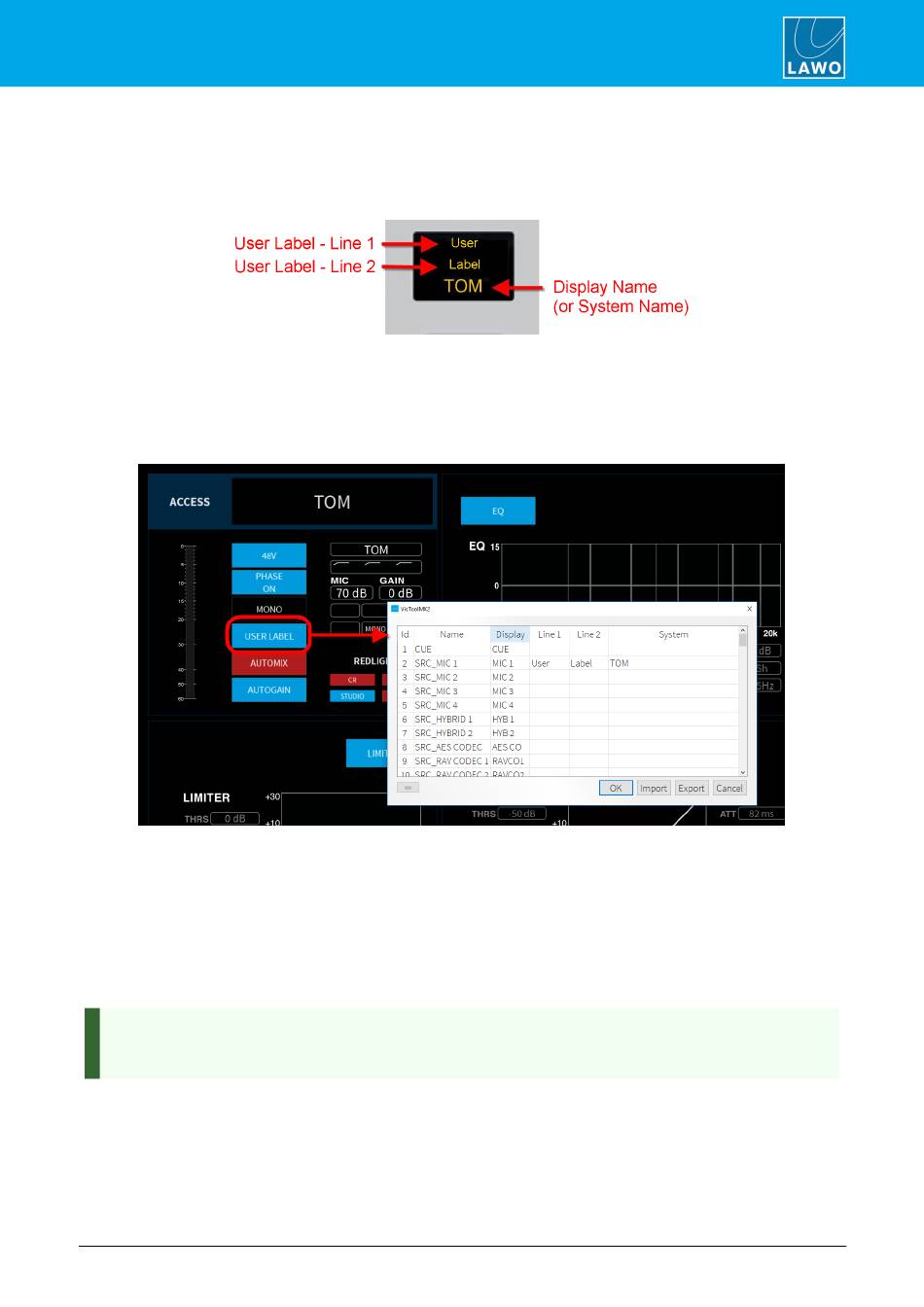

The displays at the bottom of each fader strip can show up to three lines of text:
To edit the text:
1. Start by pressing an ACCESS key (on any fader strip) - the key turns white and the "Source
Parameters" page appears on DisplayDock.
2. Select the USER LABEL button (on DisplayDock) to open the editor:
From here you can edit the labels for all sources. The Id, Name and Display fields are defined by the ON-AIR
Designer configuration and cannot be changed. By default, a source uses its Display name unless a System
name is entered.
3. Use the Line 1 and Line 2 fields to edit the two user label lines (up to 8 characters per line).
4. To replace the Display name, enter text into the System field. The System name replaces the Display
name until such time as the System field is cleared.
5. Once you have finished editing, select OK to transfer the labels to the system - the editor closes and
the labels on the control surface update.
The Export button will save all labels into an .xml file. This allows to copy the file to another DisplayDock
PC and then select Import to import the labels. When using import, the labels are applied to sources with
an identical source Name field.
ruby standard configuration User Manual
Fader Strip Labels
DisplayDock (User Label Editor)
Version: 6.4.0/2 107/179
