9. The Web UI
9.4 The Peripherals Menu
There are four informational tabs in the Peripherals menu, which display the status of installed hardware
extensions and connected ports.

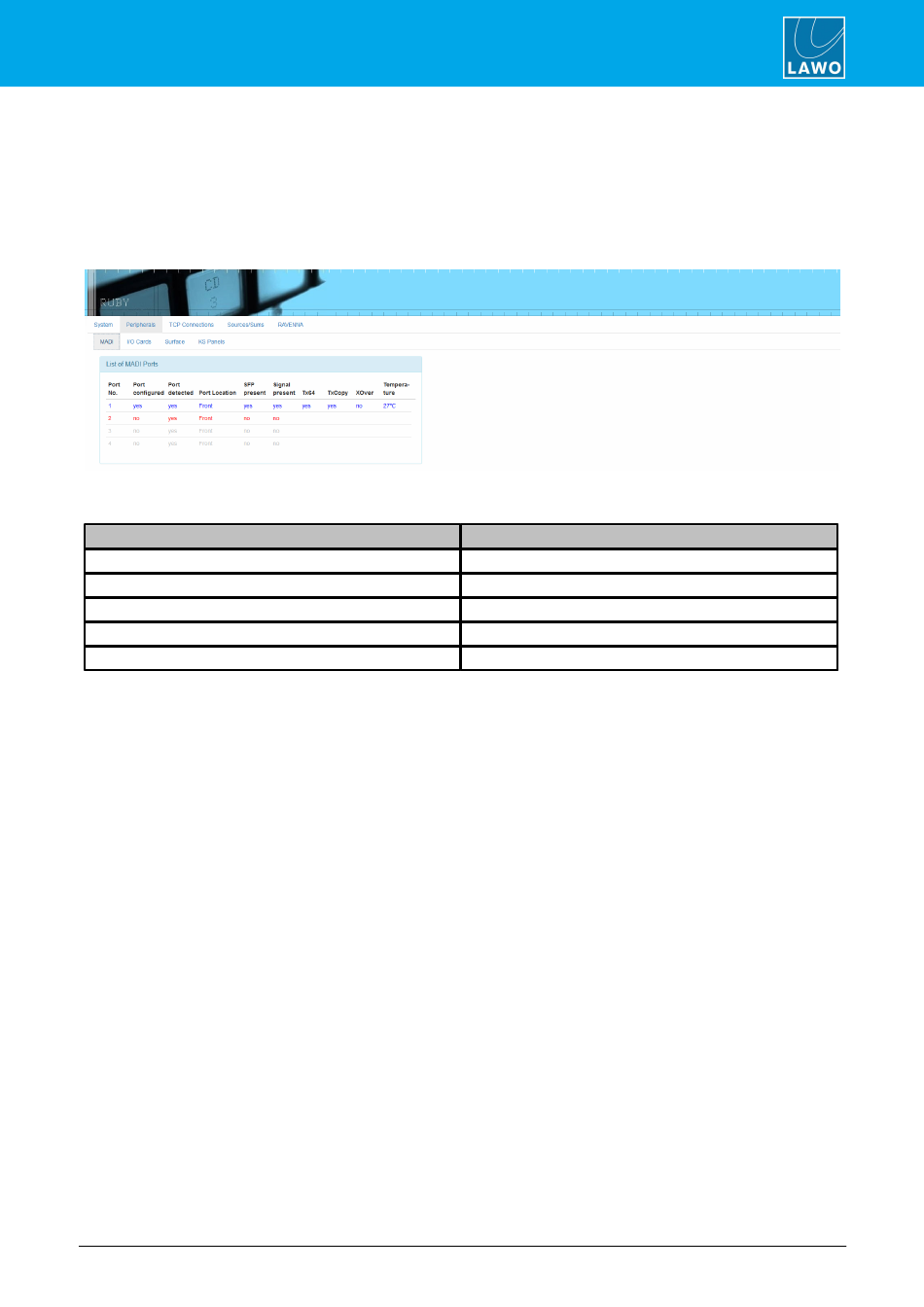

9.4.1 MADI Tab
The MADI tab gives information on the present state of MADI connections to the Power Core. The ports are
color-coded as follows:
Port Color
Grey
Red
Green
Blue
Light Blue
For each port, you will see the following information:
·
Port Configured: Shows whether the port has been configured properly using the ON-AIR Designer.
·
Port Detected: Shows whether the port has been detected correctly by the hardware.
·
Port Location: Indicates the physical location of the port on the Power Core unit.
·
SFP Present: Shows whether an SFP connection has been installed on the specified port.
·
Signal Present: Confirms port signal activity.
·
Tx64: "Yes" if Tx64 mode is active; blank if Tx56 mode is in use.
·
TxCopy & XOver: Indicates whether this port is mirrored with another port for signal redundancy. This
setting is selected using the ON-AIR Designer software.
·
Temperature: If an SFP is installed, displays current temperature.
ruby standard configuration User Manual
Meaning
not configured
signal not present
signal present
signal present & active
signal present & not active
