8.5 Assigning Fader Strips
Any available source can be assigned to any fader strip. This allows you to choose which inputs/sources are
active in the mix. Please note:
·
A source cannot be assigned to more than one fader strip.
·
A fader strip cannot be reassigned, or a source moved, if the fader is open (to prevent on-air sources
being removed by accident).
8.5.1 Assigning a Source to a Fader
1. Double-press an ACCESS key (it turns yellow) - the fader strip switches into "strip assign" mode, and
the "Source Assignment" buttons appear on DisplayDock.
Note that you can double-press either ACCESS 1 or ACCESS 2 to assign the main or alternate layer.

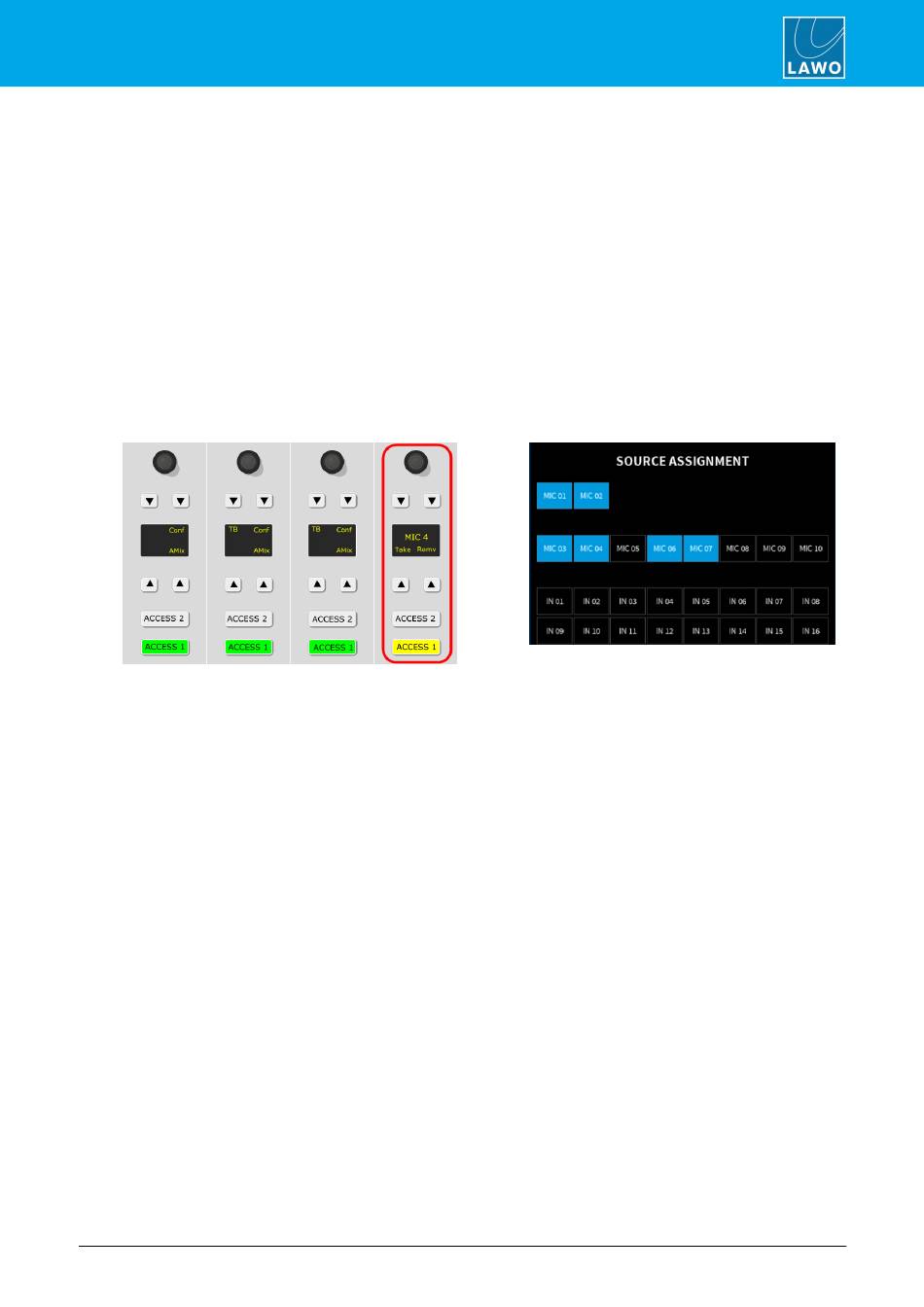

Fader Strips (source assign mode)
On DisplayDock, the buttons are color-coded to show the current status of each source:
·
Black = source not assigned and available.
·
Blue = source assigned and available (its fader is closed).
·
Red = source assigned and NOT available (its fader is open).
If you choose a blue source, then it will move from its existing location to the fader strip in access.
You cannot choose a red source as it is deemed to be on-air. In this instance, first find the source on the
surface and close its fader - the button color changes from red to blue, and the source can be selected.
ruby standard configuration User Manual
DisplayDock (source assign view)
Scroll down for more sources.
