8. Operation
8.10.3 The METERING Page
Other signals can be metered by pressing the METERING button (on the DOCK):
The page is divided into two rows to meter outputs (at the top) and inputs (at the bottom). All of the PPMs are
dynamic Peak Program Meters and use a digital scale relative to 0dBFS. The output meters include momentary
loudness metering (as described earlier).
Output Metering
On the top row are 8 meters which are switched using the on-screen buttons: MAIN METER, N-1 INPUT
METER and N-1 RAVENNA METER. These meter the summing buses (PGM & AUX), plus the N-1 returns for
INPUT sources 1 to 4 and RAVENNA sources 1 to 8.
Input Metering
On the bottom row are 8 channel meters which are switched using the on-screen buttons: 1-8, 9-16, 17-24 and
25-32. This allows you to meter up to 32 faders (for a maximum size surface).
ruby standard configuration User Manual

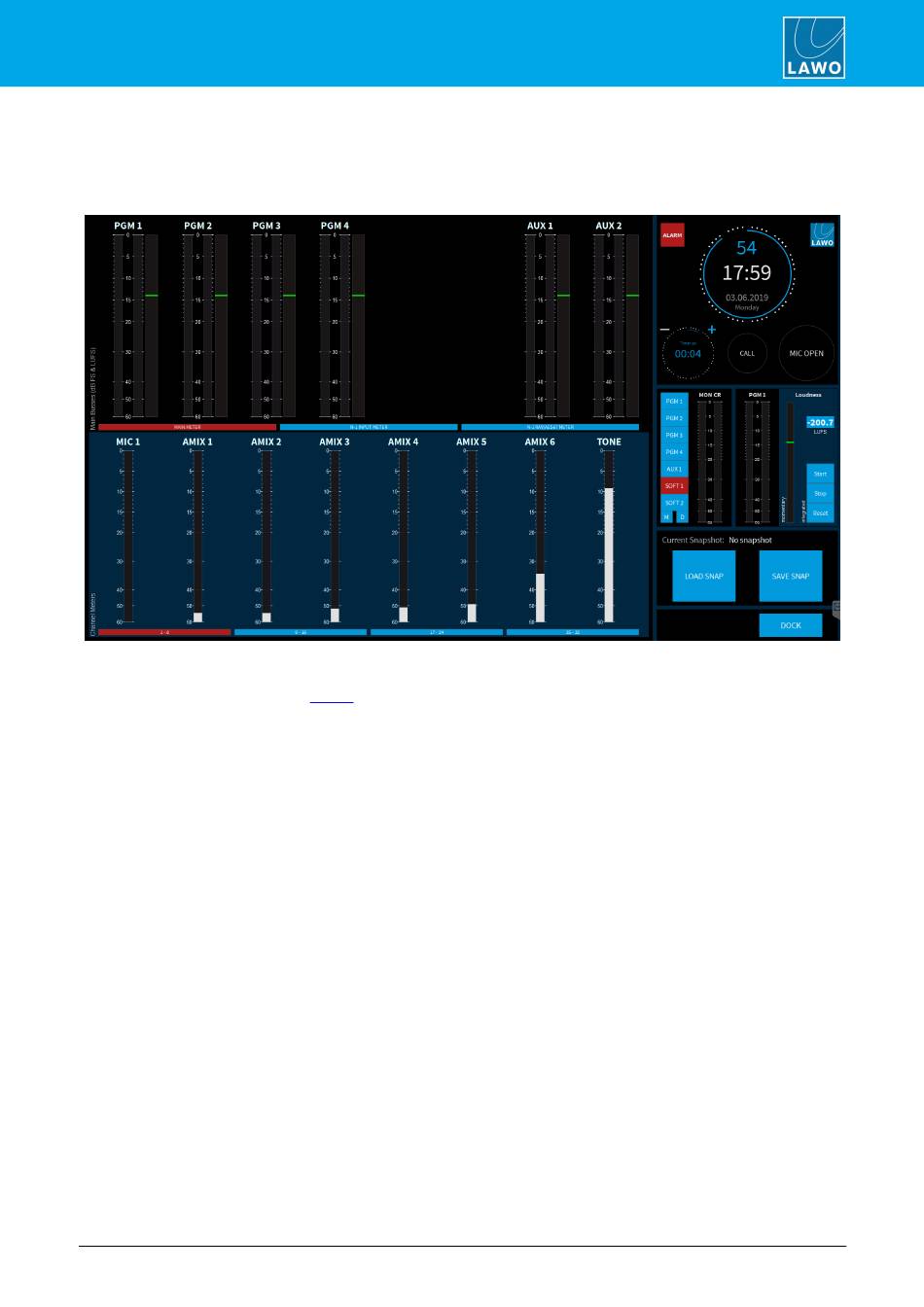

DisplayDock Metering page
Version: 6.4.0/2
89/179
