8. Operation
8.9.8 EQ
EQ parameters are available for all sources.
The EQ provides a 3-band parametric EQ plus high-pass and low-pass filters. The filters can be used either as
fixed slope filters (12dB per octave) or shelving EQ.
Ø
To access the EQ parameters, press an ACCESS key followed by EQ on the Central Module.

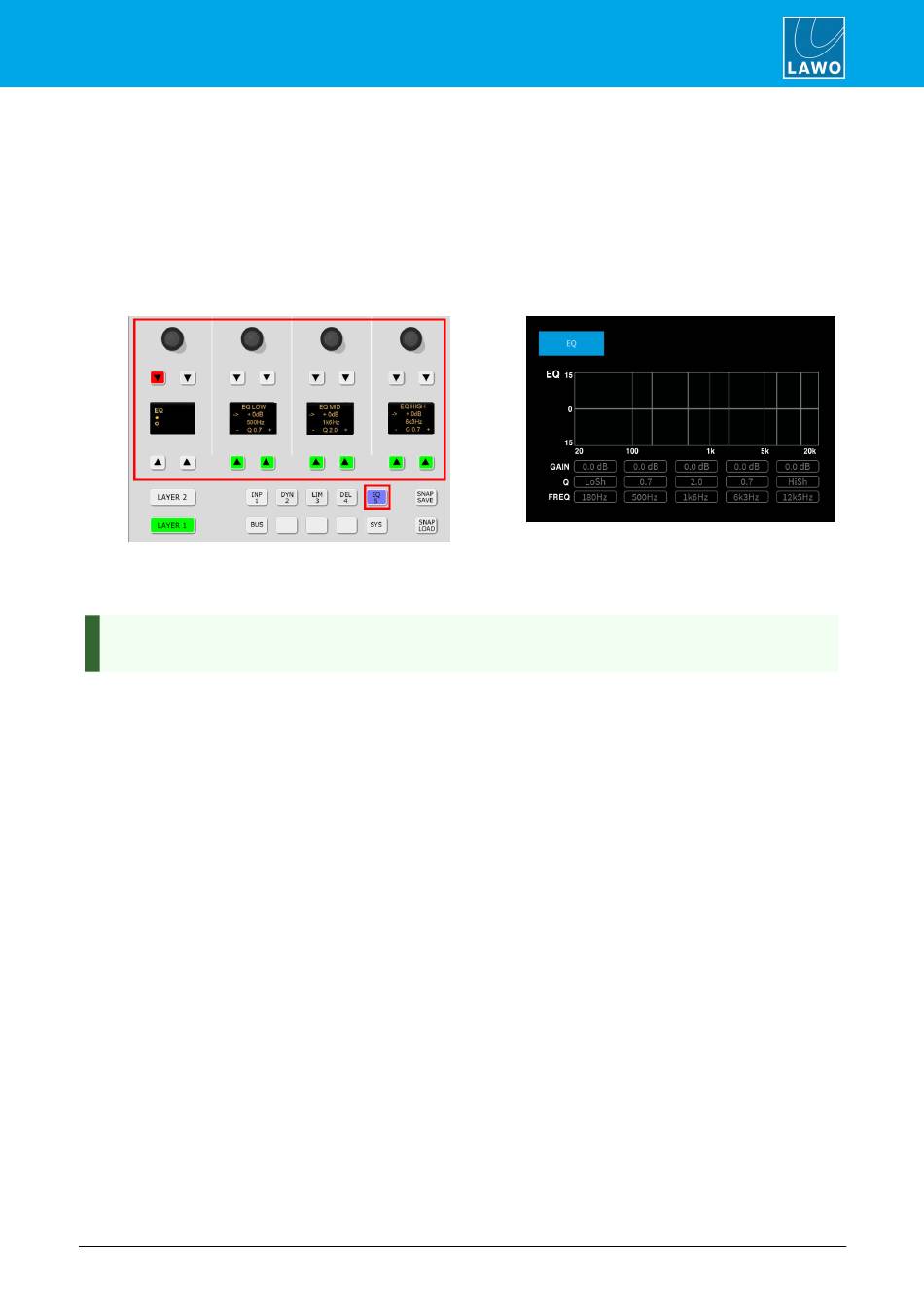

The fader strip controls update to show the last page adjusted - in our example, the 3-band equalizer:
Surface Controls (3-band EQ)
Ø
Press down on the left (master) rotary control to access the second page (for the 2-band Filters).
Ø
Press again to return to the 3-band parametric EQ (page 1).
The EQ graph on DisplayDock shows all five bands of EQ simultaneously. This provides a great overview of
the complete section.
