Stream Tuning Options
Ø
Defining a Fixed Time Offset
By configuring a RAVENNA Static Stream element, it is possible to define a fixed Time Offset using the Fixed
Jitter Reserve field:
Once a non-zero value is entered, a fixed Time Offset is applied (instead of automatic or manual tuning). The
value entered must include the path delay and desired minimum buffer margin as follows:
Fixed Jitter Reserve = Path Delay + minimum Buffer Margin.
The resulting Time Offset is then calculated from the configured value and the packet size of the incoming
stream:
Time Offset = Samples per Frame (packet size) + Fixed Jitter Reserve
If you want to define a fixed playout time, you have to subtract the packet size from the fixed jitter reserve.
In the Stream Destinations List, the Path Delay is displayed as 0 (as there is no measurement) and is included
in the displayed Jitter Reserve.
You can tell whether a fixed Time Offset has been defined by the configuration or Web UI by looking at the
Path Delay and Jitter Reserve fields:
·
Path Delay = 0 and Jitter Reserve > 0 indicates that the ON-AIR Designer Fixed Jitter Reserve field is
active (> 0).
·
Path Delay = 0 and Jitter Reserve = 0 indicates that the Web UI Set Time Offset button has been used
to set the offset.
If the Time Offset of a stream with a Fixed Jitter Reserve is changed via the Web UI, then it will be reset to the
configured value (instead of automatic tuning) if late packets arrive repeatedly at the receiver.
142/179

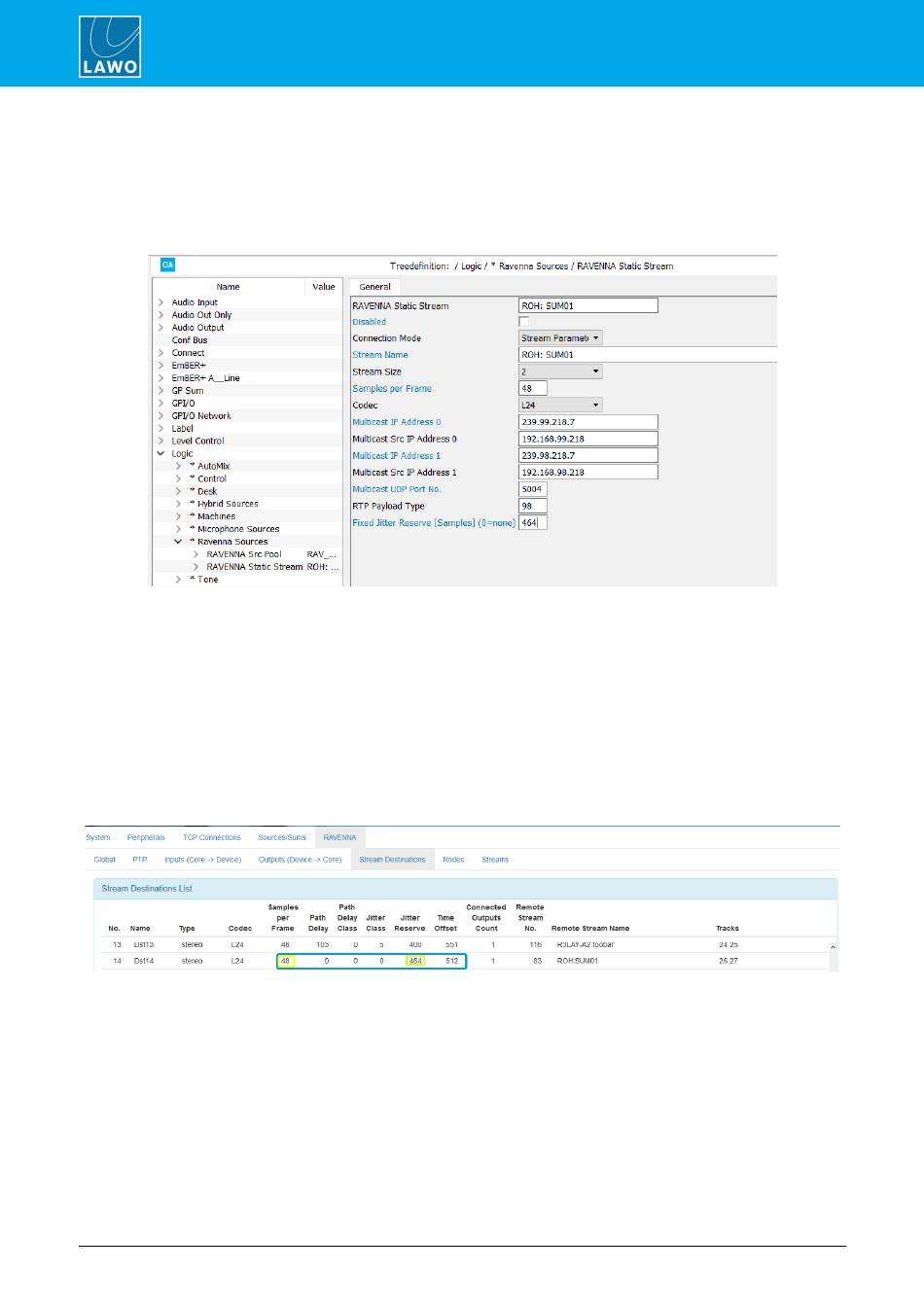

Logic -> RAVENNA Static Stream
