8. Operation
8.9 DSP Parameters
The remaining source parameters can be adjusted by selecting a source.
8.9.1 Signal Flow
The DSP available for each source is defined by the configuration and cannot be changed by the user.
All sources have EQ, Dynamics, a Limiter and Delay. In addition, MIC 1 - 10 have a De-Esser and Automix.
ruby standard configuration User Manual

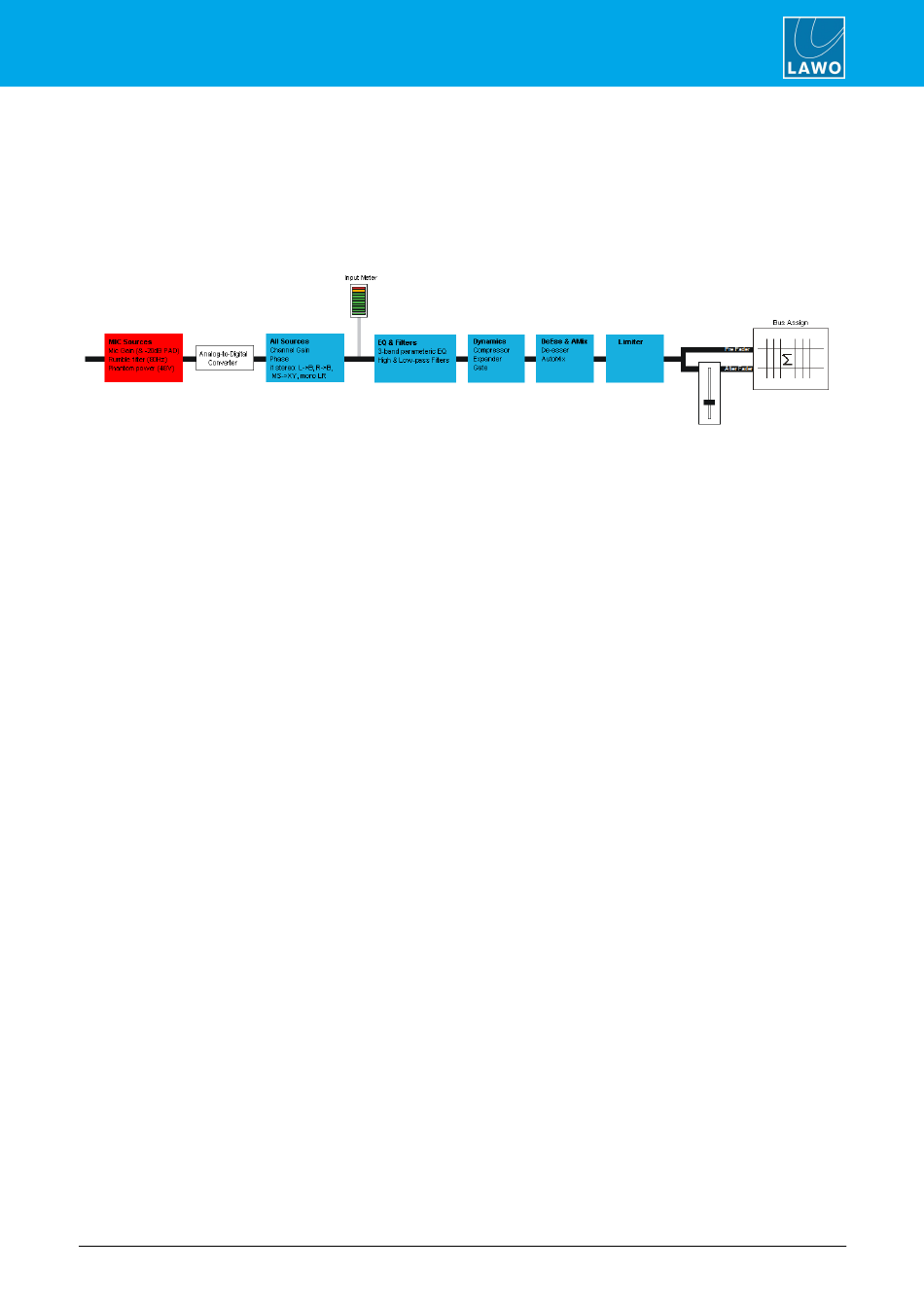

MIC Source Signal Flow
