8. Operation
8.8
Input Gain & Pan
The quickest way to adjust input gain, or the left/right pan position, is to turn the fader strip rotary control.
For MIC sources, two separate input gains are available: Mic gain (in the analog mic preamp) and channel
Gain (applied in the digital domain). For other sources, only channel Gain is available.
For a mono source, you will see left/right pan. For a stereo source, this changes to left/right balance.
1.
Turn the rotary control to adjust the first parameter - you will see both its name (e.g. Mic gain) and
value (e.g. +42dB).
2.
Press down on the rotary control to step to the next parameter (e.g. channel Gain).
3.
Press down again to reach the next parameter (e.g. left/right pan).
4.
If you keep tapping down, then the sequence repeats. The available parameters for a mono MIC
source are shown above.
To interrogate parameters without making a change, tap down on the rotary control without turning - the
display will show the parameter and its current value.
For more information on gain ranges and other input parameters, please see
ruby standard configuration User Manual

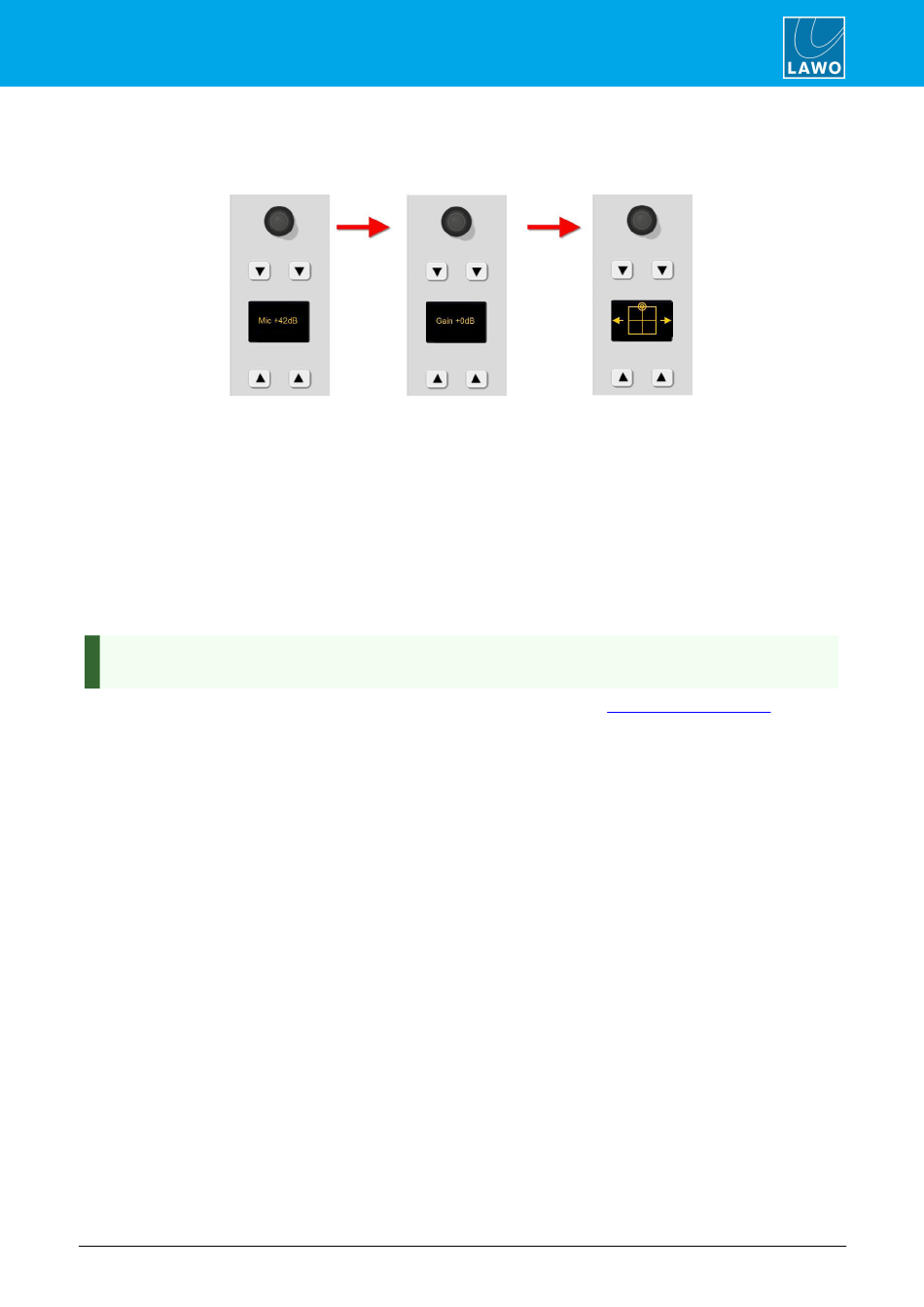

Rotary Control Parameters (MIC source)
Version: 6.4.0/2
Input & Pan
Parameters.
69/179
