4. The Hardware
4.3.3 IO Cards

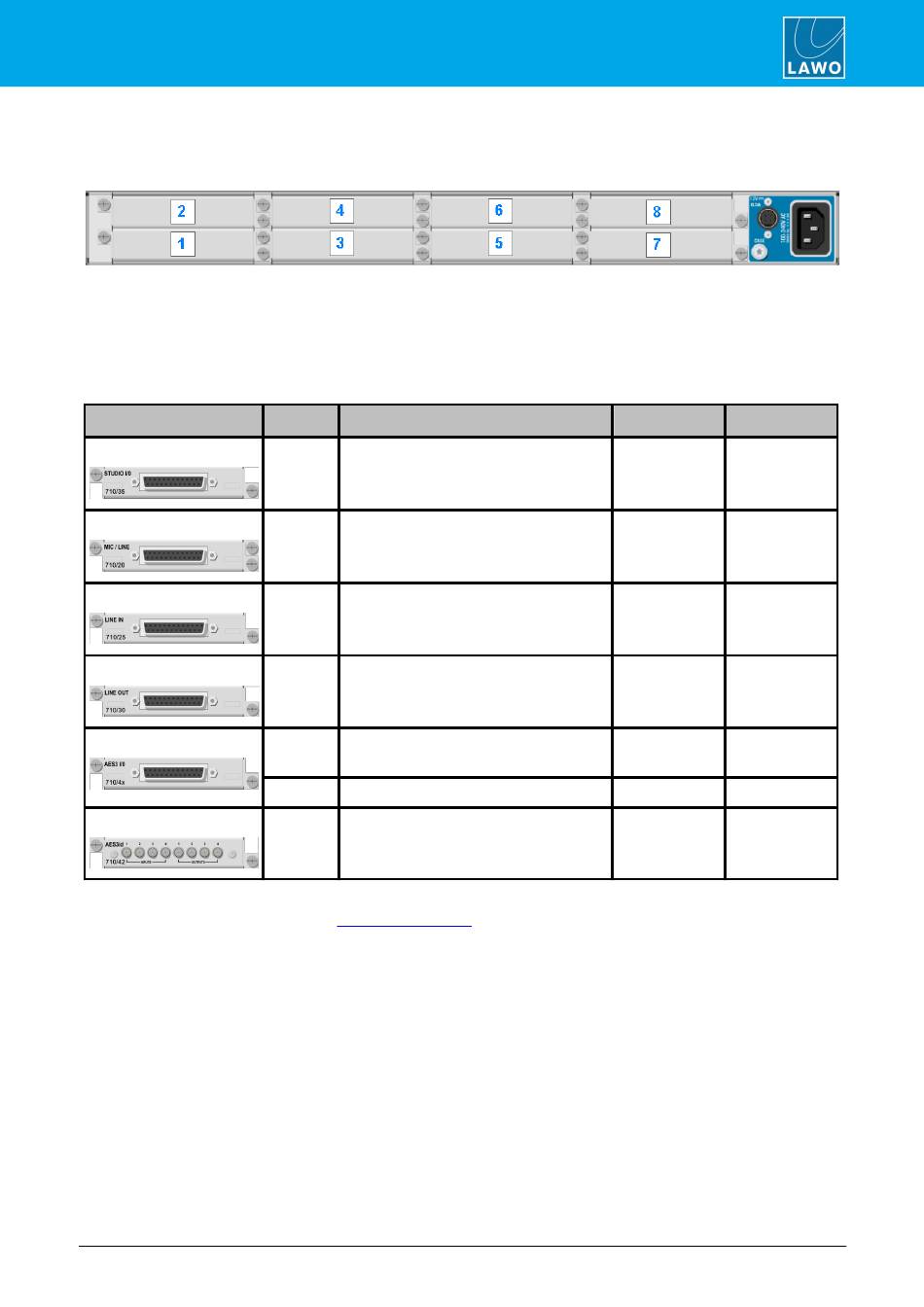

Up to eight hot-pluggable IO cards can be fitted to the expansion slots at the rear of the unit.
In the ruby standard configuration, slot 1 is always fitted with a STUDIO IO card and slot 2 with a MIC/LINE
card. Additional STUDIO IO and MIC/LINE cards are not permitted. Slots 3 to 8 can be freely configured with
any combination of LINE IN, LINE OUT and AES3 IO. These cards are optional and must be ordered
separately using the part numbers in the table below.
The permitted IO card options are as follows.
STUDIO IO
MIC / LINE IN
LINE IN
LINE OUT
AES3 IO
AES3id IO
*All DB-25 connectors are wired according to the AES59 (TASCAM) standard, except for the Headphone
outputs on the STUDIO IO card. See
ruby standard configuration User Manual
Rear Panel Expansion Slots
Part Type Description
710/35 2 mono Mic/Line inputs
1 stereo Line output
2 stereo Headphone outputs
710/20 8 mono Mic/Line inputs
710/25 8 mono or 4 stereo Line inputs
710/30 8 mono or 4 stereo Line outputs
710/40 4 stereo AES3 inputs with SRC
4 stereo AES3 outputs
710/41 as for 710/40 but with bit transparency
710/42 as for 710/41 but with HD-BNCs
Connector Pin-Outs
Version: 6.4.0/2
Connector
1 x DB-25*
1 x DB-25*
1 x DB-25*
1 x DB-25*
1 x DB-25*
1 x DB-25*
8 x HD-BNC
for wiring information.
Fitted to
Slot 1 (included)
Slot 2 (included)
Slots 3 to 8
Slots 3 to 8
Slots 3 to 8
Slots 3 to 8
Slots 3 to 8
