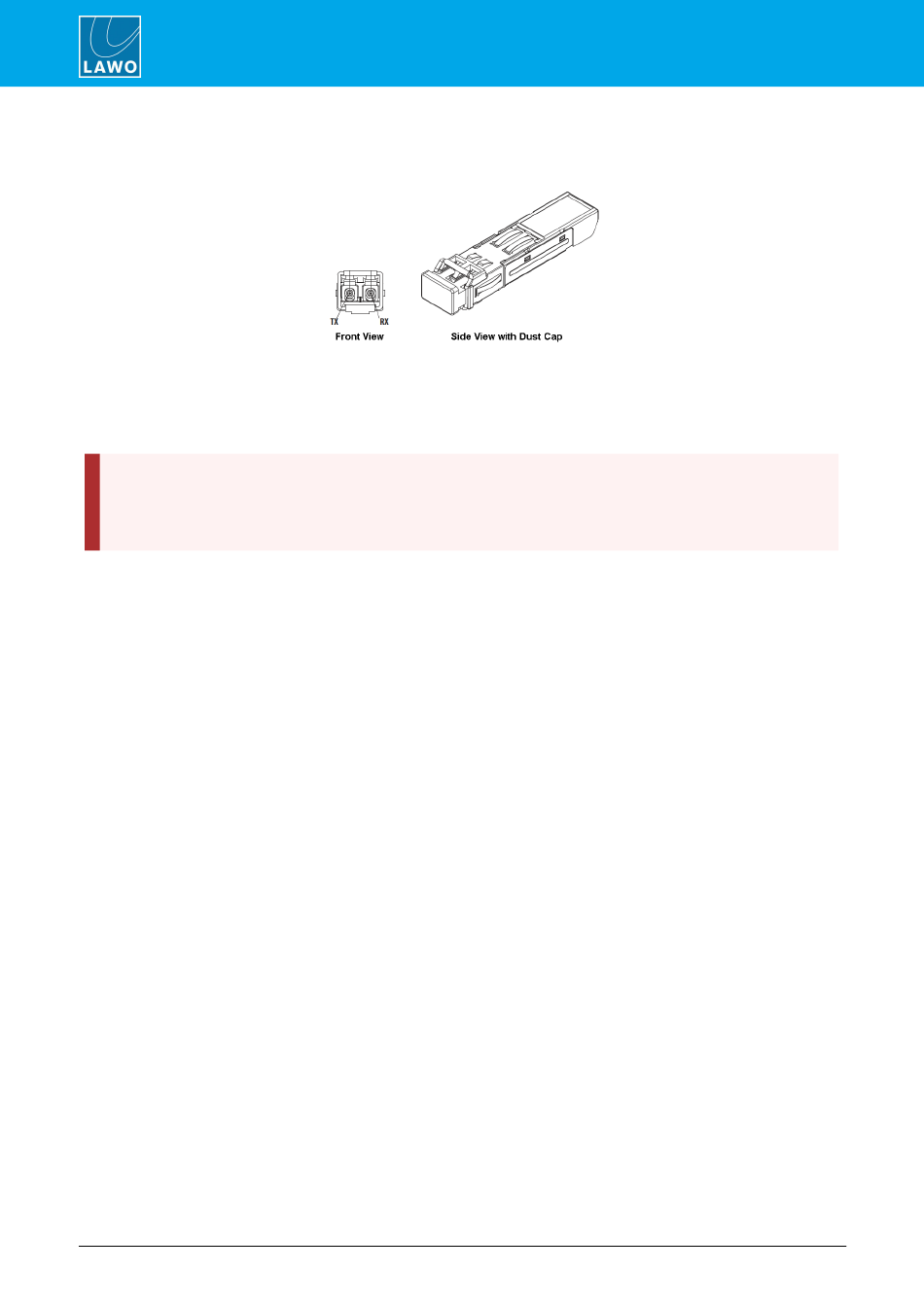

Installing the SFPs
The SFP modules are hot-pluggable, and so they can be fitted or exchanged while the device is powered.
1.
Remove the dust caps from both the port and SFP module.
Store these carefully so that they can be replaced if a module is removed.
2.
Push the SFP module into the rectangular slot.
3.
Press gently and firmly until the module locks into position.
Attention: Before removal, please unlock SFP modules to avoid mechanical damage to the slots.
If a module is removed, please refit the port's dust cap to protect the internal components.
You must use the correct fiber type for your remote device. Using the wrong fiber type or exceeding the
maximum optical input power can result in malfunction of, or damage to, the optical device.
