Ø
To save a Source snapshot:
1.
Press an ACCESS key (on the control surface) to select the source you wish to save.
The ACCESS key turns white and the
SNAP button has updated to SAVE SOURCE.
2.

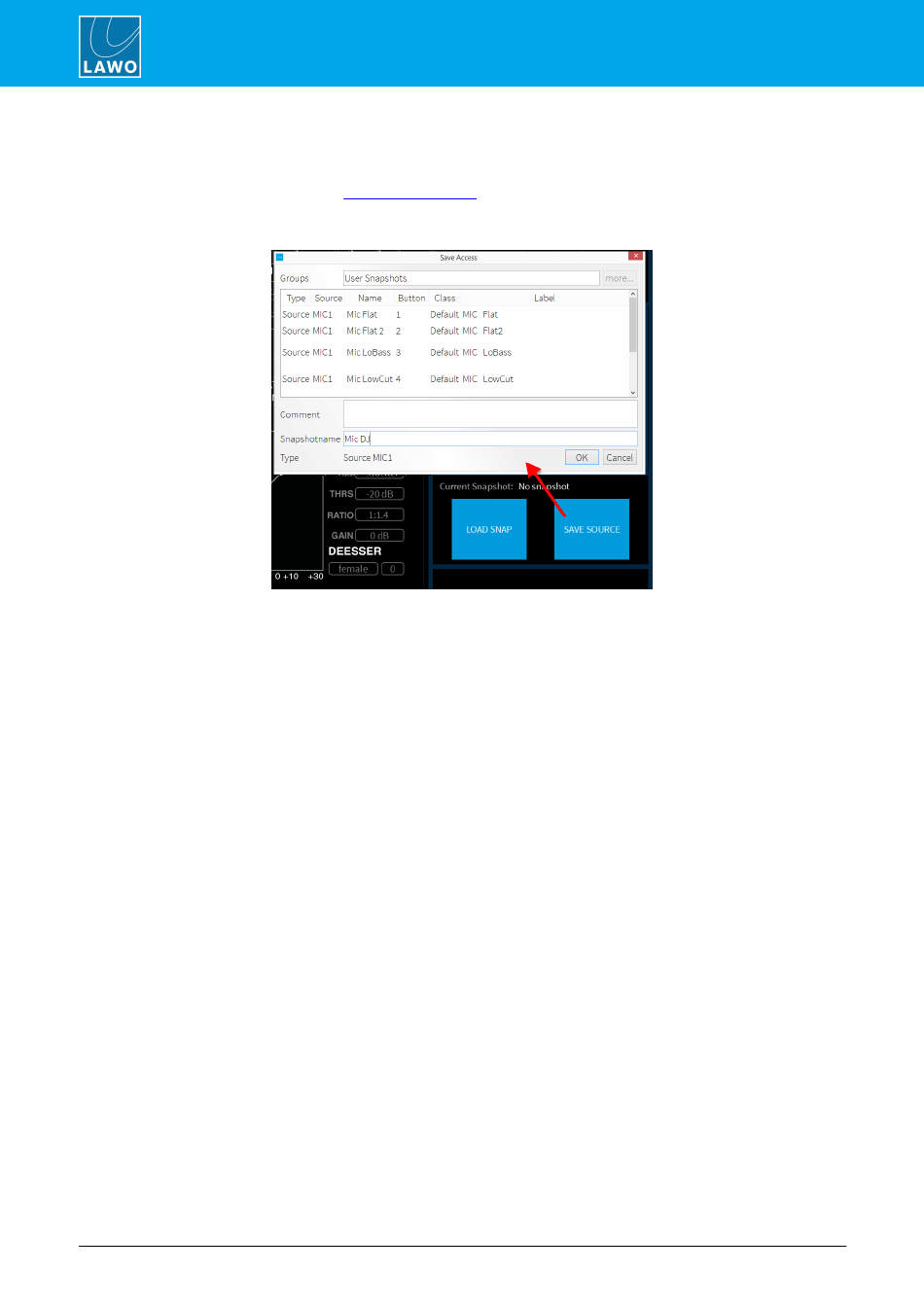

Select SAVE SOURCE - the "Save Access" window appears:
2.
Enter a snapshot name (e.g. Mic DJ) and select OK - the window closes and the settings are saved.
Note that the snapshot Group and Type cannot be changed. You can enter text to describe the snapshot into
the Comment field if you wish.
112/179
Source Parameters
page appears on DisplayDock. Notice that the SAVE
Version: 6.4.0/2
8. Operation
ruby standard configuration User Manual
