3-band Parametric Equalizer

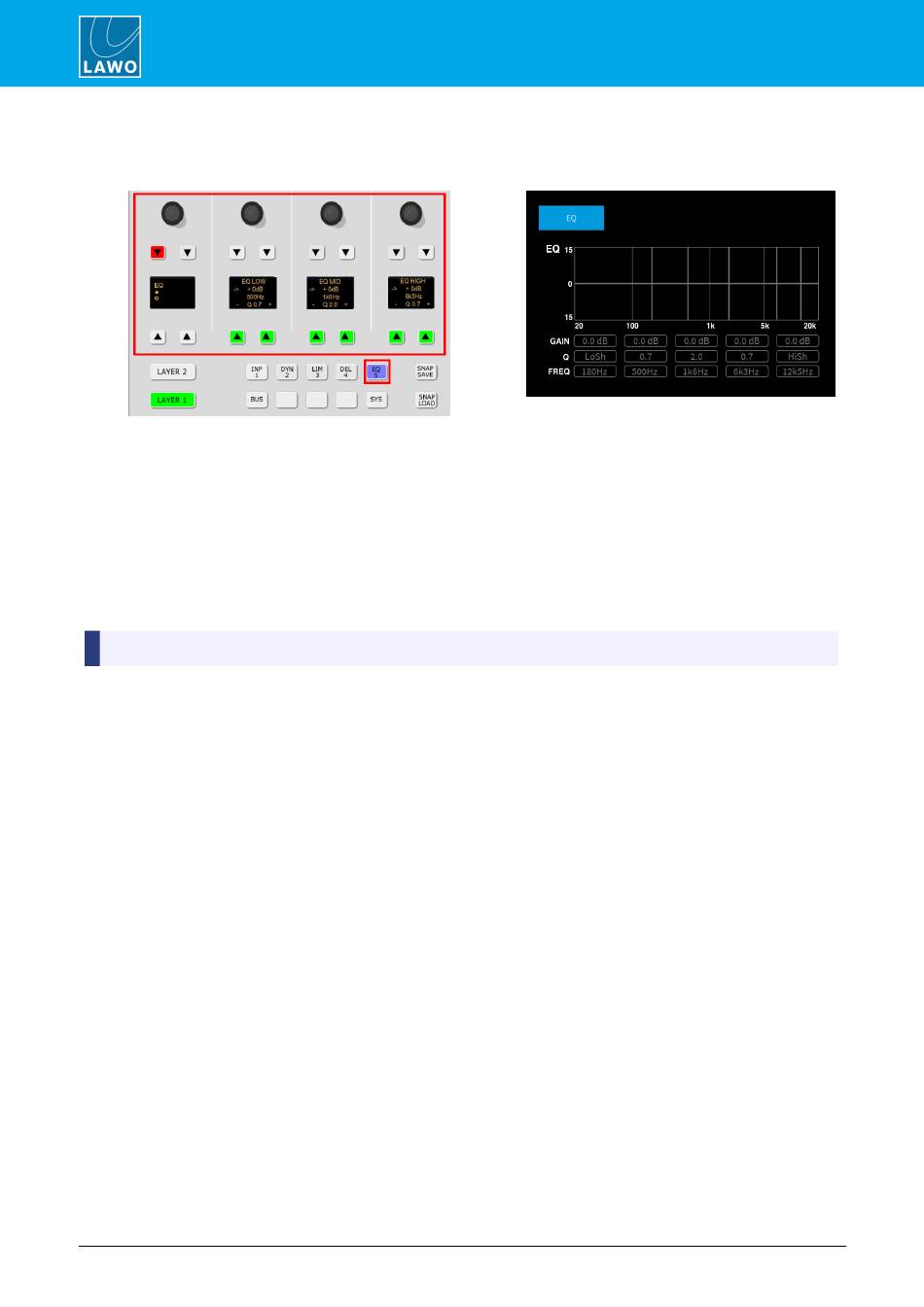

Surface Controls (3-band EQ)
For the 3-band parametric EQ, each band can be adjusted separately using the three sets of controls: EQ
LOW, EQ MID and EQ HIGH.
For each band, the following parameters are available:
·
Gain: Low, Mid and High - Gain can be adjusted from -15dB to +15dB.
·
Frequency: Low, Mid and High - Frequency can be adjusted from 20Hz to 18kHz.
·
Q - press the + or – buttons to increase or decrease the Q for each band. Q can be adjusted from 0.7
to 5.0.
For the GAIN/FREQ control, turn to adjust the Gain, and then press down and turn to adjust Frequency.
The EQ button acts as the master on/off for the complete section: 3-band parametric EQ + 2-band filters.
