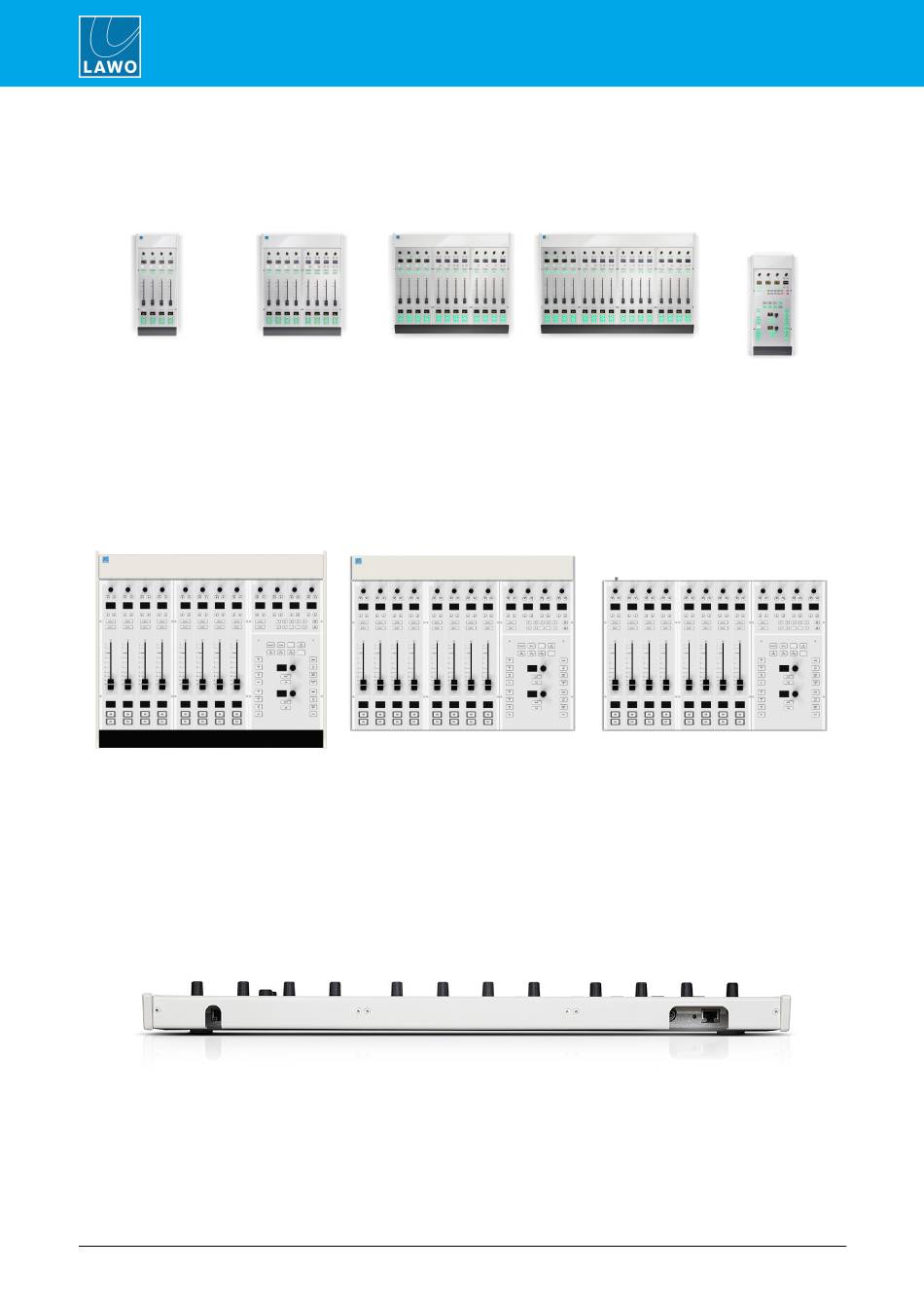

4.2.2 Extender Frame Layouts
The extender frames can be added to increase the fader count or create a split surface.
4-fader extender 8-fader extender
4.2.3 Placement Options
Each frame is available in one of three versions to provide different placement options. The version must be
specified at the time of ordering; there is no possibility to convert the frame later.
Table Top
The differences in construction are:
·
Table Top - designed for table-top placement. This version includes a leather front buffer and stylish
side/rear profiles.
·
Countersunk - designed to fit flush within your studio furniture. This version comes with different front,
rear and side profiles.
·
Countersunk Short - the same as Countersunk but with shorter side profiles and no upper cover plate
to hide the cables (i.e. the rear panel connectors will be visible).
10/179
12-fader extender
Countersunk
Table Top Surface (rear view)
Version: 6.4.0/2
4. The Hardware
16-fader extender Central Module
Countersunk Short
