CVM-C10

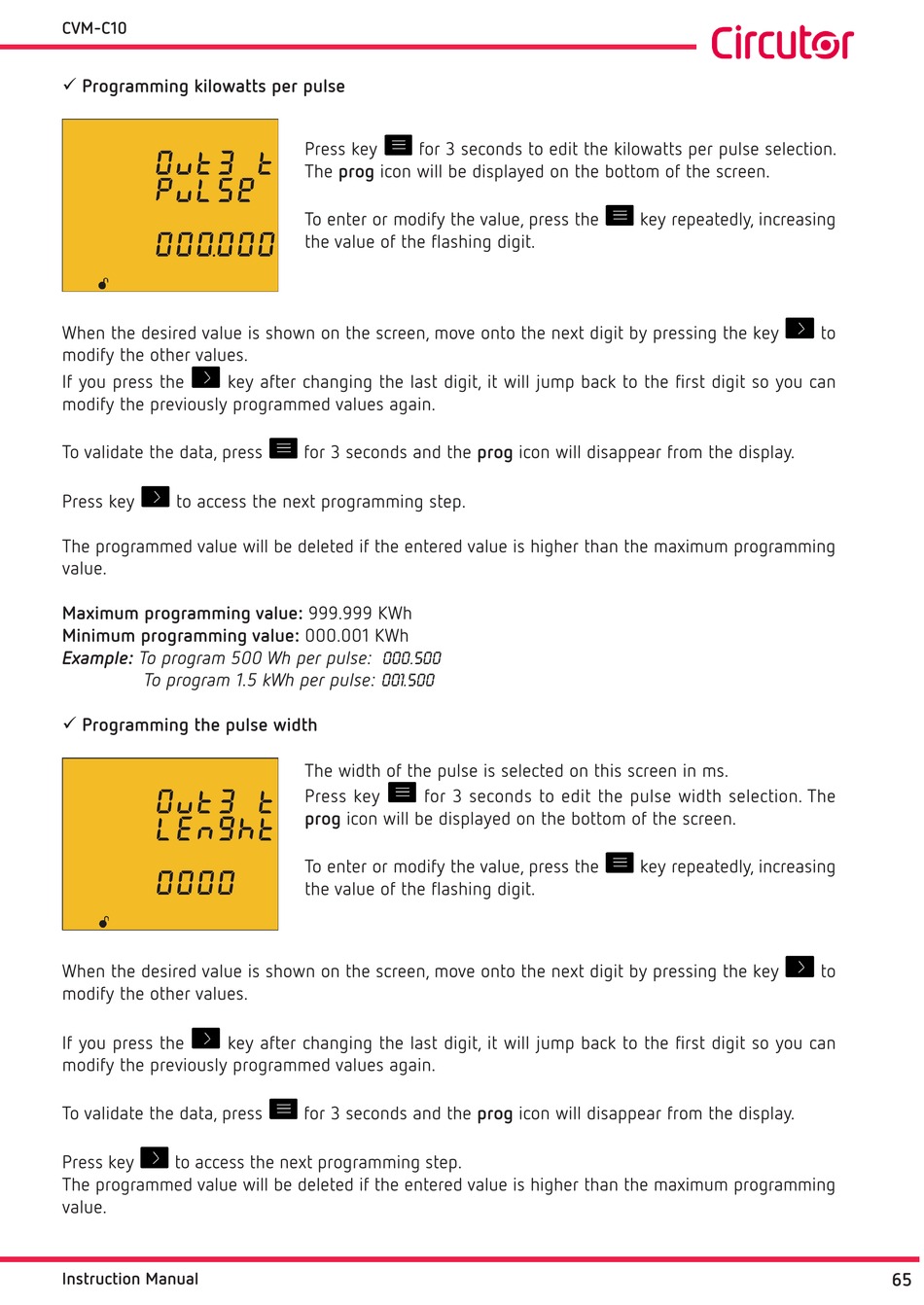

 Programming kilowatts per pulse
When the desired value is shown on the screen, move onto the next digit by pressing the key
modify the other values.
If you press the key after changing the last digit, it will jump back to the first digit so you can
modify the previously programmed values again.
To validate the data, press
Press key to access the next programming step.
The programmed value will be deleted if the entered value is higher than the maximum programming
value.
Maximum programming value: 999.999 KWh
Minimum programming value: 000.001 KWh
Example: To program 500 Wh per pulse: 000.500
To program 1.5 kWh per pulse: 001.500
 Programming the pulse width
When the desired value is shown on the screen, move onto the next digit by pressing the key
modify the other values.
If you press the key after changing the last digit, it will jump back to the first digit so you can
modify the previously programmed values again.
To validate the data, press
Press key to access the next programming step.
The programmed value will be deleted if the entered value is higher than the maximum programming
value.
Instruction Manual
Press key for 3 seconds to edit the kilowatts per pulse selection.
The prog icon will be displayed on the bottom of the screen.
To enter or modify the value, press the
the value of the flashing digit.
for 3 seconds and the prog icon will disappear from the display.
The width of the pulse is selected on this screen in ms.
Press key for 3 seconds to edit the pulse width selection. The
prog icon will be displayed on the bottom of the screen.
To enter or modify the value, press the
the value of the flashing digit.
for 3 seconds and the prog icon will disappear from the display.
key repeatedly, increasing
key repeatedly, increasing
to
to
65
