CVM-C10
To validate the data, press
Press key to access the next programming step.

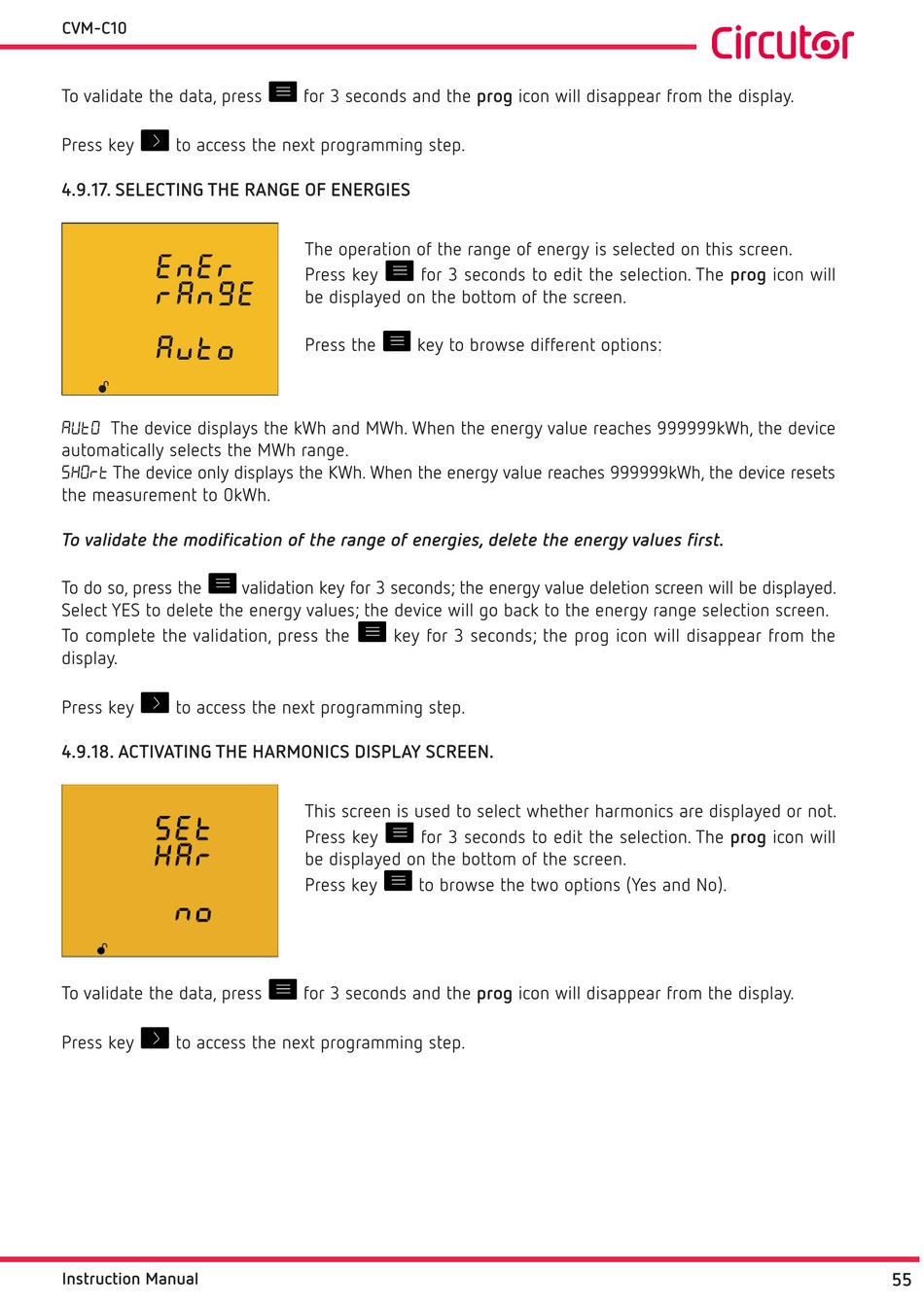

4�9�17� SELECTING THE RANGE OF ENERGIES
AUTO The device displays the kWh and MWh. When the energy value reaches 999999kWh, the device
automatically selects the MWh range.
SHORT The device only displays the KWh. When the energy value reaches 999999kWh, the device resets
the measurement to 0kWh.
To validate the modification of the range of energies, delete the energy values first.
To do so, press the
Select YES to delete the energy values; the device will go back to the energy range selection screen.
To complete the validation, press the
display.
Press key to access the next programming step.
4�9�18� ACTIVATING THE HARMONICS DISPLAY SCREEN�
To validate the data, press
Press key to access the next programming step.
Instruction Manual
for 3 seconds and the prog icon will disappear from the display.
The operation of the range of energy is selected on this screen.
Press key
be displayed on the bottom of the screen.
Press the
validation key for 3 seconds; the energy value deletion screen will be displayed.
key for 3 seconds; the prog icon will disappear from the
This screen is used to select whether harmonics are displayed or not.
Press key
be displayed on the bottom of the screen.
Press key
for 3 seconds and the prog icon will disappear from the display.
for 3 seconds to edit the selection. The prog icon will
key to browse different options:
for 3 seconds to edit the selection. The prog icon will
to browse the two options (Yes and No).
55
