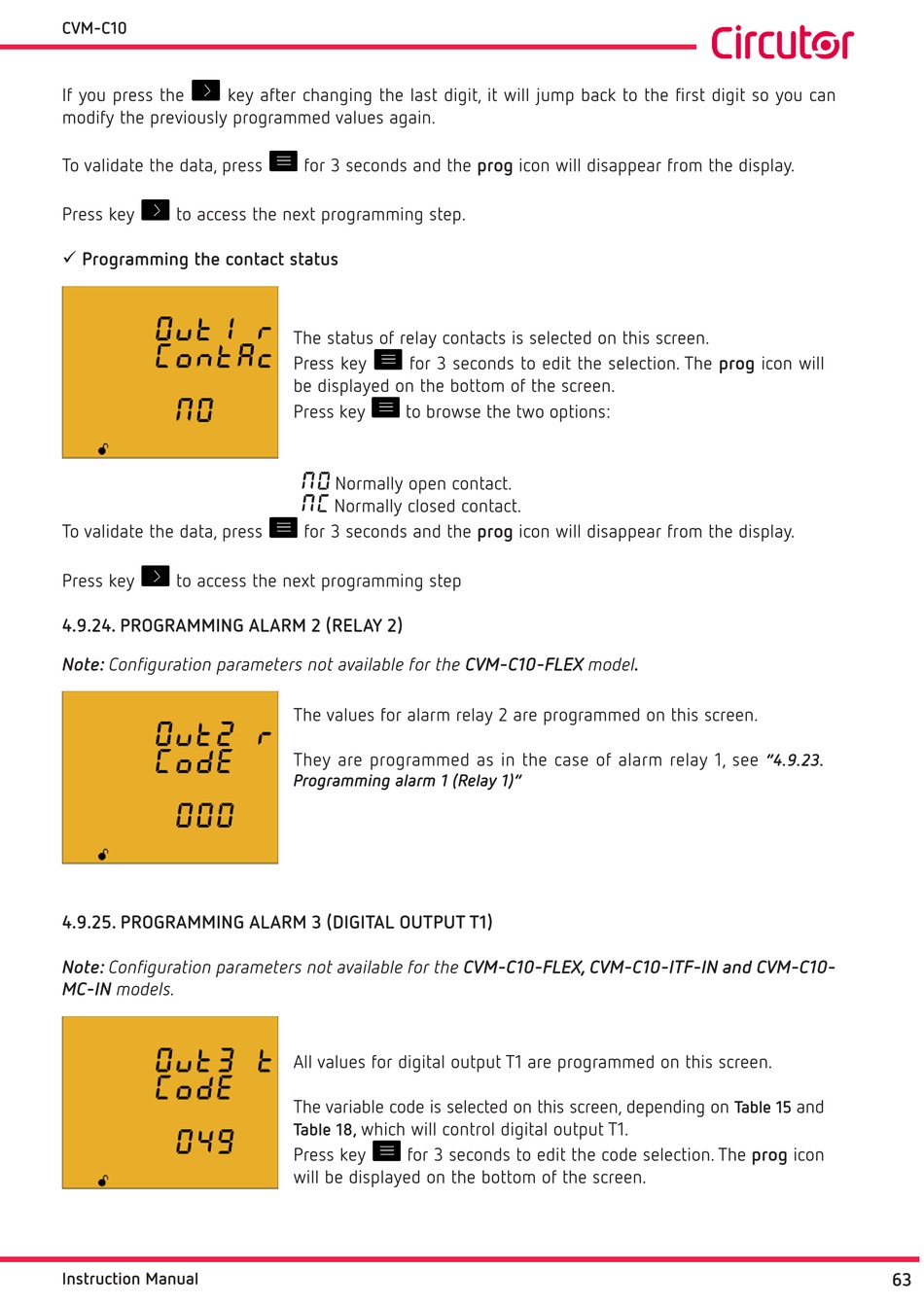

If you press the
key after changing the last digit, it will jump back to the first digit so you can
modify the previously programmed values again.
To validate the data, press
Press key
to access the next programming step.
Programming the contact status
To validate the data, press
Press key
to access the next programming step
4�9�24� PROGRAMMING ALARM 2 (RELAY 2)
Note: Configuration parameters not available for the CVM-C10-FLEX model.
4�9�25� PROGRAMMING ALARM 3 (DIGITAL OUTPUT T1)
Note: Configuration parameters not available for the CVM-C10-FLEX, CVM-C10-ITF-IN and CVM-C10-
MC-IN models.
Instruction Manual
for 3 seconds and the prog icon will disappear from the display.
The status of relay contacts is selected on this screen.
Press key
for 3 seconds to edit the selection. The prog icon will
be displayed on the bottom of the screen.
Press key
to browse the two options:
Normally open contact.
Normally closed contact.
for 3 seconds and the prog icon will disappear from the display.
The values for alarm relay 2 are programmed on this screen.
They are programmed as in the case of alarm relay 1, see
Programming alarm 1 (Relay 1)"
All values for digital output T1 are programmed on this screen.
The variable code is selected on this screen, depending on
which will control digital output T1.
Table 18,
for 3 seconds to edit the code selection. The prog icon
Press key
will be displayed on the bottom of the screen.
"4.9.23.
and
Table 15
63
