Setting Preset 99

5 - 16
This section describes how to align the cameras for Preset 99 in an ATX 200,
ATX 300, and ATX 400 room.
Setting Preset 99 for an ATX 200 Systems
To set Preset 99 for an ATX 200 system:
On the Telepresence Tool Camera Alignment tab, select Preset 99.
1
Use the camera controls to adjust the pan, tilt, and zoom so that each
2
camera views the two seating positions specified in the table on pages 5-7,
5-10, and 5-13.
Adjust the pan and zoom of each camera so that the two camera
a
alignment marks on the table are as close as possible to the edges of
the displayed video. Refer to the
Marks section on page 2-11.
Adjust the tilt so that the top edge of the table aligns with the yellow
b
lines on the left and right sides of each display as shown in
Figure 5-11.

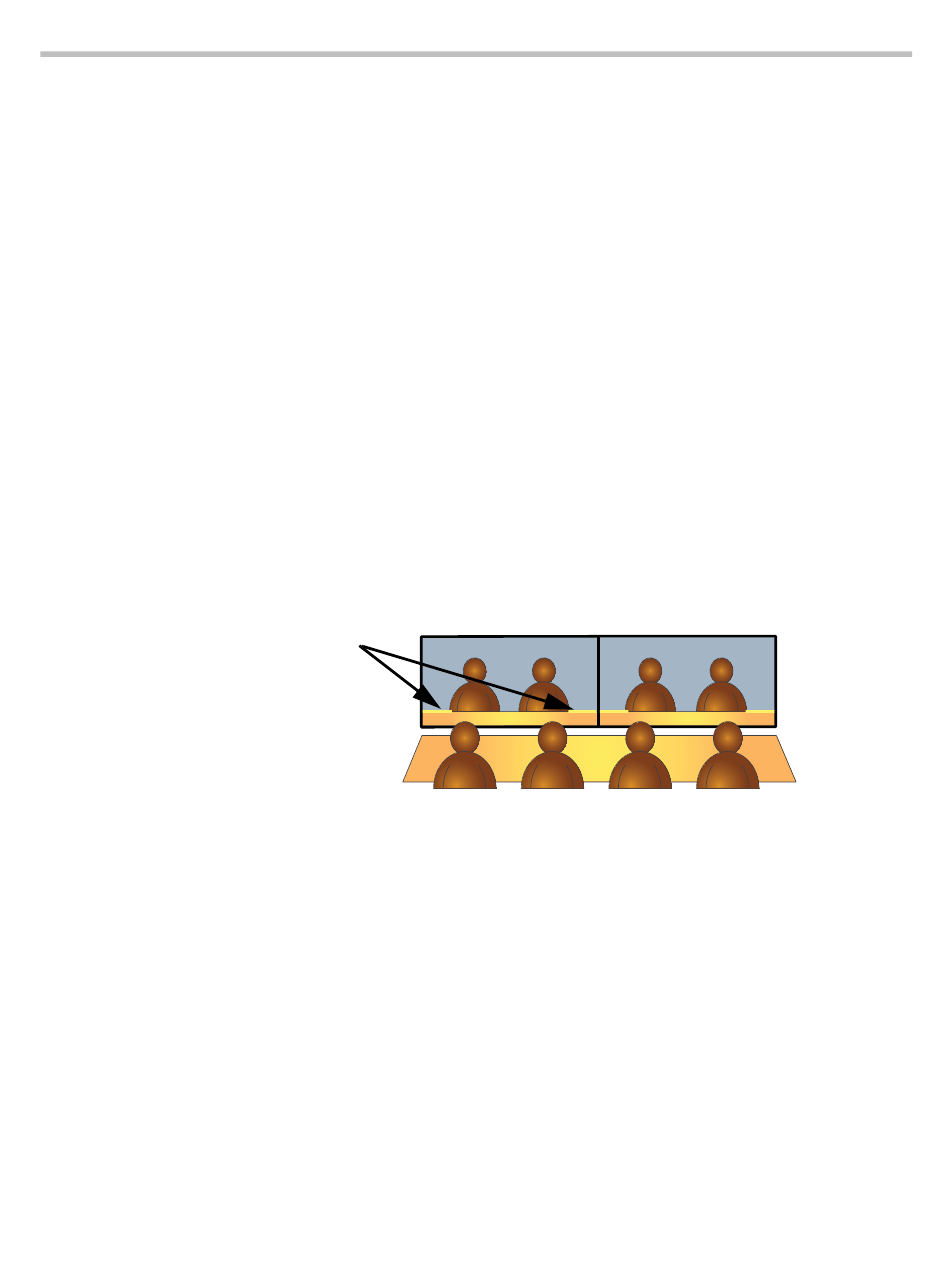

Yellow lines
Figure 5-10
If the table edge in any display does not align with the yellow lines,
c
physically adjust the corresponding camera using shims.
After all the cameras are aligned, make sure Preset 99 is selected and then
3
press Set to save Preset 99 for all the codecs.
Setting Preset 99 for an ATX 300 System
To set Preset 99 for an ATX 300 system:
On the Telepresence Tool Camera Alignment tab, select Preset 99.
1
Use the camera controls to adjust the pan, tilt, and zoom so that each
2
camera views the two seating positions specified in the table on pages 5-7,
5-10, and 5-13.
Creating the Camera Alignment
Aligning the Cameras for Preset 99 — ATX 200 System
