Polycom ATX Integrator's Guide
3 - 8
If the ceiling is suspended:
4
Remove a ceiling tile from the drop ceiling in the locations where you
a
will be installing a Ceiling Microphone Array.
Use caution when climbing a ladder to remove the ceiling tiles.
Cut a .75" (1.9 cm) hole in each ceiling tile that you removed.
b

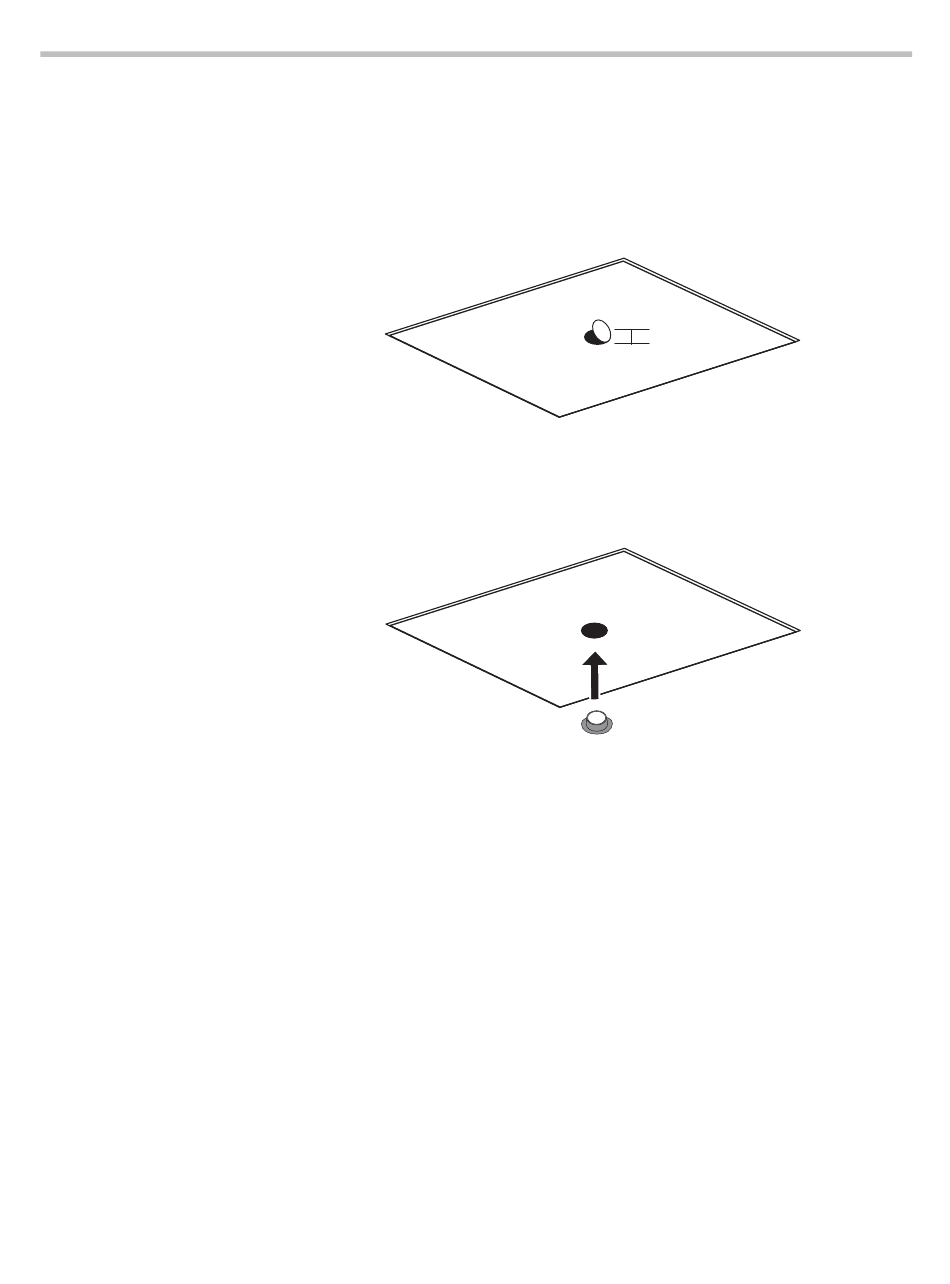

Figure 3-7 Cutting the Ceiling Tile for the Ceiling Microphone Array
Insert a bushing into the hole in each of the ceiling tiles.
c
Figure 3-8
Place an electronics enclosure on each ceiling tile, making sure that the
d
drop cable drops through the hole in the tile.
Place the ceiling tile back into the ceiling.
e
Use caution when climbing a ladder to replace the ceiling tiles.
.75" (1.9 cm)
Inserting the Bushing into the Ceiling Tile
