• The distance from the rear edge of the table to the front of the displays
should be 110" (279.4 cm).
cameras when the table is placed at this distance in an ATX 300 room. Note
that the center camera does not capture all the participants completely in
the full room view.

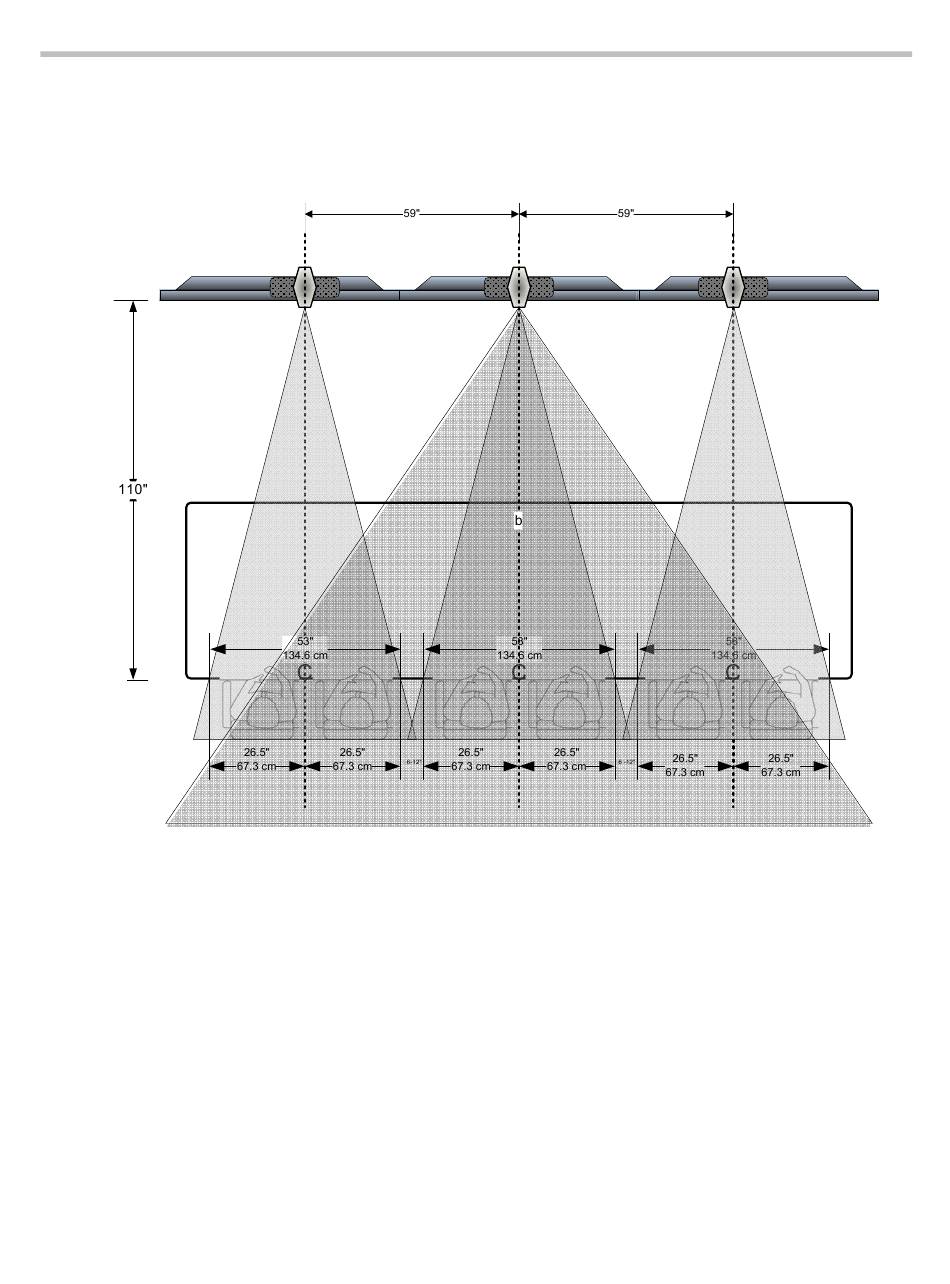

Figure 2-2 Camera Fields of View with a Table Placed at 110" (279.4 cm) —
• The table must be centered with the vertical center of the middle display.
Installing the Displays, Table, Cameras, and Chairs
Figure 2-2 shows the fields of view from the

ATX 300 System

2 - 5
