Switching Inputs

Light source off, Zero-point inputs are, for example, connected through relay contacts or
transistors (optocouplers).
Activate the light source switch-off in the relevant menu!
All GND signals are connected together internally and with the minus pole (GND) of the
24 V supply voltage.
+24 V
3k3
I 7 mA
Controller
GND

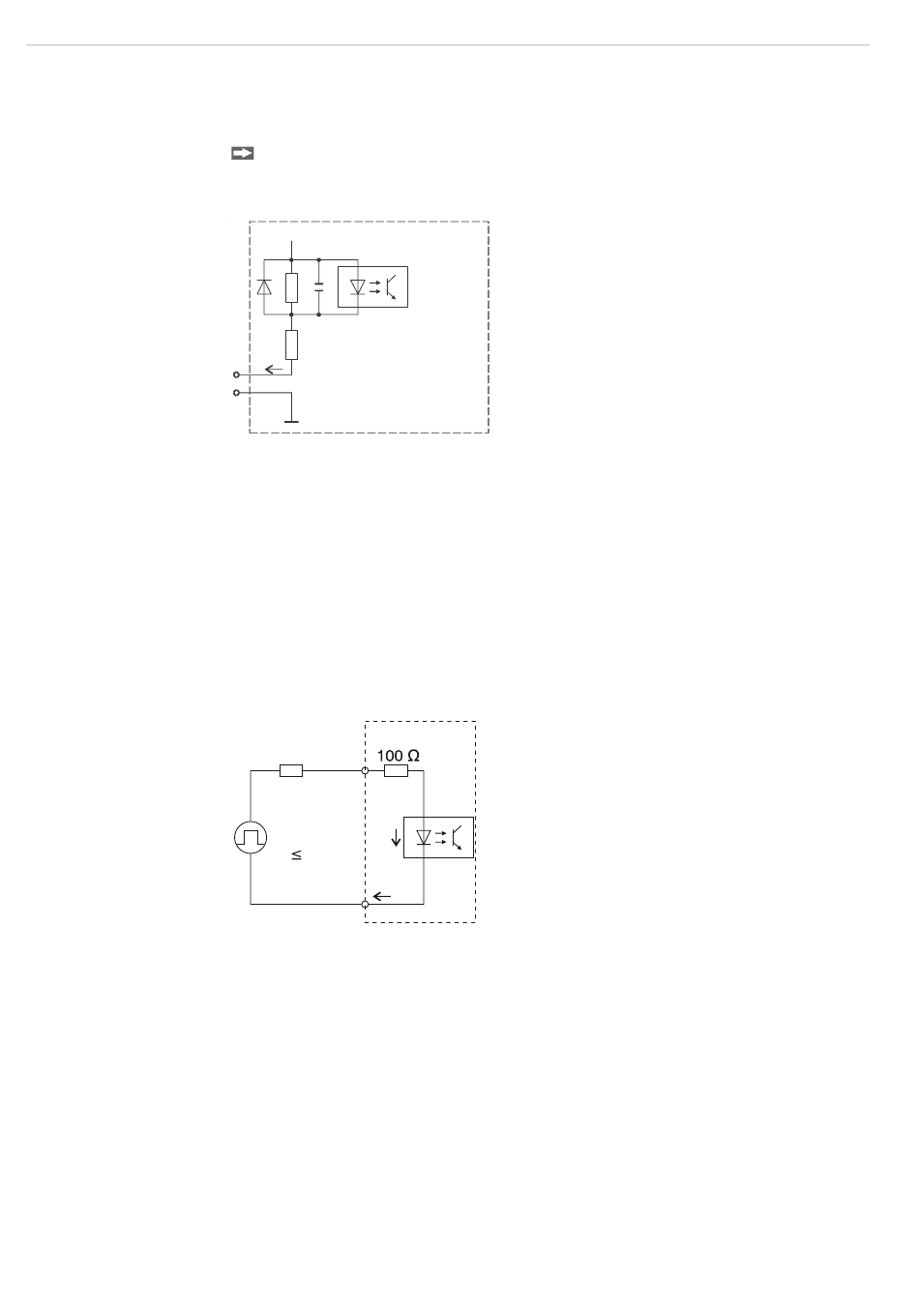

Fig. 23 Basic circuit for switching inputs
5.8

Synchronal Signal Input

The input is triggered by a further controller or another device.
R (V - V - (I * 100 Ohm)) / I
ext HIGH F LED
Example V = 3.3 V
HIGH
I = 15 mA
LED
V = 1 V
F
R = 53.3 Ohm, also 56 Ohm
ext
All GND signals are connected together internally and with the minus pole (GND) of the
24 V supply voltage.
Controller
R
24
ext
V
V
High
F
V
0.8 V
Low
I
LED
12
Fig. 24 Circuit synchronal signal input, 25-pol. Sub-D
LED
