Measure
optoCONTROL 2600
Picture 1
Picture 1/2

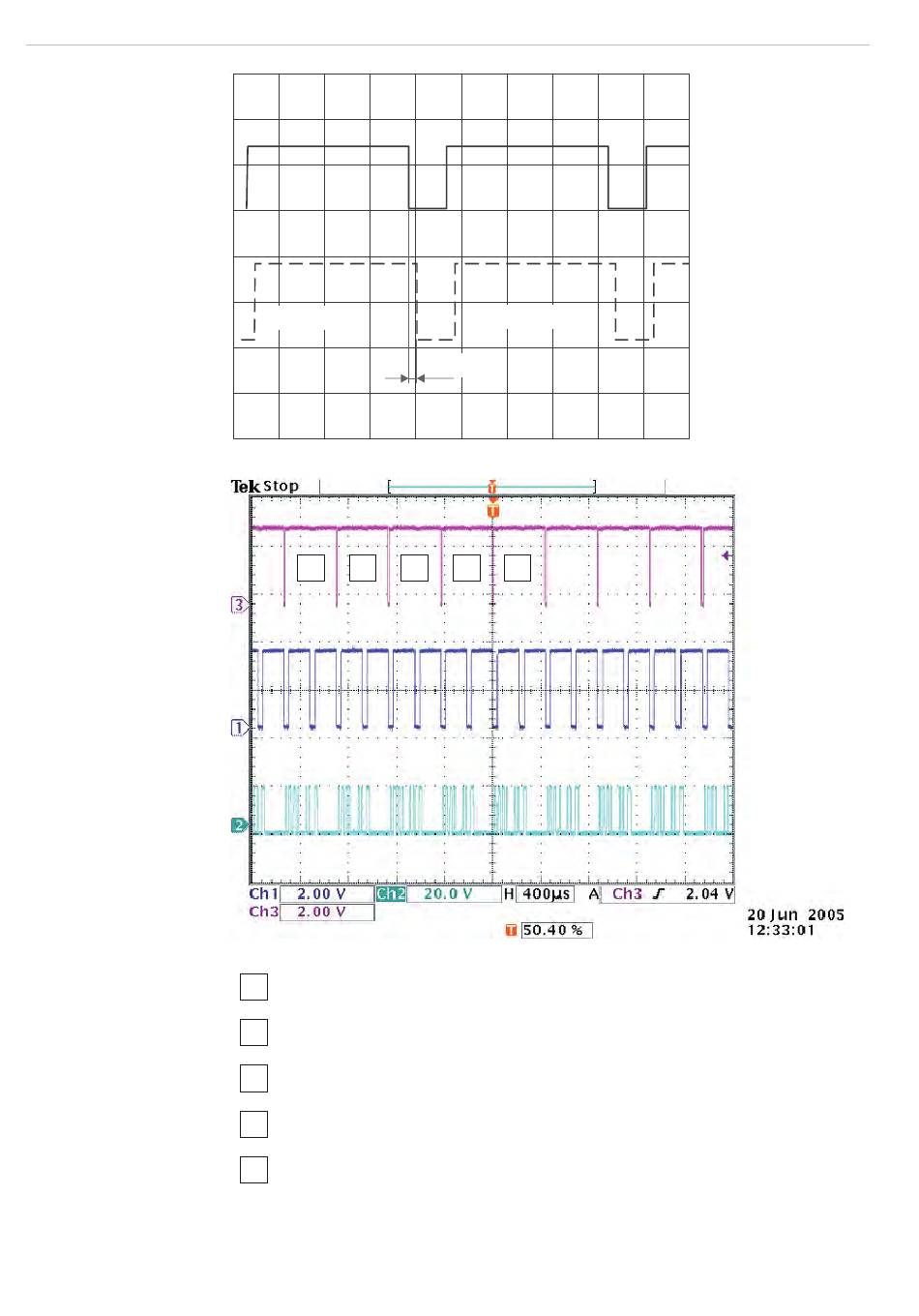

Fig. 40 Time offset through synchronizing signal
1 2
Fig. 41 Time response controller
1 Integration
2
Reading
3
Computation
4 Controlling
5
Output
Picture 2
Picture 2/1
approx. 12 µs
3 4 5
SYNCOUT Master
4.600 Hz
SYNCOUT Slave
4.600 Hz
Internal
cycle signal
Synchron OUT
Data
