Measure
6.3.6

Select Measurement Program

The six standard measurement programs cannot be modified. They can be used though as templates for your own
user-defined measurement programs. First, select a suitable standard

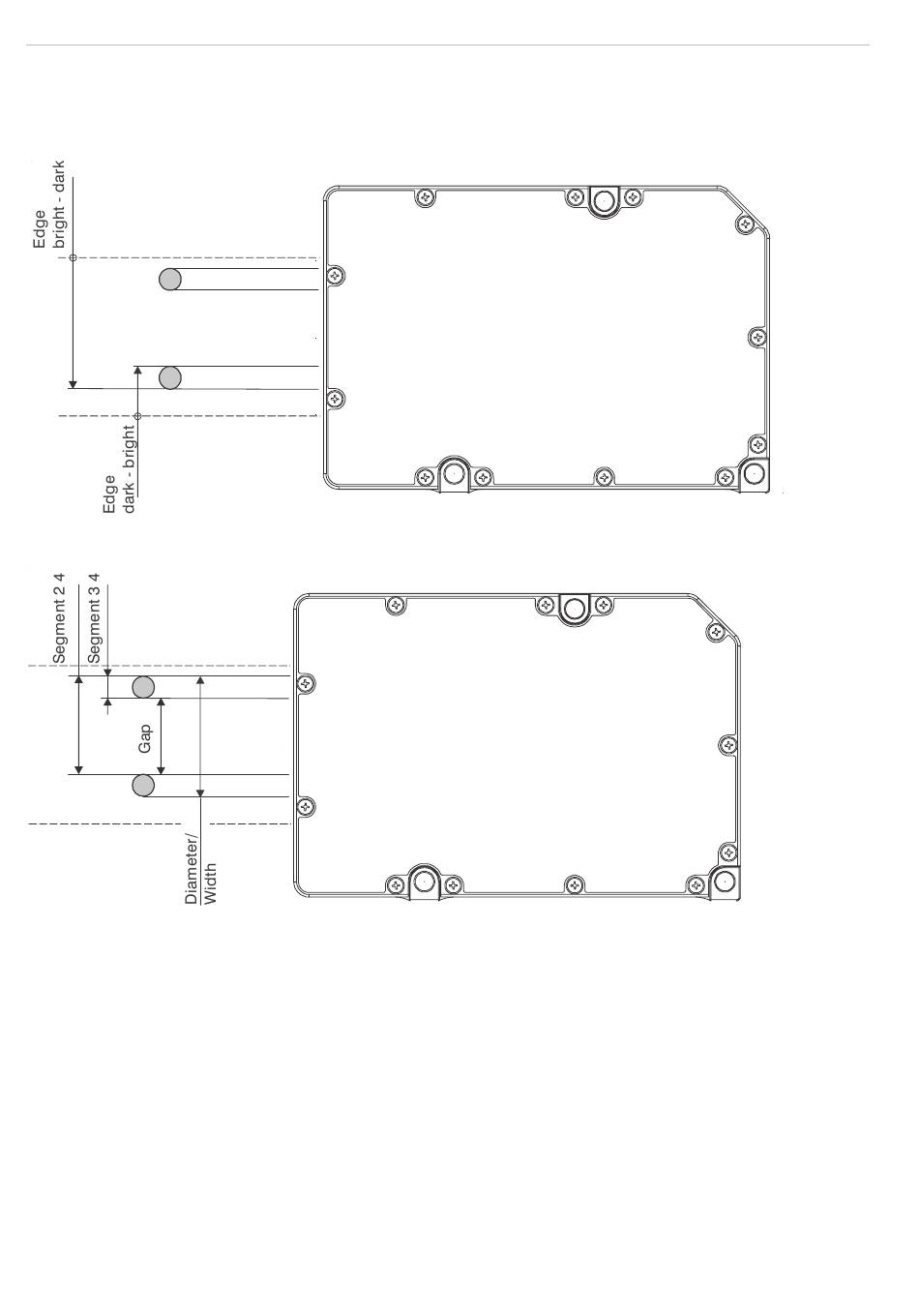

Fig. 27 Definition of terms for measurement program edge
Fig. 28 Definition of terms for measurement programs segment, gap, diameter and width
optoCONTROL 2600
(End of scan)
Edge 4 (dark - bright)
Edge 3 (bright - dark)
Edge 2 (dark - bright)
Edge1 (bright - dark)
(Start of scan)
(End of scan)
Edge 4 (dark - bright)
Edge 3 (bright - dark)
Edge 2 (dark - bright)
Edge 1 (bright - dark)
(Start of scan - zero)
program, see Fig. 29.
Receiver
Receiver
