Digital Parameters

Source of Operation Command
P3.00
Settings:
00
01
02
03
04
This parameter sets the input source for the AC drive operation commands. Refer
to P3.01 to P3.10 for more details.
Multi-Function Input Terminals (DI1-DI2)
P3.01
Settings:
00
01
02

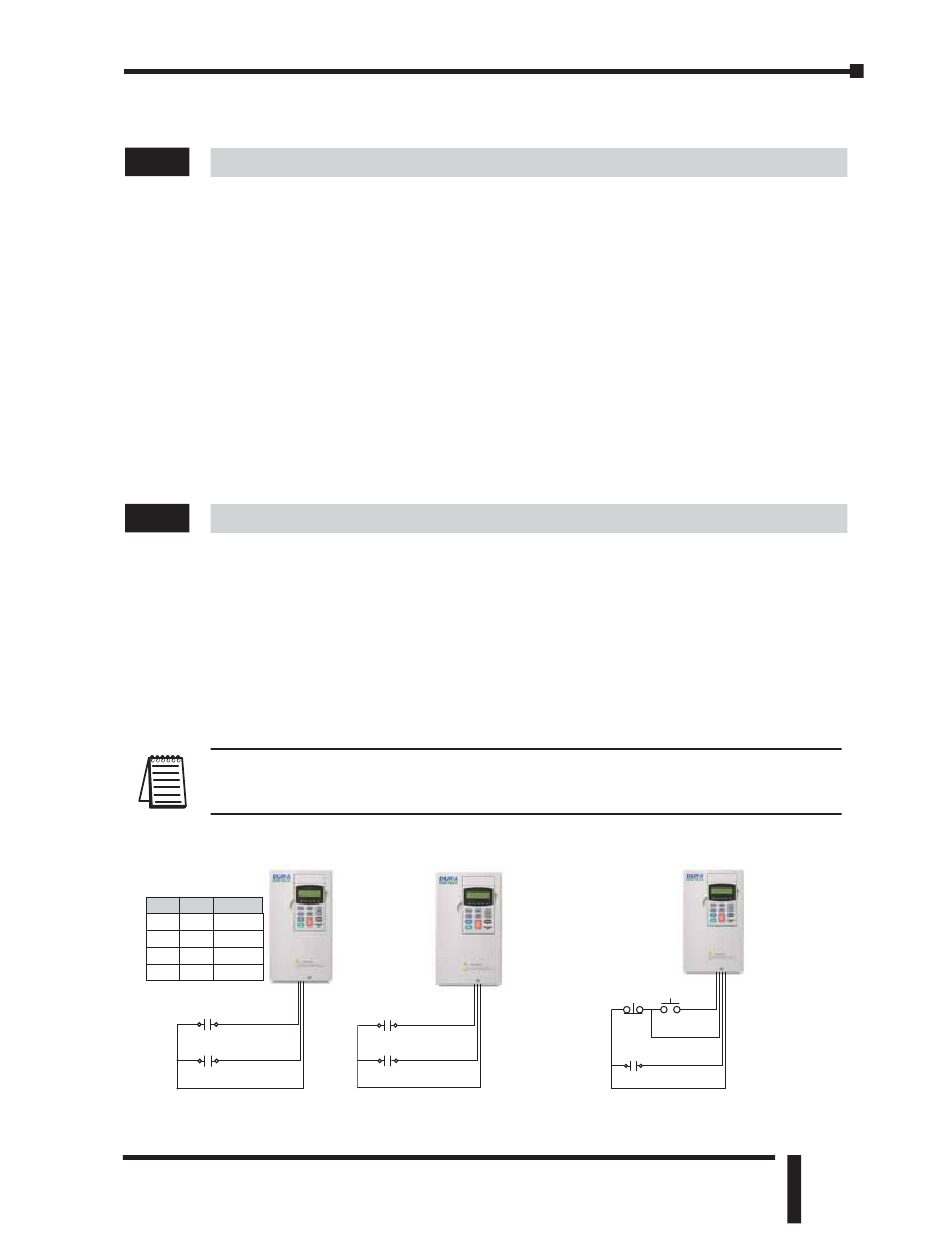

Multi-function Input Terminals DI1 and DI2 do not have separate parameter
designations. DI1 and DI2 must be used in conjunction with each other to operate
two and three wire control.
P3.01: Setting 00
DI1 DI2 Result
OFF OFF STOP
ON OFF FWD
OFF ON REV
ON ON STOP
FWD/STOP
DI1
REV/STOP
DI2
DCM
1st Ed. Rev. D 05/2013
Operation Determined by Digital Keypad
Operation determined by external control terminals.
Keypad STOP is enabled.
Operation determined by external control terminals.
Keypad STOP is disabled.
Operation determined by communication interface.
Keypad STOP is enabled.
Operation determined by communication interface.
Keypad STOP is disabled.
DI1 - FWD/STOP
DI2 - REV/STOP
DI1 - RUN/STOP
DI2 - REV/FWD
DI1 - RUN (used with momentary N.O. contact)
DI2 - REV/FWD
DI3 - STOP (used with momentary N.C. contact)
P3.01: Setting 01
DI1- RUN/STOP select
RUN/STOP
"Open" : Stop
DI1
"Close" : Run
FWD/REV
DI2- FWD/REV select
DI2
"Open" : FWD
DCM "Close" : REV
DURA
Chapter 4: AC Drive Parameters
Default Setting: 00
Default Setting: 00
P3.01: Setting 02
RUN
STOP
DI1
DI3
FWD/REV
DI2
DCM
PULSE AC Drive User Manual
DI1- RUN command
Latching input (N.O.)
Runs from momentary
contact closure
DI2- FWD/REV select
"Open" : FWD
"Close" : REV
DI3- STOP command
Latching input (N.C.)
Stops from momentary
contact opening
4–29
