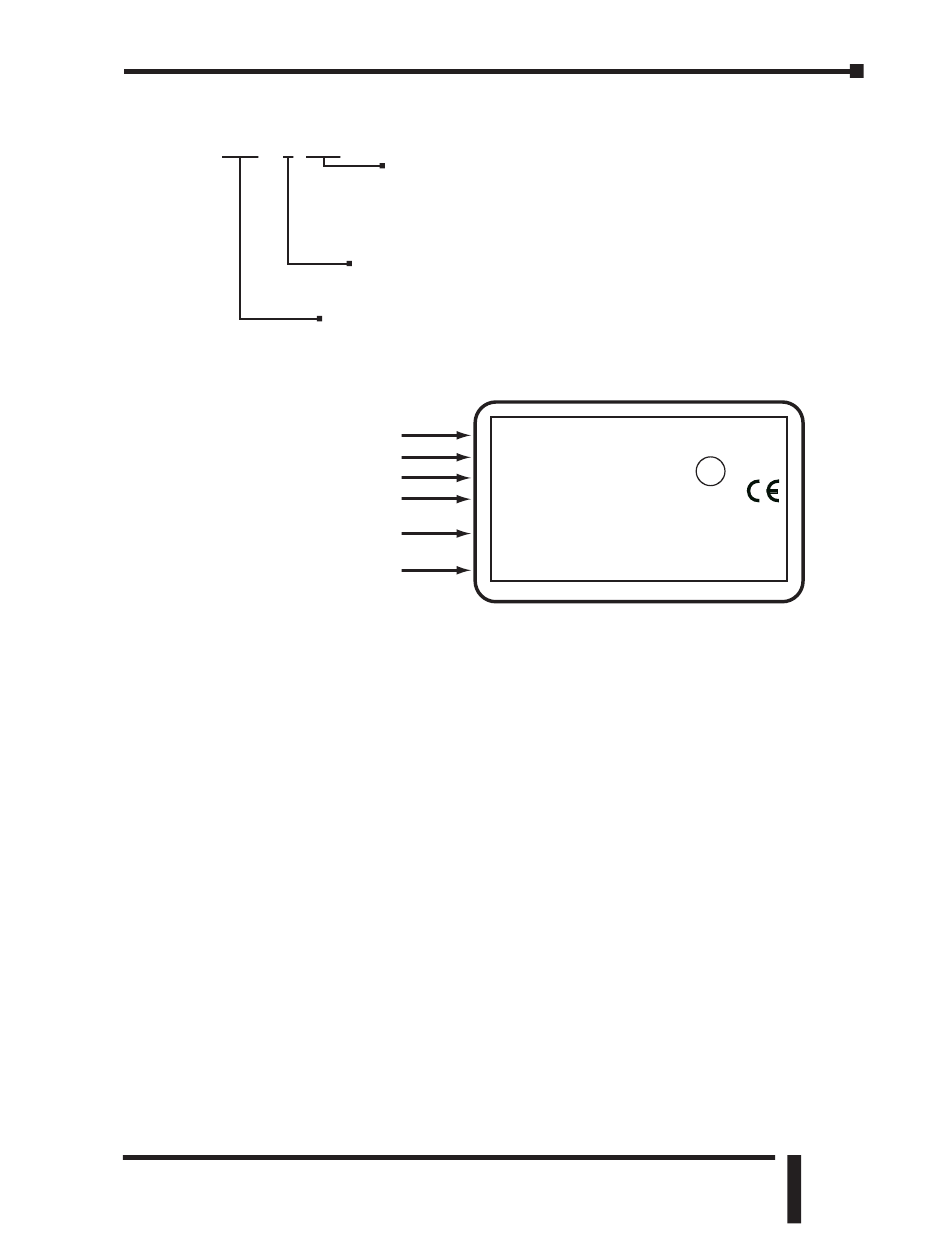

Model Number Explanation

GS3 - 2 020

Nameplate Information

AC Drive Model
Input Specification
Output Specification
Output Frequency Range
Serial Number

Drive Package Contents

After receiving the AC motor drive, please check for the following:
• Make sure that the package includes an AC drive, the DURA
Manual, and the DURA
• Inspect the unit to insure it was not damaged during shipment.
• Make sure that the part number indicated on the nameplate corresponds with the
part number of your order.
1st Ed. Rev. D 05/2013
Applicable Motor Capacity
1P0: 1hp
5P0: 5hp
015: 15 hp
030: 30 hp
060: 60* hp
Input Voltage
2: 200-240VAC
4: 380-480VAC
Series Name
MODEL: GS3-2020
INPUT: 200-240V 50/60Hz 3PH 80 Amps
OUTPUT: 0-240V 20HP 65Amps 24.7KVA 3PH
FREQUENCY RANGE: 0.1- 400Hz
Barcode
Automationdirect.com, Inc.
AC Drive Quick Reference.
PULSE
DURA
Chapter 1: Getting Started
2P0: 2hp 3P0: 3hp
7P5: 7.5 hp 010: 10 hp
020: 20 hp 025: 25 hp
040: 40 hp 050: 50 hp
075: 75* hp 100: 100* hp
* 60, 75 and 100HP models
available in GS3-4xxx only
C
LISTED
IND. CONT. EQ
|GS3-2020+T331001:~
GS3-2020+T331001
PULSE
PULSE AC Drive User Manual
U
L
US
®
19XK
AC Drive User
