AutomationDirect Ironhorse GSD8 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
™

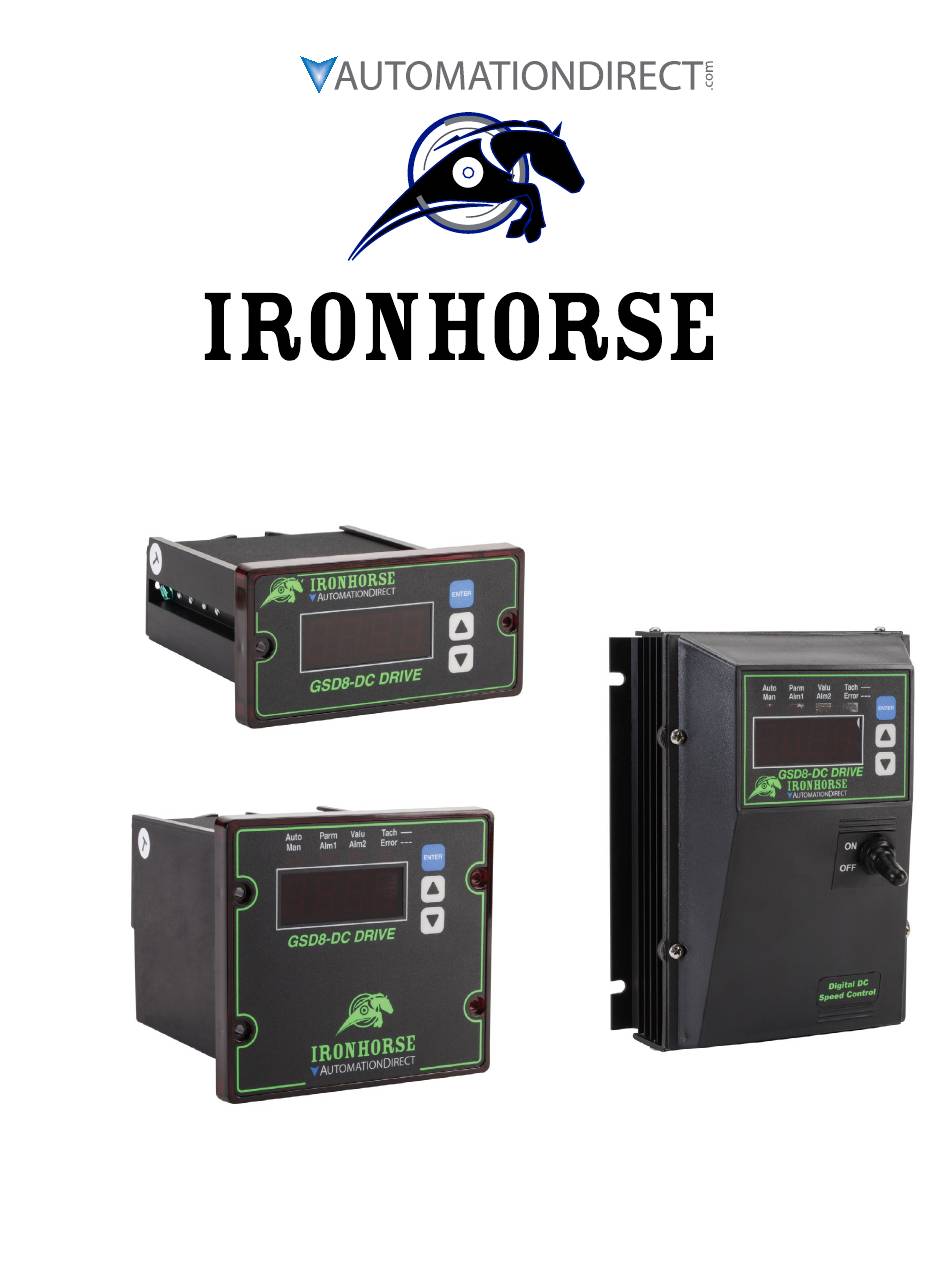

GSD8 Series DC Drives User Manual
User Manual Number: GSD8_UMP
IronHorse GSD8 DC Drives User Manual – 1st Ed. Rev. A – 10/15/2019
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ironhorse GSD8 Series and is the answer not in the manual?

Questions and answers

Related Manuals for AutomationDirect Ironhorse GSD8 Series

Summary of Contents for AutomationDirect Ironhorse GSD8 Series

  • Page 1 ™ GSD8 Series DC Drives User Manual User Manual Number: GSD8_UMP IronHorse GSD8 DC Drives User Manual – 1st Ed. Rev. A – 10/15/2019 Page 1...

  • Page 2: Warning

    770-844-4200. This publication is based on information that was available at the time it was printed. At AutomationDirect we constantly strive to improve our products and services, so we reserve the right to make changes to the products and/or publications at any time without notice and without any obligation.

  • Page 3: Table Of Contents

    Special Symbols ........... . 4 IronHorse GSD8 Series DC Drives General Information ......5 Introduction .

  • Page 4: Gsd8 Dc Drives User Manual Overview

    All information contained in this manual is intended to be correct. However, information and data in this manual are subject to change without notice. AutomationDirect (ADC) makes no warranty of any kind with regard to this information or data. Further, ADC is not responsible for any omissions or errors or consequential damage caused by the user of the product.

  • Page 5: Ironhorse Gsd8 Series Dc Drives General Information

    IronHorse GSD8 Series DC Drives General Information Introduction The GSD8 series DC drives are compact, microprocessor based motor controllers capable of factory or field configurations for a variety of industrial applications. GSD8 DC drives make use of either a pulse...

  • Page 6: Selection And Specifications

    Selection and Specifications GSD8 Series DC Drives – Selection & Specifications Model Housing Type NEMA 4X Input Voltage@ 50-60 Hz 85–265 VAC Input Frequency 48–62 Hz Output Voltage @120VAC 90VDC (@240VAC) (180VDC) Max Output H.P. @120VAC 1/2 (1) 1 (2) (@240VAC) Max Continuous Armature DC Amps Pickup or Encoder Required?

  • Page 7: Dimensions

    Dimensions inches [mm] GSD8-240-5C, GSD8-240-5C-D GSD8-240-10C-D IronHorse GSD8 DC Drives User Manual – 1st Ed. Rev. A – 10/15/2019 Page 7...
  • Page 8 GSD8-240-10N4X, GSD8-240-10N4X-A, GSD8-240-10N4X-U IronHorse GSD8 DC Drives User Manual – 1st Ed. Rev. A – 10/15/2019 Page 8...

  • Page 9: Installation And Wiring

    Installation and Wiring Do not mount controller where ambient temperature is outside the range of -10 to 45 °C (14–113 °F). Gsd8 d mpRopeR INstAllAtIoN oR opeRAtIoN of thIs RIve mAy cAuse INjuRy to peRsoNNel oR dRIve fAIluRe he dRIve must be INstAlled IN AccoRdANce WIth locAl stAte ANd NAtIoNAl sAfety codes...
  • Page 10 PANEL MOUNTING GASKET (WITH THE ADHESIVE SIDE OF GASKET FACING THE CUSTOMER MOUNTING PANEL) GSD8-240-10C-D CUSTOMER MOUNTING PANEL (HOLE CUT-OUT FOR CONTROL HOUSING APPROXIMATELY 3.622" WIDE BY 3.622" HIGH) SUPPLIED WITH EACH CONTROL: 1) GASKET 2) (4) 6-32 X 3/4 PANHEAD BLACK OXIDE STAINLESS SCREWS 3) (4) #6 NUT WITH LOCKWASHER 5.530 7/32"...

  • Page 11: Gsda-Pu2X Encoder Installation

    GSDA-PU2x Encoder Installation The GSDA-PU2x encoder is an economical way to monitor motor speed. The unique design makes installation easy where space is limited or where the mounting location is difficult to reach. The GSDA-PU2x is powered from a +5V power supply and produces a 5 volt square wave with a frequency that is proportional to motor shaft speed.

  • Page 12: Wiring

    Wiring Refer to the following wiring diagrams for proper connection of DC Voltage, Armature, and Speed Pot wiring to the GSD8 drive. Basic Wiring Diagrams GSD8-240-5C P1 Terminal Block Hook-Up Diagram AC INPUT FUSE GSD8-240-5C = 7.5 Amp* P1-1 85-265VAC P1-2 AC INPUT -ARM...
  • Page 13 GSD8-240-5C-D, GSD8-240-10C-D P1 Terminal Block Hook-Up Diagram AC INPUT FUSE GSD8-240-5C-D = 7.5 Amp* 85-265VAC P1-1 GSD8-240-10C-D = 15 Amp* AC INPUT P1-2 -ARM P1-3 +ARM P1-4 MOTOR GSDA-PU2E or PU2R PICK-UP MOUNTED TO MOTOR SHAFT GSD8-240-5C-D P1-5 COMMON black GSD8-240-10C-D P1-6 +5VDC...
  • Page 14 GSD8 Series Terminals Terminal Terminal Description Number Marking For single phase AC lines connect the Neutral side of the AC line to this terminal. For systems with P1-1 AC/N two hot AC lines, connect either of the Hot AC lines to this terminal. For single phase AC lines connect the Hot side of the AC line to this terminal.

  • Page 15: Basic Operating Instructions

    Basic Operating Instructions Control Algorithm Discussion GSD8-240-5C The GSD8-240-5C DC drive controls are based on a pulse-accumulation algorithm. The advantage of this algorithm is that it allows the GSD8 drive to follow a master process with exceptional accuracy. The GSD8 drive has three parameters which allow the user to adjust how tightly the GSD8 drive will control the motor to achieve the target speed.

  • Page 16: Master (Rate And Time) And Follower (Ratio) Modes Explained

    Test Procedure: Adjust the target (displayed) speed as expected during normal operation, including testing inhibit and jog transitions if applicable. Tuning Method: 1) Step 1 - Connect the GSD8 drive to the motor. For realistic tuning, insure that the motor is operating with the anticipated load for the application.

  • Page 17: Visual Reference

    Visual Reference LED Indicators ENTER (Select) Button Auto Parm Valu Tach Alm1 Alm2 Error ENTER ENTER Up & Down Buttons GSD8-240-5C-D GSD8-240-5C Display Window Parm Alm1 Auto Valu Tach Parm ENTER Alm1 Alm2 Error ENTER GSD8-240-10N4X, 10N4X-A, & 10N4X-U GSD8-240-10C-D JP1 (Program Enable Jumper) The JP1 jumper is located under the dust cover on the back end of the upper board.

  • Page 18: Detailed Configuration Instructions

    Run Mode is the default display mode when power is applied. The GSD8 drive will spend the majority of its time in this mode. In Run Mode, the display shows the Target or Actual (“Tach”) speed value in the user-defined Engineering Units format for rate, time, or percentage of Master if in “Follower” mode.

  • Page 19: Setting And Reading "Softswitches

    All other GSD8 drives • Rate Mode Operation in RPM • S1 and S2 Signal Input Pulses per Revolution: 1, 10, or 20 (depending on magnet in PU2x) • Decimal Point Display: None • Display Range: 0 - 2400 • Speed Range: 0 - 2400 RPM •...

  • Page 20: Generating Alarms From Drive Condition Flags

    Generating Alarms from Drive Condition Flags The GSD8 drives include two alarm outputs which can be independently set to activate on any of the available drive condition flags. By default, all alarms are deactivated. To enable alarms, enter a decimal value into Parameter 50 that represents the drive conditions under which Alarm 1 should activate.
  • Page 21 Table 3: Jog Function Activation Example Parameter Decimal Value 50 (70) 51 (71) – – – – – 52 (72) Generates Alarm    NOTE: Replace 64 with the value that represents the sum of all drive condition flags you want to generate an alarm.

  • Page 22: Alarm" Output Routing

    “Alarm” Output Routing The “output” of Alarm1 is permanently “routed” to drive the Form-C Relay output on the GSD8 drive (see Hook-up Diagram, P1-9 through P1-11). The “output” of Alarm2, however, can be Routed (using Parameter 81) to any one of the three Modbus “slots”, 100, 200 or 500. GSD8 Alarm “Logic”...
  • Page 23 Alarm Logic Application Example Parameter 50 Drive Condition Flags (70) [1] Accel/Decel Ramp [2] Actual Speed Outside Limits [4] Target Speed Outside Limits [8] Target Speed = 0 [16] (Main) Pickup Stalled [32] (Leader) Stopped [64] Jog [128] Inhibit Note: Numbers in parentheses refer to Alarm2 [256] E-Stop [512] Maximum Output...

  • Page 24: Gsd8 Software Parameters

    GSD8 Software Parameters Parameter Used by: All other Parameter Description Value Range Units Default GSD8- GSD8 240-5C drives Select parameter 0 to return to –   Run mode Read-Only Parameters 10 = GSD8-240-5C, 45 = GSD8- Model Number 240-5C-P, 10C-P, 10N4X, 10N4X-A, ...
  • Page 25 All other GSD8- Parameter Description Value Range Units Default GSD8 240-5C drives 1 = Default to Zero Display 2 = Default to Power-up Value Power-Up Mode  3 = Default to Previous Running Value 0 = Double-Click Ignored 1 = Inhibit Front-Panel Double-Click 2 = Estop ...
  • Page 26 All other GSD8- Parameter Description Value Range Units Default GSD8 240-5C drives S2 Pulses Per Revolution - 1-2048   (Follower Only) 1-9999 0 = Hardware Inhibit Front Panel Double-Click Mode  1 = Double-Click Toggles Inhibit S2 Stopped Timeout - (Follower 0-9999 - (0 = Defeat) 0.10 Sec.
  • Page 27 All other GSD8- Parameter Description Value Range Units Default GSD8 240-5C drives Alarm 1 Pulse ON Time 1-3600 Seconds  1 = No Silencing - Reset on Enter Button 2 = No Silencing - Reset on S2 High 3 = No Silencing - Reset on S2 Low Alarm1 Reset Configuration ...
  • Page 28 All other GSD8- Parameter Description Value Range Units Default GSD8 240-5C drives 1 = Reserved 2 = Use Slot 100 Alarm1 Output Alarm2 Output Routing  3 = Use Slot 200 Alarm1 Output 4 = Use Slot 500 Alarm1 Output Alarm2 Logical "OR"...
  • Page 29 All other GSD8- Parameter Description Value Range Units Default GSD8 240-5C drives Inhibit Function Activated  E-Stop Function Activated  Drive is at Maximum Output  1024 "Run" Condition  2048 Reserved  4096 Reserved  Flags - Table #2 No Active Flags ...

  • Page 30: Gsd8 Software Parameter Descriptions

    GSD8 Software Parameter Descriptions All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives When Parameter 0 is selected in Parameter-Selection Mode, the unit will Exit to Running return to Running Mode and, depending on the value of Parameter 12, ...
  • Page 31 All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives This Parameter adjusts the intensity of the LED display digits in the front panel of the unit. The values of 0 – 31 correspond to a gradual change from very dim to very bright. This is often useful when the GSD8 is used Display Intensity ...
  • Page 32 All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives This parameter determines how the GSD8-240-5C processes the S1 and S2 signal input. It specifies which signal edge is used for measurements and the value of the internal frequency dividers or prescalers. Modes with prescalers greater than 1 should only be used if the input pulse rate on S1 or S2 exceeds the unit’s maximum native pulse rate (see specifications for details);...
  • Page 33 All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives This parameter defines the mode which determines the default Running Value when power is initially applied to the MDP. • Mode 1: Default to Zero When in this mode, the unit will default to zero (display units). •...
  • Page 34 All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives This Parameter controls two behaviors in the GSD8, Low-Speed “Gain- Tracking”, and Ultra-Low-Speed Control Mode (“gearbox” mode). When set to a value of 1 (or 3), this parameter automatically (and proportionally) reduces the “gain”...
  • Page 35 All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives This parameter sets the limit for the maximum number of pulses the drive will accumulate prior to intentionally losing count and therefore long-term accuracy. The GSD8-240-5C is a pulse-accumulation drive, able to accurately track a master (in Follower Mode) pulse-by-pulse.
  • Page 36 All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives When the Target Speed is above zero RPM, this Parameter determines the maximum time in units of 0.1 Seconds that can elapse between S1 pickup pulses before the GSD8 considers itself in a “Stall” Condition. It is Signal Input 1 not advisable to set this lower than approximately 10 seconds (a value of (S1) Running Stall...
  • Page 37 All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives Signal Input 2 (S2) When in Follower Mode, this is the number of pulses per revolution for (“Leader”) Pulses the signal input 2 (S2) used as the “Leader” input. The GSD8 supports ...
  • Page 38 All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives User Input #1 (UIN1) Setup Parameters This Parameter determines the operating mode of user input 1 (UIN1). • Mode 1: Disabled The UIN1 input is inactive. • Mode 2: Emergency Stop When UIN1 High (Not Wired To Common) When the UIN1 input is at an electrically high (+5V) state or allowed to float disconnected, the GSD8 will enter emergency-stop mode.
  • Page 39 All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives This Parameter determines the accel/decel profile of the GSD8 when it is going into and out of “Inhibit” Mode. There are 4 possible settings: • Mode 0: No Accel/Decel When going into Inhibit, the GSD8 will immediately shut off its output, disregarding any Decel setting, and when coming out of Inhibit, the GSD8 will immediately return to its Target Speed, disregarding any Accel setting.
  • Page 40 All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives This defines which conditions will result in the alarm 1 output being activated. • Mode 0: Always Inactive The alarm output will remain in an inactive state. In this state, the NC and C contacts will be internally electrically connected.
  • Page 41 All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives This setting configures the output mode and reset method for the alarm output. • Mode 1: Constant & Auto Reset In this mode, the alarm output will remain active until the alarm condition ceases to exist.
  • Page 42 All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives Alarm 1 Display Flash This will cause the display to flash when an alarm condition is active.  On Active Alarm This setting configures the output mode and reset method for the Alarm 1 output.

  • Page 43: Application Examples

    All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives This setting defines either the lower limit, the lower end of a range for the alarm region or a stall timeout. Alarm limits are set in display units without regard to decimal point or colon position. Alarm 1 Lower Limit In Rate and Follower Modes, a limit of 123 could represent a display ...
  • Page 44 All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives This Parameter, in conjunction with Parameters 70 & 71, defines which Alarm 2 Logical conditions will result in the Alarm 2 output being activated. The “AND” Activation function is that of a Logical “AND”ing of the selected Drive Condition ...
  • Page 45 All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives This setting defines either the lower limit or the lower end of a range for the alarm region. Alarm limits are set in engineering units without regard Alarm 2 Lower Limit to decimal point or colon position.
  • Page 46 All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives When set to the desired Modbus Slot number (100, 200, 500) and the ENTER button is pressed, the Default settings for that Modbus card’s Parameters will be copied to the selected Slot’s “partition” in the non- volatile storage of the GSD8.
  • Page 47 All other GSD8- Parameter Parameter Name Description GSD8 240-5C drives This parameter is used to turn on/off the maintenance timer and setting the length of time before the timer will trip. By setting this parameter to 0, the timer is disabled. By setting this parameter to a value of greater Maintenance Timer than 0, indicates the time (in hours) when the maintenance timer will ...

  • Page 48: Scada-Driven Pump Controller With 4-20Ma I/O, Plus"Fault" And "Run" Relay Outputs

    Application Examples SCADA-driven Pump Controller with 4-20mA I/O, plus”Fault” and “Run” Relay Outputs Description: A GSD8 drive (with GSDA-AI-A8 installed) operating a waste pump control receives a target speed setting from the SCADA system, 4-20 mA output. The GSD8 drive will display the actual pump rate in liters per minute, and will continuously report the pump’s actual flow rate to the SCADA system using the GSDA-AI-A8’s 4-20 mA output.
  • Page 49 Wiring Diagram SCADA SYSTEM (Has built in Excitation Supply) “Run” 4-20 4-20 Contact Auto / Manual Switch P1-1 *FUSE AC Line Input 85-265VAC, 50-60 Hz P1-2 P1-3 P1-4 MOTOR P1-5 P1-6 FLOW TRANSDUCER (Frequency Output) NO C SIGNAL OUT P1-7 P1-8 NOT USED 1 2 3 4 5 6...

  • Page 50: Pump Controller With Audible And Visual Alarm

    The programming for Alarm2, which we are using to control the relay on the GSDA-AI-A8 to form a “Run” output, is much simpler. The GSD8 drive has a “Run” condition, which is true (active) when the Target Speed is greater than zero, AND the main pickup has received at least one pulse. Therefore, set Parameter 70, the Alarm2 “OR”, to the “Run”...
  • Page 51 GSD8-240-5C Motor Control 153.0 ENTER Audible Annunciator Fluid Outlet Flow Transducer (73 Pulses per Liter) Fluid Inlet DC Motor Pump Pump Specs: 19 Shaft Rotations = 2 Liters Wiring Diagram P1-1 *FUSE AC Line Input 85-265VAC, 50-60 Hz P1-2 P1-3 P1-4 MOTOR P1-5...

  • Page 52: Conveyor Oven Controller With Two Preset Process Times

    Conveyor Oven Controller with Two Preset Process Times Description: An oven monitor displaying the “tunnel” time in minutes and seconds. The tunnel time is defined as the time it takes for the heated object on the conveyor to travel from point A to point B in the application diagram below.

  • Page 53: Setting Up A Stock Gsd8-240-5C For Pizza Ovens

    Parameter Configuration: Parameter Value Notes Time Mode Setting (MM:SS is a time-based unit) Display minimum set to 6:30 (MM:SS) For example: (6 minutes x 60 seconds per minute) + 30 seconds = 390 seconds Display maximum set to 12:15 (MM:SS) For exampe: (12 minutes x 60 seconds per minute) + 15 seconds = 735 seconds Display should indicate 6:40 (MM:SS) when motor at Reference RPM, parameter 31 For example: (6 minutes x 60 seconds per minute) + 40 seconds = 400 seconds...
  • Page 54 baking chamber. Stop timing just as the front edge of the pan emerges from the baking chamber. Repeat 1-2 times to verify. This is the Desired Display (bake time in minutes:seconds) at a known RPM (1500 in this case). Let’s assume your time comes out to 6 minutes and 40 seconds. Final Programming Steps 1) With power on to the control, press and hold “Enter”...

  • Page 55: Troubleshooting

    Power not applied is measure between the L and N terminal block positions. Display is blank Defective unit Contact AutomationDirect to return the defective unit: https://www.automationdirect.com/adc/return/return Editing and increasing the display intensity parameter should Display is dim Display intensity parameter is too low cause the display digits to become brighter.
  • Page 56 Literature Number: LT188 Drawing Number: A-5-4172B IronHorse GSD8 DC Drives User Manual – 1st Ed. Rev. A – 10/15/2019 Page 56...
