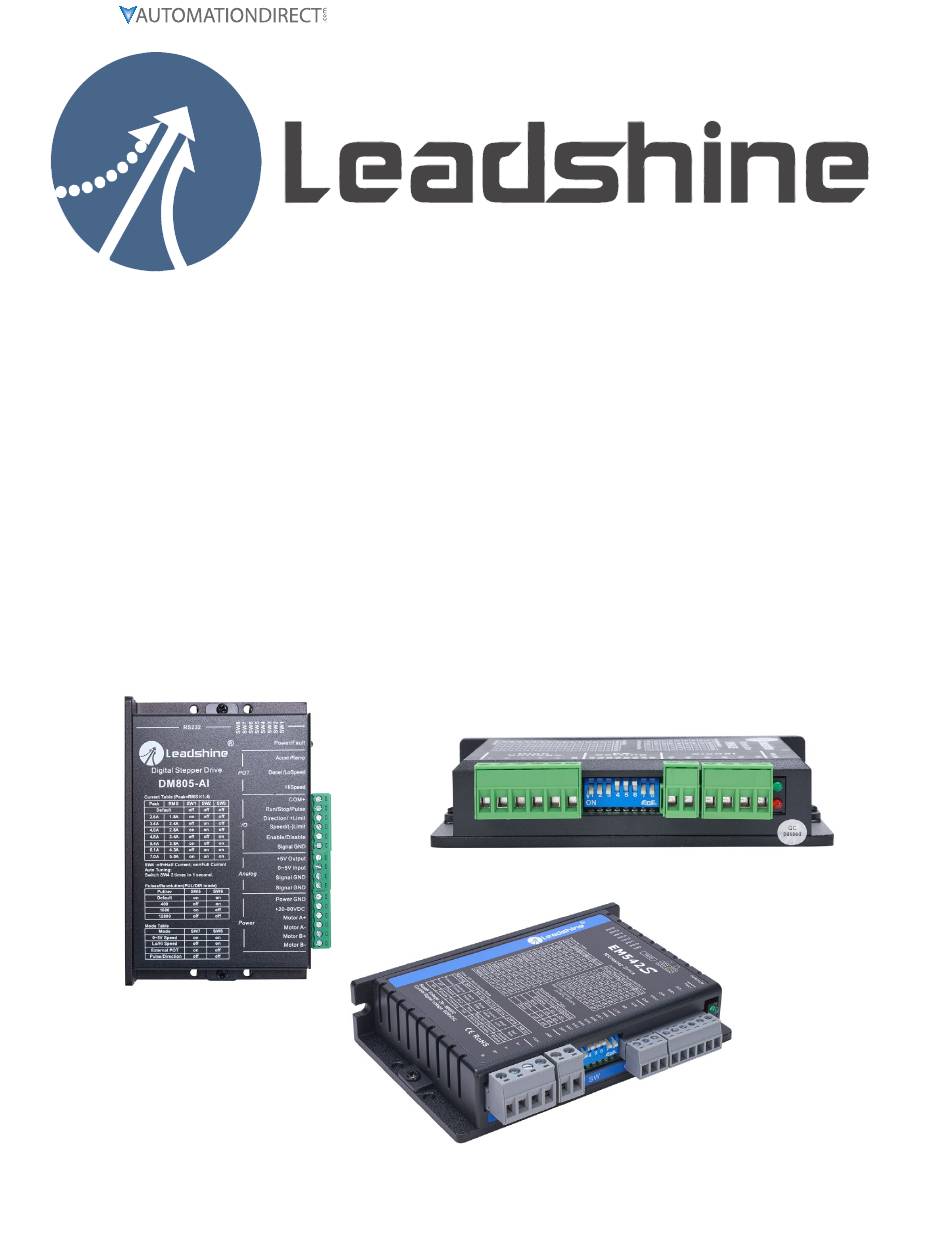

- Page 1 Leadshine Stepper Drives Quick Start Guide 1st Edition, November 04, 2019...
-
Page 2: Table Of Contents
Leadshine Stepper Drives Quick Start Guide Table of Contents Leadshine Stepper Drives Overview � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Getting Started�... -
Page 3: Leadshine Stepper Drives Overview
Leadshine Stepper Drives Quick Start Guide Leadshine Stepper Drives Overview Leadshine stepper drives are compact, simple drives designed to work with a wide range of NEMA stepper motors. Many stepper motors come with only 4 leads. They are easily wired to the drive terminals A+, A-, B+, and B-. -
Page 4: Dm542E, Dm556E, Dm860E, Dma860E
Leadshine Stepper Drives Quick Start Guide DM542E, DM556E, DM860E, DMA860E The DM542E and DM556E drives are capable of pulse and direction operation, with auto-motor config on power up. The DM860E and DMA860E drives possess the same capabilities but can also do CW and CCW pulse operation. The main difference between these models are output current range to the motor and supply voltage. - Page 5 Leadshine Stepper Drives Quick Start Guide DM542E, DM556E, DM860E, DMA860E Connection to a Sinking Output Controller Controller Drive PUL+ PUL- DIR+ DIR- ENA+ ENA- ENABLE Power Supply Stepping Motor DM542E, DM556E, DM860E, DMA860E Connection to a Sourcing Output Controller Controller Drive PUL+ PUL-...
-
Page 6: Jumper Settings
Leadshine Stepper Drives Quick Start Guide Jumper Settings DM860E Jumper Settings Jumper Not Jumpered Jumpered Factory Default Use PUL/DIR inputs Use CW/CCW pulses Not jumpered (PUL/DIR) Internal micro-step (pulse Internal micro-step (pulse Not jumpered (internal smoothing) ON smoothing) OFF microstep ON) DMA860E Jumper Settings Jumper Not Jumpered... - Page 7 Leadshine Stepper Drives Quick Start Guide Idle Current Reduction DM542E, DM556E, DM860E, DMA860E Idle Current Reduction Idle Current Reduction 100% Microstep Resolution Configuration Microstep resolution is set by switches 5, 6, 7, and 8 as shown in the following table: DM542E, DM556E Microstep Resolution Steps/Rev Microstep...
-
Page 8: Dm322E
Leadshine Stepper Drives Quick Start Guide DM322E The DM322E is a compact drive capable of pulse and direction operations, with auto-motor configuration on power up. Specifications Electrical, Connector, and Environmental Specifications Part Number DM322E 0�3–2�2 A peak Output Current (0�2–1�6 RMS) 12–30 VDC Supply Voltage (24 VDC typical) -
Page 9: Dip Switch Settings
Leadshine Stepper Drives Quick Start Guide DM322E Connection to a Sinking Output Controller R=0 if VCC=5V R=1K(Power>0.125W) if VCC=12V R=2K(Power>0.125W) if VCC=24V DM322E Driver Controller R must be connected to control signal terminal 270 Ω OPTO 270 Ω 270 Ω ENABLE Power Supply Stepping... - Page 10 Leadshine Stepper Drives Quick Start Guide Microstep Resolution Configuration Microstep resolution is step by switches 4, 5, and 6 as shown in the following table: DM322E Microstep Resolution Steps/Rev Microstep (for 1.8° motor) 1600 3200 6400 12800 4000 8000 Leadshine Stepper Drives Quick Start Guide – First Edition – 11/04/2019 Page 10 of 17...
-
Page 11: Dm805-Ai
Leadshine Stepper Drives Quick Start Guide DM805-AI The DM805-AI drive is capable of pulse and direction as well as analog input and speed control. Auto-motor config on power up with self motor test capability. Comes with built in potentiometers for adjusting speed limits and accel and decel rates, and can be controlled via an external potentiometer. - Page 12 Leadshine Stepper Drives Quick Start Guide Analog 0–5 V Speed Mode Accel/Ramp Accel Decel/LoSpeed Decel HiSpeed Maximum Speed (when Analog Input = 5V) COM+ Run/Stop/Pulse Direction/+Limit Direction Speed/(-)Limit -Limit Enable/Disable DM805-AI Disable Signal GND +5V Output 0~5V Input 0~5V Signal GND Signal GND Power GND 20-80 VDC...
- Page 13 Leadshine Stepper Drives Quick Start Guide Pulse/Direction Mode Controller COM+ Run/Stop/Pulse Direction/+Limit Speed/-Limit Enable/Disable DM805-AI Signal GND +5V Output 0~5V Input ENABLE Signal GND Tach Output Power GND 20-80 VDC +20-80VDC Motor A+ Motor A- Motor Motor B+ Motor B- Connection to Differential Signal Controller R=0 if VCC=5V R=1K(Power>0.125W) if VCC=12V...
-
Page 14: Dip Switch Settings
Leadshine Stepper Drives Quick Start Guide DIP Switch Settings NOTE: When DIP switches are set to the “Default” settings, these values can be changed via Protuner for DM805-AI software. Dynamic Current Configurations DM805-AI Current Configuration Peak Current (A) RMS Current (A) Default Idle Current Reduction DM805-AI Idle Current Reduction... -
Page 15: Em542S, Em556S
Leadshine Stepper Drives Quick Start Guide EM542S, EM556S The EM542S and EM556S are digital stepper drives capable of pulse and direction as well as CW and CCW operation, with auto-motor config on power up and self-test capability. These drives have a built-in current-limiting resistor (on a switch) to allow either 5V or 24V input pulses. - Page 16 Leadshine Stepper Drives Quick Start Guide NOTE: These drives can accept Vcc of 24V or 5V. Set switch S3 before applying power. EM542S, EM556S Connection to a Sourcing Output Controller Controller Drive Step PUL+ PUL- Direction DIR+ DIR- Enable ENA+ ENA- EM542S, EM556S Connection to a Sinking Output Controller Drive...
-
Page 17: Dip Switch Settings
Leadshine Stepper Drives Quick Start Guide DIP Switch Settings Dynamic Current Configurations EM542S Current Configuration Peak Current (A) RMS Current (A) 0.7 (default) EM556S Current Configuration Peak Current (A) RMS Current (A) 1.3 (default) Idle Current Reduction EM542S, EM556S Idle Current Reduction Idle Current Reduction Microstep Resolution Configuration Microstep resolution is step by switches 5, 6, 7, and 8 as shown in the following table:...
