Select Method for 2nd Accel/Decel
P1.07
Range: 00: Second Accel/Decel from terminal
01: Frequency Transitions P1.08 & P1.09
The second set of acceleration and deceleration times P1.05 and P1.06 can be
selected either with a multi-function input terminal programmed to Second
Accel/Decel, or by the values of the transition frequencies P1.08 and P1.09.

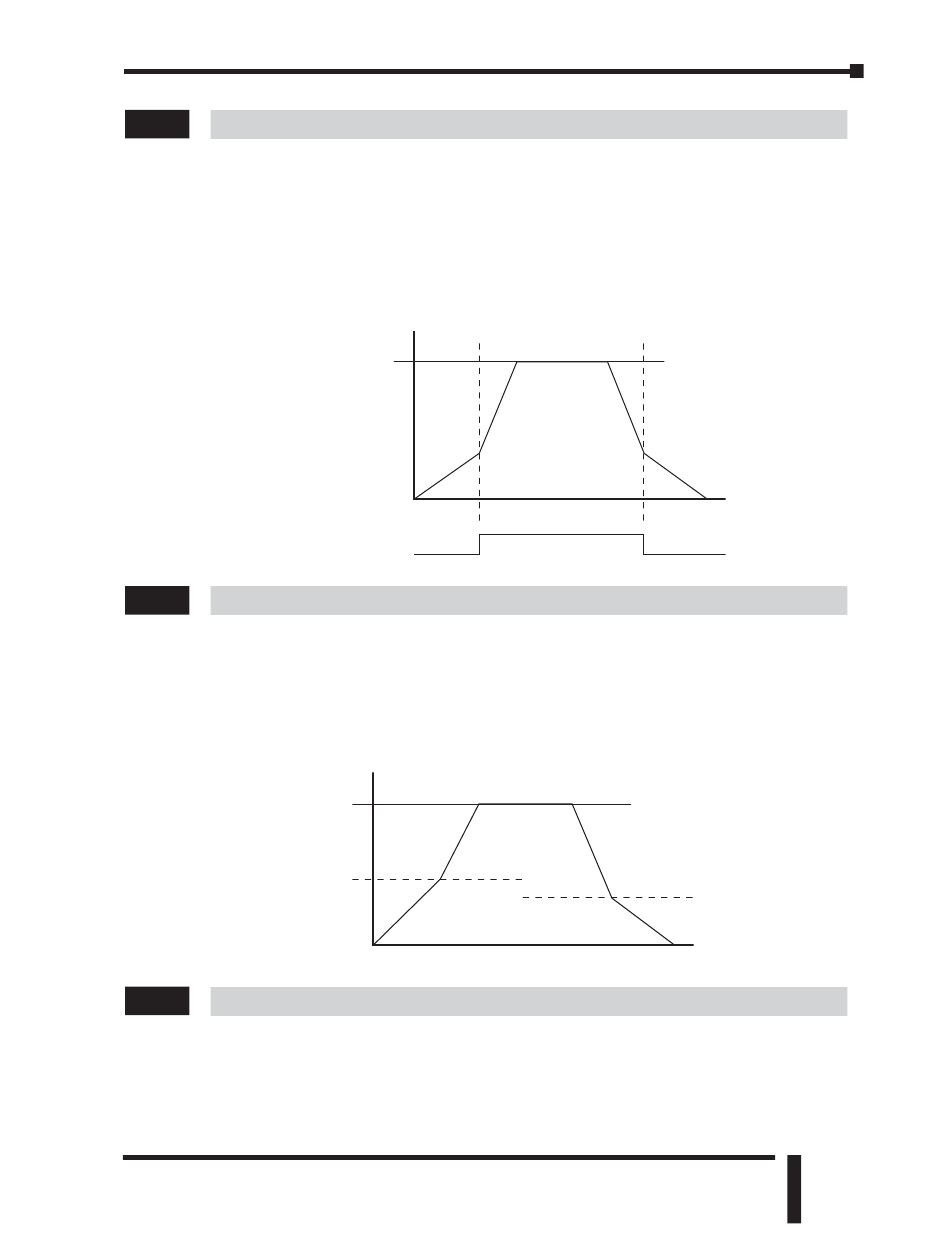

Second Accel/Decel Times selected with Multi-Function Input Terminal
Maximum Output
Frequency P0.04
Multi-function
Input Terminal
P1.08 Accel 1 to Accel 2 Frequency Transition
Range: 0.0 to 400.0 Hz
This parameter sets the frequency at which the AC drive changes acceleration rate
from Acceleration Time 1 (P1.01) to Acceleration Time 2 (P1.05).
Second Accel/Decel Times selected with Frequency Transition
Maximum Output
Frequency P0.04
Accel 1 to Accel 2
Frequency Transition
P1.08
Decel 2 to Decel 1 Frequency Transition
P1.09
Range: 0.0 to 400.0 Hz
This parameter sets the frequency at which the AC drive changes deceleration rate
from Deceleration Time 2 (P1.06) to Deceleration Time 1 (P1.02).
1st Ed. Rev. D 05/2013
Frequency
Accel 2
Accel 1
P1.05
P1.01
On
Off
Frequency
Accel 2
P1.05
Accel 1
P1.01
DURA
Chapter 4: AC Drive Parameters
Default Setting: 00
Decel 2
Decel 1
P1.06
P1.02
Default Setting: 0.0
Decel 2
P1.06
Decel 1
P1.02
Default Setting: 0.0
PULSE AC Drive User Manual
Time
Decel 2 to Decel 1
Frequency Transition
P1.09
Time
4–21
