Appendix A: Accessories

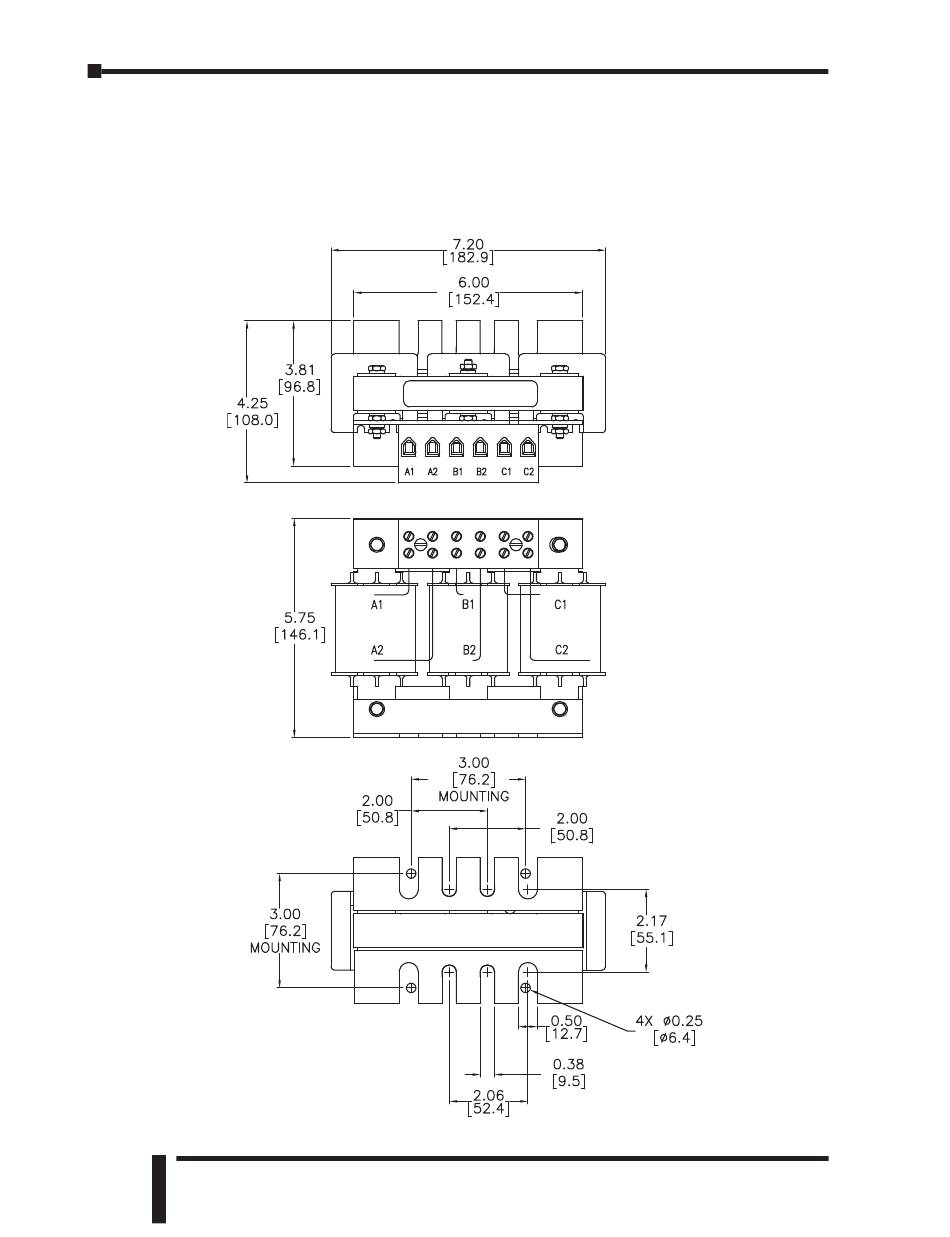

Line Reactor Dimensions – LR Series (continued)
LR-2010, LR-2015, LR-2020, LR-4025, LR-4030
Mounting feet with multiple mounting slots allow replacement of most other
reactors using existing mounting holes. Use four bolts to mount the LR reactors.
(Units = inches [mm])
A–10
DURA
PULSE
AC Drive User Manual
1st Ed. Rev. D
05/2013
