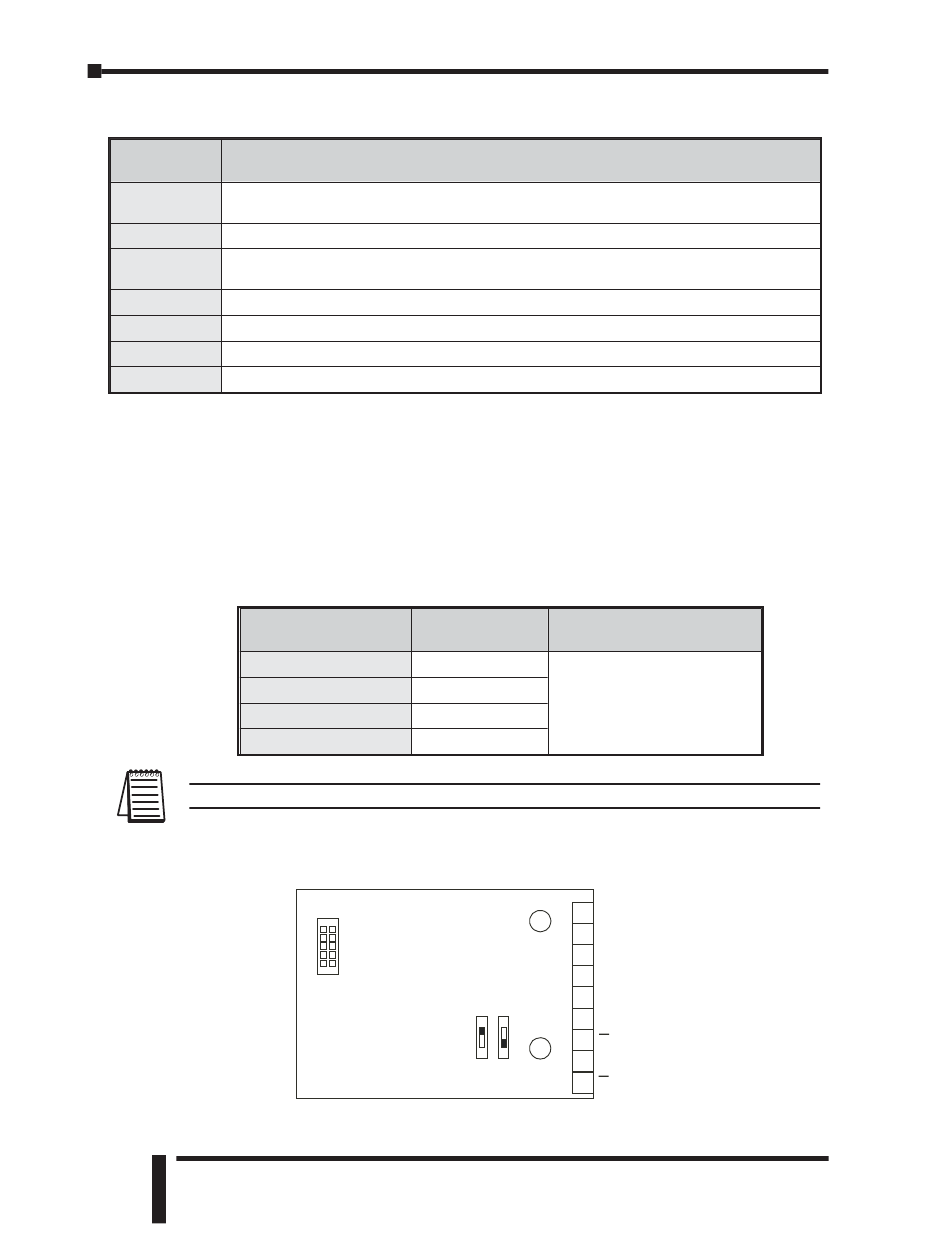

GS3-FB Terminal Descriptions Wiring Notes

Terminal
Symbols
Power source of GS3-FB (SW1 can be switched to 12V or 5V)
VP
Output Voltage: (+12VDC ±5% 200mA) or (+5VDC ±2% 400mA)
DCM
Power source (VP) and input signal (A, B) common
A, NOT A,
Input signal from Encoder. Input type is selected by SW2. Maximum 500kP/Sec
B, NOT B
A/O, B/O
GS3-FB output signal for use with RPM Meter. (Open Collector) Maximum DC24V 100mA
COM
GS3-FB output signal (A/O, B/O) common.
PG
Pulse generator or Encoder.
IM 3~
3-Phase motor
The control, power supply and motor leads must be laid separately. They must
not be fed through the same cable conduit / trunking.
1. Please use a shield cable to prevent interference. Do not run control wire parallel
to any high voltage AC power line (220V and up).
2. Connect shielded wire to Ground only.
3. Recommended wire size for shielded cable: AWG24 to AWG18
(0.21 to 0.81mm
4. Wire length:
Please refer to instructions supplied with product for additional installation information.
Control Terminals Block Designations
A–42 DURA
PULSE
)
2
Types of Encoders
Wire Length
Output Voltage
Open Collector
Line Driver 1000 ft (300m)
Complimentary
FJ1
Connect to GS3
series control board
GS3-FB
Select the power
source and output
of
Encoder
AC Drive User Manual
Descriptions
Maximum Wire Gauge at
Maximum Wire Length
165 ft (50m)
165 ft (50m)
AWG16 (1.25mm
230 ft (70m)
A/O
B/O
Wiring Terminals
COM
VP
SW1 SW2
DCM
OC 12V
A
A
B
5V
TP
B
2
) or larger
