Appendix B: Using DURA

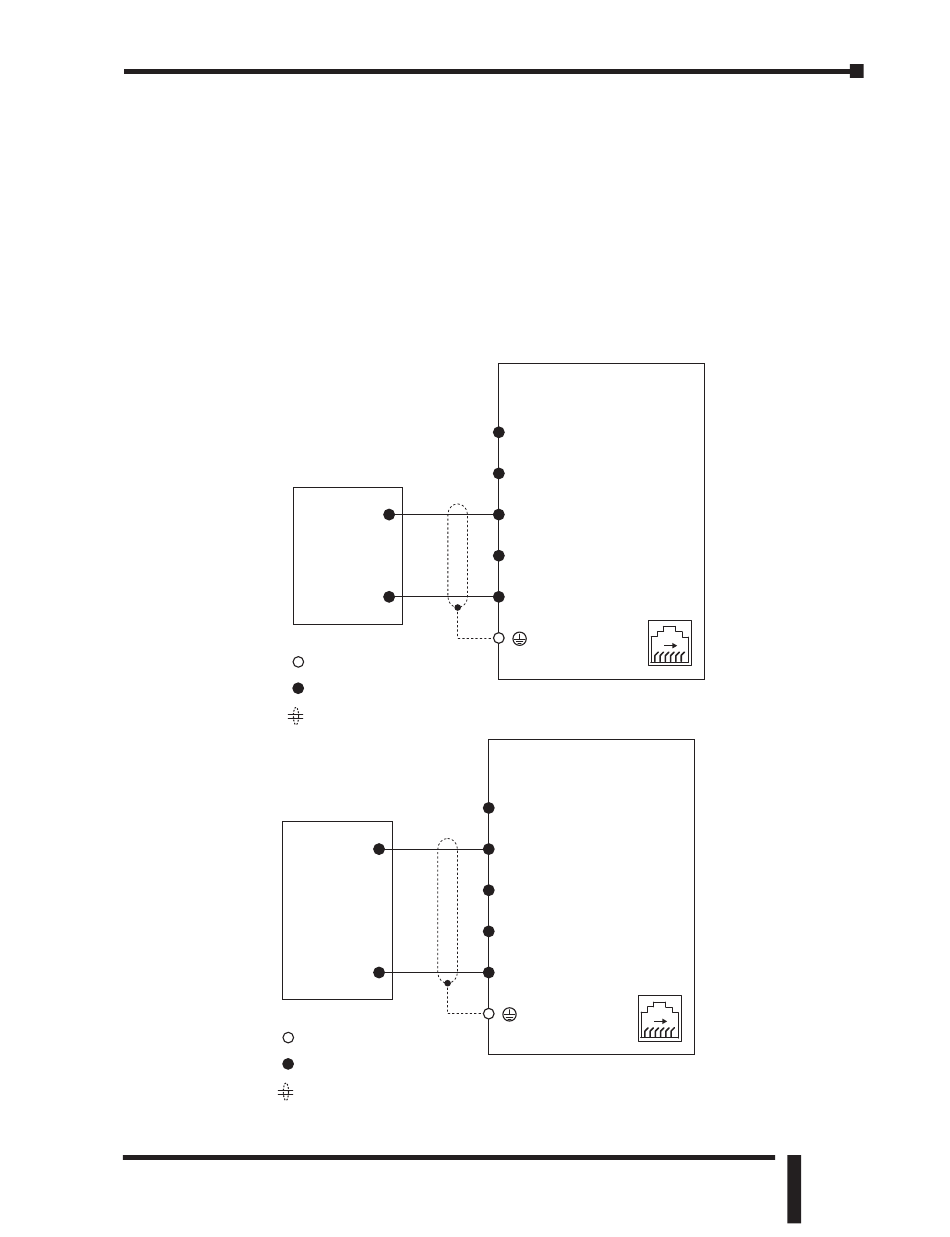

Typical PLC Connections to DURA
DirectLOGIC Voltage or Current Sourcing Analog Output Modules
• F0-04DAH-1
• F0-04DAH-2
• F0-08DAH-1
• F0-08DAH-2
• F0-2AD2DA-2
• F0-4AD2DA-1
• F0-4AD2DA-2
Analog Current Sourcing
Output Module
Analog Voltage
Output Module
0 - 10VDC
Main circuit (power) terminals
Control circuit terminal
Shielded leads
1st Ed. Rev. D 05/2013
PULSE
• F2-02DAS-1
• F2-02DAS-2
• F2-08DA-1
• F2-02DA-2
• F2-08DA-2
• F2-8AD4DA-1
• F2-8AD4DA-2
I (+)
4 - 20mA
I (–)
Main circuit (power) terminals
Control circuit terminal
Shielded leads
V (+)
V (–)
DURA
AC Drives with AutomationDirect PLCs
AC Drives (continued)
PULSE
GS3-xxxx
+10V Power Source
(20mA max.)
AI1
(0 to 10V)
AI2
(0-20mA or 4-20mA)
AI3
(-10 to +10V)
ACM
Analog Signal Com.
6
See Power
Wiring Diag.
GS3-xxxx
+10V Power Source
(20mA max.)
AI1
(0 to 10V)
AI2
(0-20mA or 4-20mA)
AI3
(-10 to +10V)
ACM
Analog Signal Com.
6
See Power
Wiring Diag.
PULSE AC Drive User Manual
• F4-08DA-2
• F4-16DA-2
• F4-04DAS-1
• F4-04DAS-2
• T1F-08DA-2
• T1F-16DA-2
• T1F-8AD4DA-1
• T1F-8AD4DA-2
1
1
B–13
